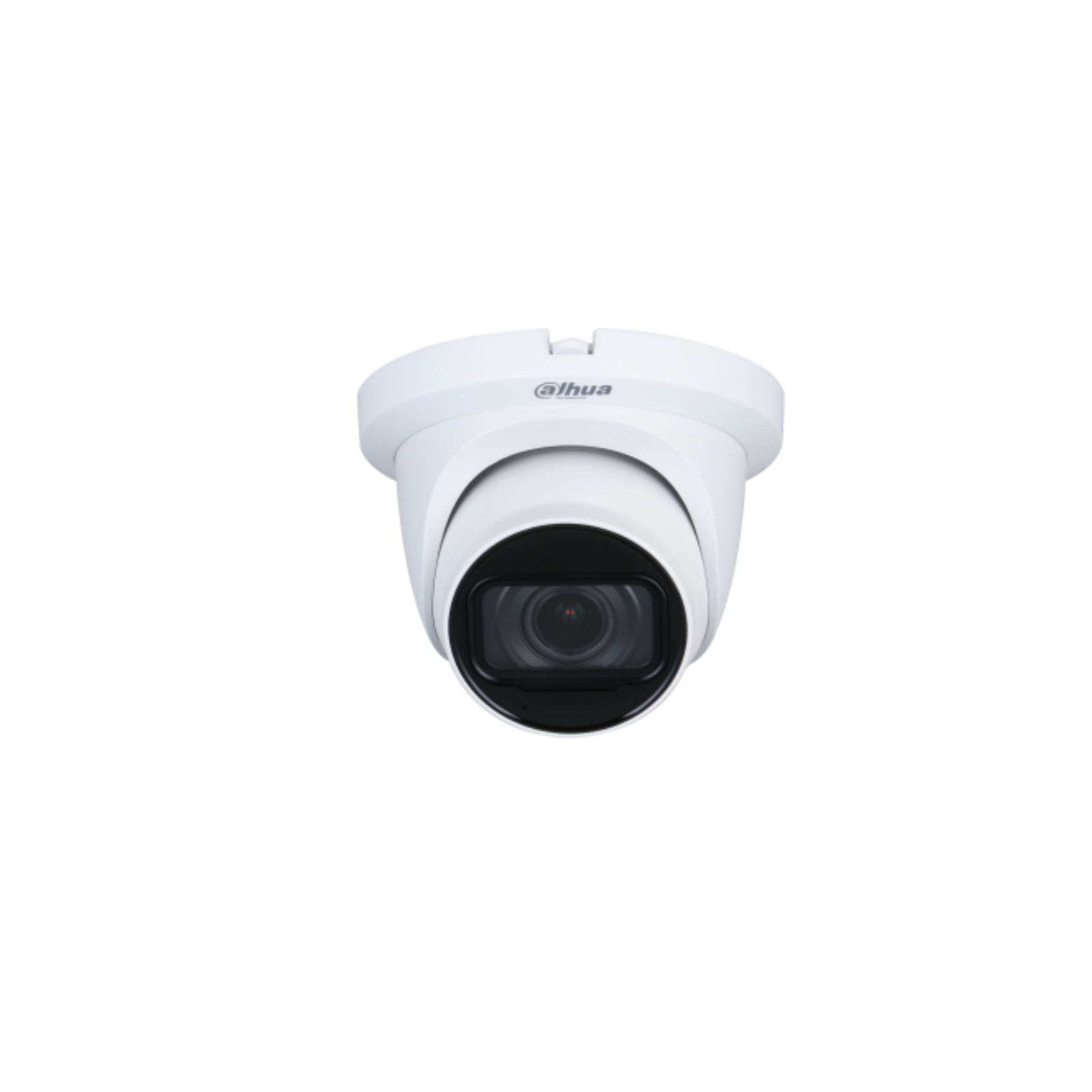

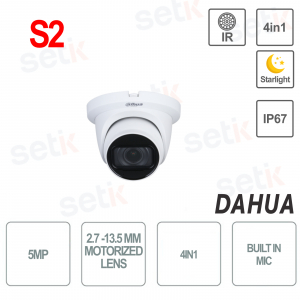

HAC-HDW2501TMQ-ZA-S2 outdoor camera with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG, 5Megapixel 5MP resolution, motorized 2.7-13.5mm lens and 1 / 2.7 "CMOS sensor with Starlight technology. Smart IR illuminator up to 60Meters , WDR 120dB , Day / Night (ICR), Audio and Microphone Input , IP67, BNC Video Output switchable via DIP switch, S2 version.
FIND INSTALLER
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DAHUA 5MEGAPIXEL EYEBALL 4IN1 MOTORIZED CAMERA - S2 VERSION - STARLIGHT IR 60METER AUDIO WDR
4in1: HDCVI / HDTVI / AHD / ANALOG - 5Megapixel 5MP - Motorized 2.7-13.5mm lens
1 / 2.7 CMOS sensor Starlight technology - Smart IR 60MT - WDR 120dB - IP67
Audio input + Microphone - BNC video output switchable via DIP switch - Power supply NOT included - S2 version - 24 month warranty
Product details
- IP67 protection (Rain / Diving)
- Quality Smart IR illuminator with a maximum range of 60 meters.
- Suitable for outdoor and indoor environments
Data sheet
| Model | HAC-HDW2501TMQ-ZA-S2 |
| Room | |
| Image Sensor | 1 / 2.7 "CMOS |
| Effective Pixels | 2880 (H) × 1620 (V) |
| Pixel | 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/3 s – 1 / 100,000 s NTSC: 1/4 s – 1 / 100,000 s |
| Min. Illumination | 0.001 Lux / F1.6; 30IRE; 0 Lux IR on |
| S / N Ratio | > 65dB |
| IR Distance | 60 m (196.9 ft) |
| IR On / Off Control | Car; manual |
| IR LEDs | 2 |
| Pan / Tilt / Rotation Range | Pan: 0 ° -360 ° Tilt: 0 ° -78 ° Rotation: 0 ° –360 ° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Auto Focus | Yes |
| Mount Type | φ14 |
| Focal Length | 2.7 mm – 13.5 mm |
| Max. Aperture | F1.6 |
| Field of View | Horizontal: 31.4 ° –113 ° Vertical: 17.6 ° –58 ° Diagonal: 36 ° –138 ° |
| Iris Type | Fixed iris |
| Close focus distance |
0.8 m (2.6 ft) |
| Video | |
| Frame Rate | CVI: PAL: 5M @ 25 fps; 4M @ 25 fps; 1080p @ 25 fps NTSC: 5M @ 25fps; 4M @ 30 fps; 1080p @ 30 fps AHD: PAL: 4M @ 25 fps NTSC: 4M @ 30fps TVI: PAL: 4M @ 25 fps NTSC: 4M @ 30fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day / Night | Auto switch by ICR |
| BLC | BLC / HLC / WDR / HLC-Pro |
| WDR | 120 dB |
| White Balance | Car; manual |
| Gain Control | Car; manual |
| Noise Reduction | 3D NR |
| Smart Illumination | Yes |
| Digital Zoom | 4x |
| Defog | Electronic defog |
| Mirror | Off / On |
| Privacy Masking | Off / On (8 areas, rectangle) |
| Certification | |
| Certifications | CE (EN55032: 2015, EN61000-3-2: 2014, EN61000-3-3: 2013, EN55024: 2010 + A1: 2015, EN55035: 2017, EN50130-4: 2011 + A1: 2014, EN623681: 2014 + A11: 2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 + CAN / CSA C22.2 No.60950-1) |
| Port | |
| Audio Interface | One channel built-in mic |
| Video Output | Video output choices of CVI / TVI / AHD / CVBS by one BNC port (DIP Switch) |
| Power | |
| Power Supply | 12V DC ± 30% |
| Power consumption | Max.7.9W (12V DC, IR on) |
| Environmental | |
| Operating Conditions |
–30 ° C to + 60 ° C (–22 ° F to + 140 ° F); <95% (non-condensation) |
| Strorage Conditions | –30 ° C to + 60 ° C (–22 ° F to + 140 ° F); <95% (non-condensation) |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Metal throughout the whole casing |

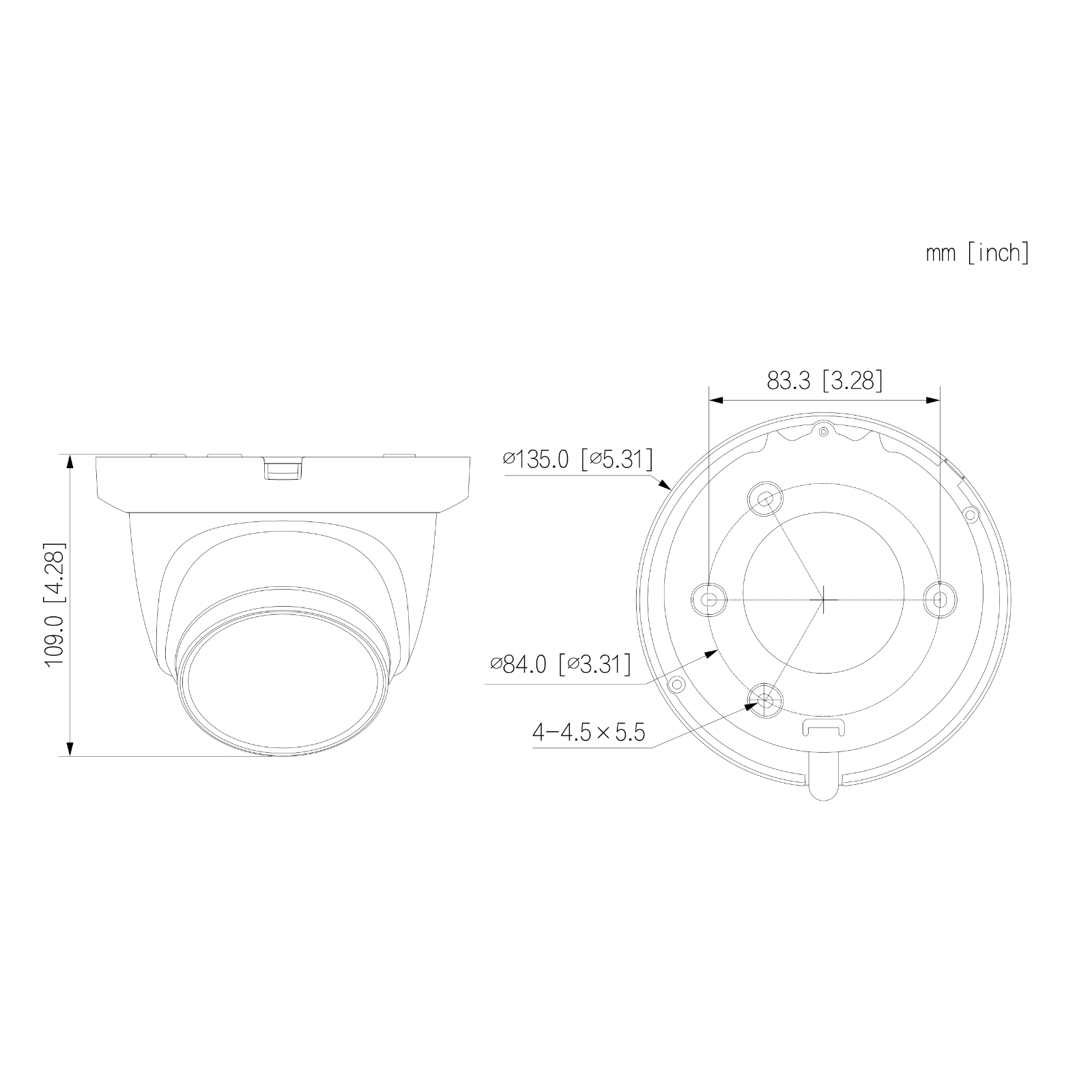

| Dimensions | φ135mm × 109mm (φ5.31 "× 4.28") |
| Net Weight | 0.53 kg (1.20 lb) |
| Gross Weight | 0.70 kg (1.51 lb) |
Further details
 |
This camera is a QUADRIBRID (4 Integrated Technologies) Switch Technologies: The camera can switch from HDCVI to HDTVI, AHD or Analog via dip switch on coaxial cable |
 |
5MP resolution, means 12 times the resolution of a common D1 camera : |
 |
This camera features 2.7-13.5mm varifocal lens with Motorized Zoom Video Example: |
|
|
1 / 2.7 "CMOS sensor with STARLIGHT technology. With this CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color
|
 |
Infrared illuminator with approximate maximum range of 60Mt |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
|
|
This camera has 1 audio input + built-in microphone |
 |
Allows you to adapt the lens to Night / Day vision
|
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) the compensation of light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations |
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
Protection level IP67 (Dust / Diving) |
 |
12VDC power supply not included  |
 |
This product is covered by a 24 month warranty. |
