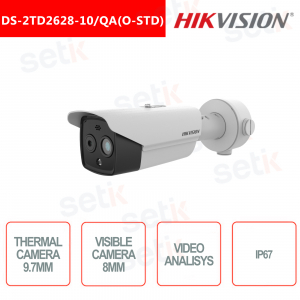

Hikvision Bi-spectrum Thermal Bullet Camera 9.7mm and Visible 8mm IP67 PoE Video Analysis

Hikvision Bi-spectrum Thermal Bullet Camera 9.7mm and Visible 8mm IP67 PoE Video Analysis
-35%

PoE IP camera Hikvision DS-2TD2628-10 / QA  Thermal DeepinView Bullet Thermal Camera NETD <40mk , Accuracy ± 8 ° C, for object temperature measurement and fire alarm .Dual-lens , double thermal optics (9.7mm) / visible 8mm and Dual-Sensor (1x Thermal Vanadium Oxide Uncooled Focal Plane Array + 1x CMOS 1 / 2.7 "). Resolution 2688 × 1520 for visible optics, H.265, 30MT IR LED, WDR 120dB, Alarm, Audio, RS485, MicroSD slot. IP67 protection, TVS6000.



Reference: DS-2TD2628-10/QA

Brand: Hikvision

FIND INSTALLER

€1,265.63

€1,947.12 -35%
taxes included
Tax included
 Available in 5 days


DS-2TD2628-10 / QA | IP CAMERA HIKVISION BULLET THERMAL CHAMBER FIRE PREVENTION NETD <40MK

IP PoE Thermal Camera Hikvision Bullet Thermal H.265 Camera
Thermal optics (9.7mm) - NETD <40mk (@ 25 ° C), Accuracy ± 8 ° C
Visible Optics (2688 × 1520, 8mm)
Video Analysis and Fire Detection - Audio / Alarm
MicroSD slot (not included) - IP67 and TVS6000V protection - Ideal for fire prevention
Thermal Sensing: What is it?

Any object with a temperature above absolute zero (-273.15 ° C) emits radiation. Infrared radiation lies between the visible spectrum (0.4-0.75um) and microwaves (> 15um). Even if we cannot see them, we perceive them every day: the sun and fire are sources of infrared radiation that we can perceive through heat. Image quality depends on the temperature difference and higher differentials produce better images. Here's how we distinguish the temperature difference in thermal imaging.

DS-2TD2617-3 / V1_BANNER

DS-2TD2628-10 / QA  Hikvision GPU equipped thermal IP bullet camera supporting intelligent behavioral analysis algorithm, capable of real-time high-precision VCA detection and alarm. Ideal for perimeter defense and fire prevention within critical infrastructures such as: communities, villas, construction sites, factories. The alarm prevention system will help you to immediately detect unexpected events and protect you from property loss.

Smart functions (thermal images):

  • Leading image processing technology: Adaptive AGC, 3D DNR, NETD below 40mk (25 ° C), F # = 1.0
  • Powerful behavioral analysis function, based on deep learning algorithm: Line crossing, Intrusion, Region of entry and exit
  • Reliable alarm function for temperature exception
  • Advanced algorithm for fire detection
  • Bi-spectrum image fusion, picture-in-picture vision

Thermal imaging module:

  • Sensor resolution 256 × 192 , high sensitivity sensor, supports contrast adjustment
  • Adjustable shutter in various ways
  • 3D DNR, 15 adjustable color schemes (palettes), image detail emphasis
  • Mirror image, x2, x4 digital zoom and local output

Watch the video!

PoE (Power Over Ethernet):
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.

Optics on board:
This thermal camera features optics:

- Thermal optics with 256 × 192 resolution from 9.7mm

-Traditional optics with resolution up to 2688 × 1520 with 8mm fixed lens

Bi-spectrum fusion:
Possibility of vision in thermal, traditional, thermal / traditional Bi-Spectrum fusion or picture in picture mode (thermal vision in optical vision). In these last two modes, the details of the images will be clearer even if overlaid, useful as evidence when necessary. The preview in these cases also reduces the bandwidth and there is no need to switch from thermal to optical or vice versa.

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 30M

Thermal Optics, NETD and Accuracy:
The thermal module is composed of a Vanadium Oxide Uncooled Focal Plane Arrays image sensor , with a resolution of 256 × 192 and a focal length of 9.7mm.

Features NETD below 40mk with accuracy ± 8 ° C accuracy
Visual spectrum : 8? M to 14? M

Clear and sharp images:
With advanced features like Automatic Gain Control (AGC), Digital Detail Enhancement and 3DDNR, Hikvision thermal cameras deliver crystal clear thermal images unmatched in the industry.

DS-2TP21B-6AVFW_clearimage
Video Analysis (VCA):

It has 4 types of VCA rules ( Line crossing, Intrusion, Incoming region, Outgoing region ), up to 8 VCA rules.

Fire Detection:

Ideal camera for fire detection.
Dynamic detection of focus points.


Alarm:

2 alarm inputs (0-5vDC) and 2 relay outputs , configurable alarm response action.
Alarm Actions: SD Record, Relay Out, Smart Capture, FTP Upload, Email Link

Audio:

1 audio interface 3.5 Microphone / Line in. Line input: 2-2.4V [pp], output impedance: 1K? ± 10%
Audio output: Linear levers; Impedance 600?

Archiving:

Equipped with MicroSD slot. Support Micro SD / SDHC / SDXC card (up to 256GB), support manual / alarm recording

Installation environments:

Thermal cameras can be used in various scenarios.
This camera in particular is ideal for fire prevention purposes, in indoor spaces such as: engine room, ATM, conference halls, warehouses, museums, train stations, jewelers, power stations, etc.

IP67 protection:

Protection level IP67 (Rain / Dust) and TVS 6000V (lightning)

Data sheet

DS-2TD2628-10 / QA
Room
Thermal Module






Image sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 256 × 192
Pixel Interval 12 μm

Response waveband

8 μm to 14 μm
NETD <40 mK (25 ° C, F1.0)
Lens (Focal Length) 9.7 mm
MRAD 1.24 mrad
Field Of View 18.0 ° (H) x13.5 ° (V)
Min. Focusing Distance 1.5 m
Digital zoom x2, x4
Openings F1.0
Optical Module Max. Image Resolution 2688 × 1520
Image Sensor 1 / 2.7 "Progressive Scan CMOS
Min illumination Color: 0.0176 Lux @ (F2.25, AGC ON), B / W: 0.0035 Lux @ (F2.25, AGC ON)

Shutter speed

1s to 1 / 100,000s

Lens (Focal Length) 8 mm
Field of View 39.4 ° (H) x22.1 ° (V)
Aperture (Range) F1.6
WDR 120 dB
Image Effect Target Coloration Yes. Supported in white hot and black hot mode.
Illuminator IR Distance Up to 30 m
IR Intensity And Angle Automatically adjusted
Audible And Visual Alarm White Light Range Up to 30 m
Visual Alarm Yes. White light alarm with adjustable flashing frequencies
Audio Alarm Yes, for two types of audible alarm (VCA and Temperature Exception)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
Smart Function

VCA (Video Content Analysis)

4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Temperature Measurement

3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)

Temperature Range

-20 ° C to 150 ° C (-4 ° F to 302 ° F)

Accuracy temperatures

± 8 ° C (± 14.4 ° F)

Video and audio Main Stream

Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical:
50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream Thermal:
25 fps (704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60Hz: 30fps (704 × 480, 352 × 240)
Video Compression

Main Stream: H.265 / H.264
Sub-Stream: H.265 / H.264 / MJPEG

Audio Compression G.722.1 / G.711ulaw / G.711alaw / MP2L2 / G.726 / PCM
Network


Protocols IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP, SRTP
Network Storage MicroSD / SDHC / SDXC card (up to 256 G) local storage, NAS (NFS, SMB / CIFS), Auto Network Replenishment (ANR)
API ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
Simultaneous Live View Up to 20 channels
User / Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
Client iVMS-4200, Hik-Connect
Web Browser

Live view (plug-in allowed): Internet Explorer 11
Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 +
Local service: Chrome 57.0 +, Firefox 52.0 +

Interface Alarm Input 2, alarm input (0-5 VDC)
Alarm Output 2, alarm output (alarm response actions configurable)
Alarm Action SD recording / Relay output / Smart capture / FTP upload / Email linkage
Audio Input 1, 3.5 mm Mic in / Line in interface

Line input: 2 to 2.4 V [pp], output impedance: 1 KΩ ± 10%

Audio Output Linear level, impedance: 600 Ω
Communication Interface

1, RJ45 10M / 100M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)

Analog Output 1.0V [pp] / 75Ω, PAL / NTSC / BNC
General


Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply

24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block
PoE (802.3af, class 3)

Power Consumption

24 VAC ± 25%: 0.8 A, Max 8.5 W
12 VDC ± 25%: 0.7 A, Max 8.5 W
PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max.8.5 W

Working Temperature / Humidity

Temperatures: -40 ° C to 65 ° C (-40 ° F to 149 ° F)
Humidity: 95% or less

Protection level

IP67 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection

Dimensions 321.3 mm × 106.1 mm × 107.0 mm (12.65 "× 4.18" × 4.21 ")
Weight 1550 g (3.41 lb)

Further details

No additional details

Download

Download the English brochure
