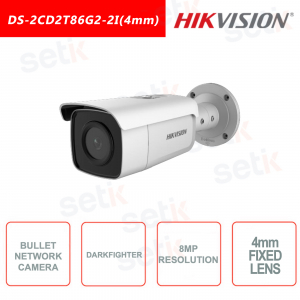

Network Bullet Camera DarkFighter Hikvision DS-2CD2T86G2-2I (4mm) IP PoE outdoor with resolution up to 8MP 4K UltraHD , 4mm Fixed Lens, 1 / 1.8 "progressive scan CMOS sensor, H.265 + . Day & Night (ICR), illuminator IR 60M, DARKFIGHTER (STARLIGHT) , Micro SD Slot ( UP 256GB - NOT INCLUDED), Triple Stream, Face Detection , ROI, WDR 120dB, BLC, HLC, 3D DNR, AGC, Motion Detection, Hik-connect, reset button, IP67 protection, Coaxial Power Plug.
FIND INSTALLER
https://www.setik.biz/en/cameras/7651-hikvision-ds-2cd2t86g2-2i4mm-hikvision-network-bullet-camera-darkfighter-4mm-optic-ip67-h265-.html
€384.61
€591.70 -35%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
DS-2CD2T86G2-2I (4mm) | HIKVISION IP POE 8.0 MP 4MM OUTDOOR BULLET NETWORK CAMERA H.265 + IR 60 METERS
Network Bullet Camera DarkFighter Hikvision DS-2CD2T86G2-2I (4mm) IP PoE outdoor with resolution up to 8MP 4K UltraHD , 4mm Fixed Lens, 1 / 1.8 "progressive scan CMOS sensor, H.265 + . Day & Night (ICR), illuminator IR 60M, DARKFIGHTER (STARLIGHT) , Micro SD Slot ( UP 256GB - NOT INCLUDED), Triple Stream, Face Detection , ROI, WDR 120dB, BLC, HLC, 3D DNR, AGC, Motion Detection, Hik-connect, reset button, IP67 protection, Coaxial Power Plug. - 24 months warranty
| POE (Power Over Ethernet): The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
| DARKFIGHTER technology: Darkfighter technology allows color shooting even with very low brightness, thus avoiding switching to black and white vision. A benefit of no small importance for the Local Police, often called upon to "decipher" images that are not very clear and in black and white.  |
| Resolution: This camera features 8.0MP 8MP resolution in real time! (3840x2160) 1 / 1.8 ”progressive scan image sensor. |
| Optics: This camera features a 4mm fixed lens |
Compression H.265 +
A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
IR Infrared Illuminator: |
HIK-CONNECT Hik Connect allows you to control the device remotely
|
| ROI (Region Of Interest): The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
| Day / Night: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
MICRO SD SLOT: 256GB Micro SD slot for digital storage ( NOT INCLUDED ) |
| BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
| AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
| ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
3D- DNR: |
| Diet: A 12V DC power supply is required for the operation of this camera (not included)  |
| IP67 protection: Protection from dust and temporary immersions. Suitable for outdoor environments. |
Data sheet
| DS-2CD2T86G2-2I (4mm) | |
| Room | |
| Image Sensor | 1 / 1.8 "Progressive Scan CMOS |
| Min Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B / W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1 / 100,000 s |
| Slow Shutter | Yes |
| P / N | P / N |
| Wide Dynamic Range | 120 dB |
| Day & Night | ICR Cut |
| Angle Adjustment | Pan: 0 ° to 360 °, tilt: 0 ° to 90 °, rotate: 0 ° to 360 ° |
| Lens | |
| Lens Type & FOV | 4 mm, horizontal FOV 87 °, vertical FOV 47 °, diagonal FOV 102 ° |
| Openings | F1.6 |
| Lens Mount | M12 |
| Iris Type | Fixed |
| ILLUMINATOR | |
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR Range | up to 60 m |
| IR Wavelength | 850 nm |
| VIDEO | |
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360) 60Hz: 30fps (640 × 480, 640 × 360) |
| Third Stream | 50Hz: 10fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60Hz: 10fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) * Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265 / H.264 / H.264 + / H.265 + Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264 * Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| H.265 Type | Main Profile |
| H.264 + | Main Stream supports |
| H.265 + | Main Stream supports |
| Bit Rate Control | CBR / VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protocols | TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL / TLS, PPPoE, SNMP , ARP |
| User / host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP / HTTPS, TLS 1.1 / 1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | MicroSD / SDHC / SDXC card (256 GB) local storage, and NAS (NFS, SMB / CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10+ Free live view plug-in: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| IMAGE | |
| Image Parameters Switch | Yes |
| SNR | ≥ 52 dB |
| Target Cropping | Yes |
| Day / Night Switch | Day, Night, Auto, Schedule |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Image Enhancements | BLC, HLC, 3D DNR |
| INTERFACE | |
| On-Board Storage | Built-in micro SD slot, up to 256GB |
| Hardware Reset | Yes |
| Ethernet Interface | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| EVENT | |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Scene change detection |
| DEEP LEARNIG FUNCTIONS | |
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection Supports human and vehicle targets classification |
| General | |
| Linkage Method | Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger recording, trigger capture |
| Firmware Version | V5.5.112 |
| Software Reset | Yes |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Web Client Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Storage Conditions | -30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3 |
| Power Consumption and Current | 12 VDC, 0.63 A, max. 7.5 W PoE (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9 W |
| Camera Material | Metal |
| Camera Dimensions | Ø 105 mm × 290 mm (Ø 4.1 "× 11.4") |
| Package Dimensions | 386 mm × 156 mm × 155 mm (15.2 "× 6.1" × 6.1 ") |
| Camera Weight | Approx. 1270 g (2.8 lb.) |
| With Package Weight | Approx. 1510 g (3.3 lb.) |
| APPROVAL | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS / NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013) |
| Environment | CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
Further details
Download
Download the English brochure
