Telecamera termica da esterno dome Dahua Serie Eureka TPC-DF1241-B3F4-DW-S2Dual-Lens, ottica termica da 3.5mm + ottica visibile da 4mm , sensore CMOS da 4MP,  Illuminatore IR maggiore di 30mt, 1x ingresso + 1x uscita Audio, 1x ingresso + 1x uscita Allarme, BLC, HLC, 2D/3D-DNR, DWDR, AGC, day/night, RS-485, 1 slot microSD-Card, ROI, Funzioni intelligenti, Allarme incendio, riconoscimento veicoli e persone, rilevamento intrusione. Onvif e PoE, IP67. VERSIONE S2



Reference: TPC-DF1241-B3F4-DW-S2

Brand: Dahua

FIND INSTALLER

€752.72

€1,792.18 -58%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


HYBRID THERMAL DOME CAMERA WITH DOUBLE OPTICS, VIDEO ANALYSIS AND FIRE ALARM - EUREKA SERIES

Made by Setik

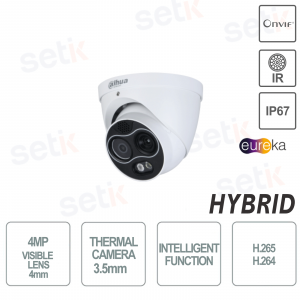

Dahua TPC-DF1241-B3F4-DW-S2 outdoor thermal dome camera
Dual-Lens , 3.5mm thermal optics + 4mm visible optics, 4MP CMOS sensor , IR illuminator <30mt
1x input + 1x Audio output, 1x input + 1x Alarm output, RS-485, 1 microSD-Card slot up to 256Gb (not included), ROI, BLC, HLC, 2D / 3D-DNR, DWDR, AGC, day / night
Smart functions , fire detection function , vehicle and person recognition, intrusion detection - Onvif and PoE, IP67e - 24 month warranty
THERMAL DETECTION


Product details

Telecamera Videosorveglianza IP Dome Motorizzata Termica Dual-Lens 1080P
  • Hybrid Thermal Motorized Speed Dome Camera - Dahua
  • Dual-Lens technology, dual 3.5mm thermal / 4mm visible optics
  • 4MP CMOS sensor
  • Resolution 256 x 192 (thermal optics) / 2336 × 1752 ( visible optics )
  • Visual spectrum from 8 to 14? M
  • Integrated Video Analysis (Line Crossing, Intrusion, Object Detection (People / Vehicles), Fire Detection & Smoke Detection Alarm, etc.)
  • Sensitivity 50mK
  • ROI, Motion Detection, BLC, HLC, 2D / 3D-DNR, DWDR, AGC, day / night
  • IR illuminator up to 30 meters
  • 1 inputs and 1 alarm output
  • 1 audio input and 1 audio output
  • 1 microSD-Card slot up to 256GB
  • PoE protocol
  • Power supply NOT included
  • Dimensions 122 mm × 122 mm × 112 mm (4.8 "× 4.8" × 4.41 ")
  • Material: Metal
  • 24 months warranty

Data sheet

Model TPC-DF1241-B3F4-DW-S2
Thermal Camera
Sensor Type Vanadium Oxide Uncooled FPA
Effective Pixels 256 x 192
Pixel Size 12um
Thermal Sensitivity <50mK (@ f / 1.0, 25Hz, 300K)
Spectral Range 8 ~ 14um
Focus Length 3.5mm

Effective Distance

Man (1.8m * 0.5m):

Detection: 146m
Recognition: 38m
Identification: 19m

Vehicle (4.0m * 1.4m):

Detection: 389m
Recognition: 97m
Identification: 49m

Openings F 1.0
Digital Detail
Enhancement (DDE)
Yes
Digital Zoom 16 ×
AGC Car; Manual
Noise Reduction 2D NR; 3D NR
Image Flip 90 °; 180 °; 270 °
Color Palettes 18 (Whitehot / Blackhot / Ironrow / Icefire / Fusion / Rainbow / Globow / Iconbow1 / Iconbow2, etc.)
Fusion Mode 3 (Warm color; cool color; Ironred)
Visible Camera
Image Sensor 1 / 2.7 '' 4MP CMOS
Effective Pixels 2336 × 1752
Electronic Shutter Speed 1 / 30,000 s – 1 s

Minimum Illumination

Color: 0.05 lux
Black & white: 0.005 lux
0 lux (IR on)

IR Distance

≥30 m (98.43 ft)

IR On / Off Control

Auto / Manual

Focus Length 4 mm

Max Aperture

F 1.6

Field Of View

H: 71.2 ° V: 52 ° D: 92.6 °

Focus control

Fixed
Close Focus Distance 1.0 m (0.98 ft)
Day / Night Auto (ICR); Color and B / W
BLC Yes
WDR DWDR
HLC Yes
White Balance Car; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural
AGC Car; Manual
Noise Reduction 2D NR; 3D NR
S / N Ratio ≥ 55 dB
Region of Interest (RoI) Yes
Image Flip 90 °; 180 °; 270 °
Exposure Compensation Yes
Intelligence
General Intelligence Tripwire; Intrusion
Advanced Intelligence Fire Detection & Alarm Cold & Hot Spot Trace Human & Vehicle Classification Smoking Detection Call Detection
Video and Audio
Video Compression H.265; H.264M; H.264H; H.264B; MJEPG
Resolution Thermal: Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192; 1280 × 960 (by default) Sub Stream: VGA (640 × 480); 256 × 192; 256 × 192 (by default)
Visual: Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (by default) Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default)
Frame Rate

Thermal 50 Hz: (main stream) 1 fps – 25 fps adjustable, 25 fps by default; (sub stream) 1 fps – 25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps – 30 fps adjustable, 30 fps by default; (sub stream) 1 fps – 30 fps adjustable, 15 fps by default
Visual 50 Hz: (main stream) 1 fps – 25 fps adjustable, 25 fps by default; (sub stream) 1 fps – 25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps – 30 fps adjustable, 30 fps by default; (sub stream) 1 fps – 30 fps adjustable, 15 fps by default

Audio Compression G.711a; G.711mu; PCM
Network
Protocol HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4 / v6; SNMP; QoS; UPnP; NTP
Edge Storage Micro SD card (256G)
Interoperability ONVIF®; CGI
Browser IE: IE8 and the later, and explorer with IE core
Google: 42 and the earlier
Firefox: 42 and the earlier
User / Host 10
Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
Certification
Certifications CE: EN55032: 2015; EN61000-3-2: 2014
FCC: CFR 47 FCC Part15 subpart B; ANSI C63.4-2014
Port
Network 1 10M / 100M Ethernet port (RJ-45)
Audio Input 1
Audio Output 1
Alarm Input 1
Alarm Output 1
RS-485 1
Power
Power Supply 12 VDC, 1.2 A (± 20%) PoE
Power Consumption Basic: <6.5 W (LED off)
Max: <13 W (LED on, heater on)

Environment

Operating Temperature –30 ° C to +50 ° C (–22 ° F to +122 ° F)
Storage Temperature –30 ° C to +70 ° C (–22 ° F to ﹢158 ° F)
Operating Humidity ≤ 95%
Protection IP67, anti-surge 6kV, anti-elctrostatic 6kV (touched by objects), anti-elctrostatic 8KV (air)
Structure
Product Dimensions 122 mm × 122 mm × 112 mm (4.8 "× 4.8" × 4.41 ")
Packaging Dimensions 155 mm × 155 mm × 135 mm (6.10 "× 6.10" × 5.31 ")
Net Weight ≤ 0.85 kg (1.87 lb)
Gross Weight ≤ 1 kg (2.20 lb)

Further details

Thermal Camera ... what is it? and how to choose it?

Read our article!

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera is a THERMAL CAMERA .


Sensitivity <50mK

Visual spectrum from 8 to 14µm

Dual-Lens Technology!
This camera is equipped with 2 lenses , one 3.5mm thermal and one 4mm visible


PoE power supply

The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.

This camera features SMART DETECTION
- Line crossing

- Intrusion

- Person / Vehicle Classification

- Smoke Detection

- Detection of hot and cold areas

- Fire & alarm detection

This camera can detect the presence of fire

This camera has 1 BNC Video Output

Full HDThis camera with 1 inputs and 1 alarm output
Ingresso Audio This camera has 1 inputs + 1 audio output
Protezione IP67 contro polveri e immersioni IP67: Guarantees protection from dust and water jets (rain)
Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
Funzione DWDR

D-WDR (Digital Wide Dynamic Range)

D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations

Funzione ROI This camera is equipped with the ROI function.

The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Funzione Motion Detection This camera features the Motion function by connecting it to a recording device having alarm inputs.
MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256Gb (Not Included)

This camera was made of metal

Dual Encoding This product is covered by a 24 month warranty.

Download

Download the English brochure
Telecamera IP  Dome Motorizzata Ibrida Termica Dual-Lens
