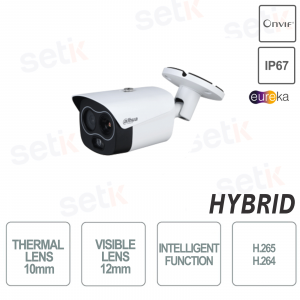

Hybrid Thermal Bullet Camera Eureka Series 4MP Artificial Intelligence Onvif PoE Dahua

Hybrid Thermal Bullet Camera Eureka Series 4MP Artificial Intelligence Onvif PoE Dahua
-58%

Onvif PoE outdoor thermal camera Bullet Dahua Eureka Series TPC-BF1241-B10F12-DW-S2 , Dual-Lens , 10mm thermal optics + 12mm visible optics , 4MP CMOS sensor , 30mt IR illuminator , 1x input + 1x Audio output , 1x input + 1x alarm output, BLC, HLC, 2D / 3D-DNR, DWDR , AGC, day / night, RS-485, 1 microSD-Card slot, ROI, Smart functions , Fire alarm , vehicle and person recognition, intrusion detection IP67. S2 VERSION



Reference: TPC-BF1241-B10F12-DW-S2

Brand: Dahua

FIND INSTALLER

€836.24

€1,991.04 -58%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


HYBRID THERMAL BULLET CAMERA WITH DOUBLE OPTICS, VIDEO ANALYSIS AND FIRE ALARM - S2 VERSION - EUREKA SERIES

Made by Setik
Onvif PoE outdoor thermal camera Bullet Dahua TPC-BF1241-B10F12-DW-S2
Dual-Lens , 10mm thermal optics + 12mm visible optics, 4MP CMOS sensor , 30mt IR illuminator
1x input + 1x Audio output, 1x input + 1x Alarm output, RS-485, 1 microSD-Card slot up to 256Gb (not included), ROI, BLC, HLC, 2D / 3D-DNR, DWDR, AGC, day / night
Smart functions , fire detection function , vehicle and person recognition, intrusion detection - IP67 - 24 month warranty
THERMAL DETECTION


Product details

Telecamera Videosorveglianza IP Dome Motorizzata Termica Dual-Lens 1080P
  • Hybrid Thermal Bullet Camera - Dahua
  • Dual-Lens technology, dual 10mm / 12mm visible thermal optics
  • 4MP CMOS sensor
  • Resolution 256 x 192 (thermal optics) / 2336 × 1752 ( visible optics )
  • Visual spectrum from 8 μm – 14 μm
  • Integrated Video Analysis (Line Crossing, Intrusion, Object Detection (People / Vehicles), Fire Detection & Smoke Detection Alarm, etc.)
  • Sensitivity 50mK
  • ROI, Motion Detection, BLC, HLC, 2D / 3D-DNR, DWDR, AGC, day / night
  • IR illuminator up to 30 meters
  • 1 inputs and 1 alarm output
  • 1 audio input and 1 audio output
  • 1 microSD-Card slot up to 256GB (Not Included)
  • PoE protocol
  • Power supply NOT included
  • Dimensions 205.5 mm × 90.4 mm × 90.1 mm (8.09 '' × 3.56 '' × 3.55 '')
  • 24 months warranty

Data sheet

Model TPC-BF1241-B10F12-DW-S2
Thermal Camera
Detector Type Vanadium Oxide Uncooled FPA
Max. Resolution 256 × 192
Pixel Pitch 12 μm
Spectral Range 8 μm – 14 μm
Thermal Sensitivity <50mK (@ f / 1.0, 25Hz, 300K)
Focus Length 10mm

Field Of View

H: 17.3 °, V: 13.1 °
Close focus distance 2.0 m (6.56 ft)
Effective Distance Human
(1.8mx 0.5m)
D: 417 m (1,368 ft)
R: 107 m (351 ft)
I: 54 m (177 ft)
Effective Distance Vehicle
(4.0mx 1.4m)
D: 1,111 m (3,645 ft)
R: 278 m (912 ft)
I: 139 m (456 ft)
Openings F1.0
Digital Detail Enhancement (DDE) Yes
Digital Zoom 16 ×
AGC Car; Manual
Noise Reduction 2D NR; 3D NR
Image Flip 90 °; 180 °; 270 °
Color Palettes 18 (Whitehot; Blackhot; Ironrow; Icefire; Fusion; Rainbow; Globow; Iconbow1; Iconbow2, etc.)
Fusion Mode 3 (Warm color; Cool color; Ironred)
Visible
Image Sensor 1 / 2.7 '' CMOS
Max. Resolution 2336 × 1752
Pixel 4 MP
Electronic Shutter Speed 1 / 30,000 s – 1 s

Minimum Illumination

Color: 0.05 lux Black & white: 0.005 lux 0 lux (IR on)

IR Distance

≥ 30 m (98.43 ft)

IR On / Off Control

Car; Manual

Focus Length 12mm

Max Aperture

F2.0

Field Of View

H: 22 °
V: 16.6 °
D: 26.9 °

Focus control

Fixed
Close Focus Distance 2.5 m (8.2 ft)
Day / Night Auto (ICR); Color and B / W
BLC Yes
WDR DWDR
HLC Yes
White Balance Car; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural
AGC Car; Manual
Noise Reduction 2D NR; 3D NR
S / N Ratio ≥ 55 dB
Region of Interest (RoI) Yes
Image Flip 90 °; 180 °; 270 °
Exposure Compensation Yes
Intelligence
General Intelligence Tripwire; Intrusion
Advanced Intelligence Fire Detection & Alarm Cold & Hot Spot Trace Human & Vehicle Classification Smoking Detection Call Detection
Video and Audio
Video Compression H.265; H.264M; H.264H; H.264B; MJEPG
Resolution Thermal: Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192; 1280 × 960 (by default) Sub Stream: VGA (640 × 480); 256 × 192; 256 × 192 (by default)
Visual: Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (by default) Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default)
Frame Rate

Thermal 50 Hz: (main stream) 1 fps – 25 fps adjustable, 25 fps by default; (sub stream) 1 fps – 25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps – 30 fps adjustable, 30 fps by default; (sub stream) 1 fps – 30 fps adjustable, 15 fps by default
Visual 50 Hz: (main stream) 1 fps – 25 fps adjustable, 25 fps by default; (sub stream) 1 fps – 25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps – 30 fps adjustable, 30 fps by default; (sub stream) 1 fps – 30 fps adjustable, 15 fps by default

Audio Compression G.711a; G.711mu; PCM
Network
Protocol HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4 / v6; SNMP; QoS; UPnP; NTP
Edge Storage Micro SD card (256G)
Interoperability ONVIF®; CGI
Browser IE: IE 8 and later
Google: 42 and earlier
Firefox: 42 and earlier
User / Host 10
Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
Certification
Certifications CE: EN55032: 2015; EN61000-3-2: 2014
FCC: CFR 47 FCC Part15 subpart B; ANSI C63.4-2014
Port
Network One 10/100 M Ethernet port (RJ-45)
Audio Input 1
Audio Output 1
Alarm Input 1
Alarm Output 1
RS-485 1 Pair
Power
Power Supply 12 VDC (± 20%) PoE
Power Consumption Basic: <8 W (LED off)
Max: <14 W (LED on, heater on)

Environment

Operating Temperature –30 ° C to +50 ° C (–22 ° F to +122 ° F)
Storage Temperature –30 ° C to +70 ° C (–22 ° F to ﹢158 ° F)
Operating Humidity ≤ 95%
Protection P67; anti-surge 6 kV; anti-elctrostatic 6 kV (touched by objects); anti-elctrostatic 8 kV (air)
Structure
Product Dimensions 205.5 mm × 90.4 mm × 90.1 mm (8.09 '' × 3.56 '' × 3.55 '')
Packaging Dimensions 279 mm × 187 mm × 138 mm (10.98 '' × 7.36 '' × 5.43 '')
Net Weight ≤ 0.9 kg (1.98 lb)
Gross Weight ≤ 1.3 kg (2.87 lb)

Further details

Thermal Camera ... what is it? and how to choose it?

Read our article!

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera is a THERMAL CAMERA .


Sensitivity <50mK

Visual spectrum from 8 to 14µm

Dual-Lens Technology!
This camera is equipped with 2 optics , one 10mm thermal and one 12mm visible


PoE power supply

The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.

This camera features SMART DETECTION
- Line crossing

- Intrusion

- Person / Vehicle Classification

- Smoke Detection

- Detection of hot and cold areas

- Fire & alarm detection

This camera can detect the presence of fire

Full HDThis camera with 1 inputs and 1 alarm output
Ingresso Audio This camera has 1 inputs + 1 audio output
Protezione IP67 contro polveri e immersioni IP67: Guarantees protection from dust and water jets (rain)
Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
Funzione DWDR

D-WDR (Digital Wide Dynamic Range)

D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, number plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations

Funzione ROI This camera is equipped with the ROI function.

The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Funzione Motion Detection This camera features the Motion function by connecting it to a recording device having alarm inputs.
MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256Gb (Not Included!)

Dual Encoding This product is covered by a 24 month warranty.

Download

Download the English brochure
