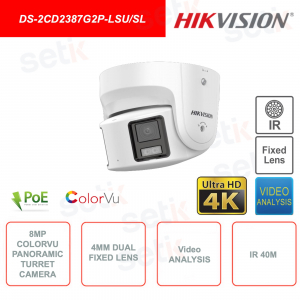

Turret ColorVu 8mp IP PoE Camera - Fixed - Double lens 4mm - IR40m

Turret ColorVu 8mp IP PoE Camera - Fixed - Double lens 4mm - IR40m
IN PROMOTION -35%

Hikvision ColorVu | DS-2CD2387G2P-LSU / SL - PoE IP fixed turret camera for outdoor - 8MP - Dual 4mm lens - 2x1 / 1.8 "5120 × 1440 CMOS sensor - 0.0005Lux high quality with ColorVu Technology and bright F1.0 lens - Vision at 24/7 colors - Illuminator with White LED , 40m range - Perimeter protection - WDR 130dB, 3DNR, Motion Detection, BLC, HLC - Metal body - IP67 protection - 256GB MicroSD slot (not included) - Audio and alarm - microphone - Loudspeaker - Codec H265 + - Strobe light for deterrence.

Reference: DS-2CD2387G2P-LSU/SL

Brand: Hikvision

EAN: 6931847164355

FIND INSTALLER

€569.37

€875.96 -35%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity



DS-2CD2387G2P-LSU / SL | OUTDOOR HIKVISION COLORVU TURRET CAMERA - 8MP - 4MM DOUBLE FIXED LENS - WDR 130DB

Made by Hikvision
Fixed Hikvision Turret Camera with Color Vu Technology - DS-2CD2387G2P-LSU / SL
Resolution 8MP - Dual 4mm fixed lens - Dual 1 / 1.8 " 0.0005 Lux CMOS sensor with ColorVu Technology
ColorVu technology: 24/7 color vision, even at night! - BLC, HLC -WDR 130dB - Audio - 1in / 1out alarm - Microphone - Loudspeaker - Perimeter protection - IP67 protection - 256GB MicroSD slot (not included) - Metal body - Power supply not included - 24 month warranty

Product Details
DS-2CD2087G2-L (2.8mm) _BANNER

ColorVu Technology:

Hikvision ColorVu technology provides 24/7 vibrant, colorful images with advanced F1.0 lenses and high performance sensors. The F1.0 super aperture collects more light to produce brighter images. Advanced sensor technology can greatly improve the utilization of available light.

VIVID DETAILS EVEN AT NIGHT
ColorVu cameras capture vivid details in color, thanks to sensor and lens technology.

HIGH BRIGHTNESS
The lens of these cameras is a F1.0 . The large aperture allows you to collect a large amount of light and capture color images even in the dark.

SENSOR WITH AMAZING QUALITY
The sensor installed in the ColorVu products has a sensitivity of 0.0005 Lux and has allowed a significant improvement in the quality of the shots.
Thanks to the BBAR coating and ED glass, the images provided are without backlight effects and with a reduced light glare.

SML TECHNOLOGY - WHITE LED ON BOARD
All the cameras in this line have an integrated white LED, with many adjustable functions, all adjustable during installation; from the courtesy light, to the smart activation in conditions of total absence of light.

SIMPLIFIED START-UP
Thanks to 4 pre-configured profiles and the ability to create two customized ones, ColorVu products allow easy installation for professionals in the sector.

Resolution:

This camera has a resolution of 8MP 8 Megapixel ( 5120 × 1440, wide format)

Bright lens:

This camera features bright F1.0 aperture lens and 4mm dual fixed lens.
The camera will collect much more light ensuring color shots even in the dark!

Advanced Sensor and ColorVu Technology:

Thanks to the sensitivity of the sensor present (0.0005 Lux) , the BBAR coating and the ED glass , this camera is able to provide images without those annoying backlight effects. The details captured are vivid in color and in high definition even in low light conditions . It will be easier to recognize the characteristics of a person or a car / license plate


VIDEO ANALYSIS:

This camera features advanced video analytics features including:

- Line overrun
- Entrance to the area
- Exit the area

IR ILLUMINATOR:

Illuminator with white illumination.

Maximum range: 40 meters

Day / Night:

Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

BLC (Back Light Compensation):

is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

WDR 130dB:
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db while managing very strong contrast levels. Immagine esempio funzione WDR 120db
MICROPHONE:

This camera is equipped with on-board microphone!

AUDIO AND ALARM:

This camera has 1 input and 1 alarm output.

It also has a speaker integrated into the design.

AGC (Automatic Gain Control):

integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

3D - DNR:

More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

Diet:

A 12V DC power supply is required for the operation of this camera (not included)

MATERIAL:

This camera features a metal housing.

IP67 protection:

Protection from dust and temporary immersions. Suitable for outdoor environments.

Data sheet

DS-2CD2387G2P-LSU / SL
Technical Specs

Room

Image Sensor

2 × 1 / 1.8 "Progressive Scan CMOS

Max. Resolution

5120 × 1440

Image Parameters Switch

Yes

Image Settings

saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Day / Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

130 dB

SNR

≥ 52 dB

Image Enhancement

BLC, HLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10M / 100M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD / microSDHC / microSDXC / TF card, up to 256GB

Built-in Microphone

Yes

Built-in Speaker

Max. Power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB

Audio

1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 24 VDC, 1 A)

Reset Key

Yes

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection

Linkage

Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing

Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))

General

Power

12 VDC ± 25%, 0.79 A, max. 9.5 W, Ø 5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W

Material

Base: metal, cover: metal

Dimension

Ø 155 mm × 155.3 mm (Ø 6.1 "× 6.1")

Package Dimension

230 mm × 230 mm × 230 mm (9 "× 9" × 9 ")

Weight

Approx. 1110 g (2.4 lb.)

With Package Weight

Approx. 1900 g (4.2 lb.)

Storage Conditions

-30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish , Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, password reset via email, password protection, one-key reset

Flashing Light

Yes

Approval

EMC

FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014, RCM: AS / NZS CISPR 32: 2015, IC: ICES-003: Issue 7

Safety

UL: UL 62368-1, CB: IEC 62368-1: 2014 + A11, CE-LVD: EN 62368-1: 2014 / A11: 2017

Environment

CE-RoHS: 2011/65 / EU, WEEE: 2012/19 / EU, Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013

Further details

DS-2CD2387G2-L% 282.8mm% 29_DIMENSIONI.jpg

Download

Download the English brochure
