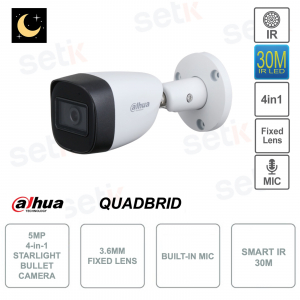

HDCVI 5.0 new Dahua series outdoor camera HAC-HFW2501CM-A-S2 - S2 version - 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG switchable via DIP switch - 5Megapixel 5MP resolution - 3.6mm fixed lens and 1/2.8" sensor CMOS with Starlight technology, Smart IR 3 LEDs up to 30m, WDR 120dB , Day/Night (ICR), OSD, Integrated microphone , IP67 - Ideal for outdoor use.
FIND INSTALLER
DAHUA 4IN1 5MEGAPIXEL 3.6MM STARLIGHT CAMERA - WDR 120dB - AUDIO - SMART IR 30M - HAC-HFW2501CM-A-S2
Dahua 4in1 outdoor camera - HAC-HFW2501CM-A-S2
4in1: HDCVI / HDTVI / AHD / ANALOG switchable via DIP switch via BNC port - 5Megapixel 5MP - 3.6mm lens - CMOS 1/2.8" 5MP Starlight - Smart SMD IR illuminator 3 LEDs 30M - Day/Night (ICR) - OSD - WDR 120dB - AGC - 3DNR - AGC - AWB - Mirror Mode - Privacy Masking - Integrated microphone - IP67 protection - Power supply NOT included - 24 month warranty
Product details
- Starlight 5MP 4in1 Bullet Camera - Dahua - HAC-HFW2501CM-A-S2
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOGUE
- Technologies switchable via dip switches on BNC port
- 5 Megapixel 5MP 2880x1620 resolution
- 3.6mm fixed lens
- 5MP 1/2.8" CMOS sensor with Starlight Technology
- Starlight Technology: Color Night Vision!
- Smart SMD IR illuminator 3 LEDs 30M
- OSD Multi-language menu
- Day/Night(ICR), BLC / HLC
- Ultra WDR 120dB
- Audio Input
- 12V DC power supply (not included)
- Material: metal on the entire body
- IP67 protection, ideal for use in outdoor surveillance systems
- Operating temperature: –40°C to +60°C (–40°F to +140°F)
- Relative humidity: < 95% (noncondensation)
- Dimensions: 166.6mm × 69.7mm × 70.0mm
- Weight: 0.35Kg
- 24 months warranty
Data sheet
| HAC-HFW2501CM-A-S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.7 inch CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution | 2880(H)×1620(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixels | 5 MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressives | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | PAL: 1/3 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >65 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.001 Lux/F1.6, 30IRE, 0Lux IR on | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 30 m (98.4 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto / Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Fixed focus |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dahua , much more than other companies, is constantly committed to this and, thanks to its team of specialized technicians, creates products that can guarantee an increasingly complete level of protection.
The news of 2019 concerns the launch of a new technology ... a new evolutionary stage of HD on coaxial .
Let's welcome HDCVI 5.0!
Would you like to know more? Read our article
This camera is a QUADRIBRID (4 integrated technologies)
These cameras are at the same time Analog , AHD , HDCVI and HDTVI .
Switch Technologies:
The camera can switch from HDCVI to HDTVI, AHD or Analog via dip switches on coaxial cable
5MP resolution, means 12 times the resolution of a common D1 camera :
It guarantees adequate resolutions for any need.
This camera is equipped with a 3.6mm fixed lens
1/2.8" CMOS sensor with STARLIGHT technology.
Low brightness, color vision even in night mode
With this CMOS sensor it is possible to have color shots even in night mode.
Normally, when you enter night mode, color vision becomes black/white.
With the SENSOR present, night shots will be clear and in color
IR illuminator with 3 LEDs and lighting range up to 30m.
SMART IR technology .
The light emitted by the LEDs is adapted depending on the object framed.
Multilingual OSD menu!
This camera is equipped with a built-in microphone on board!
ULTRA WDR up to 120dBWDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies. This improves image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations
12V DC power supply NOT included!
This camera was made of metal throughout the body!
This product is covered by a 24 month warranty.
