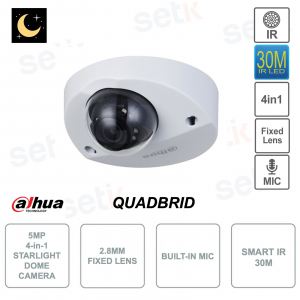

5MP Starlight Dome Camera - 4in1 switchable - 2.8mm lens - Microphone - S2 version

5MP Starlight Dome Camera - 4in1 switchable - 2.8mm lens - Microphone - S2 version
-58%

Dahua camera HAC-HDBW2501F-A-S2 S2 version with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG, 5 Megapixel 5MP resolution, 2.8mm lens and 1 / 2.7 "CMOS 5MP image sensor with Starlight technology. Smart IR 30M, WDR 120dB , Day / Night (ICR ) - Advanced 3DNR - Mirror Mode - BLC - AGC - AWB - Privacy Masks - Integrated microphone - IP67 and IK10 protection - For surveillance systems set up outdoors.



Reference: HAC-HDBW2501F-A-S2

Brand: Dahua

EAN: 6939554945090

FIND INSTALLER

€107.60

€256.20 -58%
taxes included
Tax included
 Available in 5 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


DAHUA STARLIGHT 4IN1 DOME CAMERA - 5MP - 2.8MM LENS - WDR 120DB - STARLIGHT - MICROPHONE - S2 VERSION - HAC-HDBW2501F-A-S2

Prodoto Dahua
Dahua Starlight 4in1 5MP Dome T elecamera - S2 Version - HAC-HDBW2501F-A-S2
4 Technologies in 1: CVI / TVI / AHD / ANALOG - 5Megapixel - CMOS 1 / 2.7 "from 5MP 2880x1620 with Starlight technology - 2.8mm fixed lens -
30M Smart IR Illuminator (8 LED Illuminators) - Day / Night (ICR auto-switch), WDR 120dB, AWB, AGC, Advanced 3DNR, Mirror Mode, Privacy Masking -Built-in microphone
IP67 outdoor / IK10 protection from vandalism - Power supply NOT included - 24 month warranty.

Product details

- Dahua Starlight Dome 4in1 outdoor camera - HAC-HDBW2501F-A-S2
- 4 Technologies in 1: switchable HDCVI / HDTVI / AHD / ANALOG
- S2 version
- Switchable technologies through dip switches via BNC port
- 1 / 2.7 "CMOS image sensor with Starlight Technology
- Starlight technology: Color night vision
- 5 Megapixel 5MP 2880x1620 resolution
- 2.8mm fixed lens
- Multi-language OSD menu
- Day / Night (ICR), advanced BLC / HLC / AGC / AWB / 3DNR
- Ultra WDR 120dB
- Integrated microphone
- 30M Smart IR Illuminator (with 8 LED Illuminators)
- IP67 protection (Dust / Diving)
- IK10 protection (Vandalism)
- Material: Dome and cover in metal and decorative ring in plastic
- Operating temperature: –40 ° C to + 60 ° C
- Weight: 0.33Kg
- 12V DC power supply not included
- Dimensions: φ106mm × 50.3mm (φ4.17 "× 1.98")
- 24 months warranty

Data sheet

HAC-HDBW2501F-A-S2
Technical Specs

Room

Image Sensor

1 / 2.7 inch CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5 MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s – 1 / 100,000 s
NTSC: 1/4 s – 1 / 100,000 s

S / N Ratio

0.001 Lux / F1.6, 30IRE, 0Lux IR on

Min. Illumination

> 65 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On / Off Control

Auto / Manual

Illuminator Number

8

Pan / Tilt / Rotation Range

Pan: 0 ° -60 °
Tilt: 0 ° –80 °
Rotation: 0 ° –360 °

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm

Max. Aperture

F1.6

Field of View

132 ° x 111 ° x 58 °

Iris Type

Fixed iris

Close Focus Distance

0.9 m (3.0 ft)

Video

Frame Rate

CVI:
PAL: 5M @ 25 fps; 4M @ 25 fps; 1080P @ 25 fps
NTSC: 5M @ 25fps; 4M @ 30 fps; 1080P @ 30 fps
AHD:
PAL: 4M @ 25 fps;
NTSC: 4M @ 30fps
TVI:
PAL: 4M @ 25 fps;
NTSC: 4M @ 30fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)

Day / Night

Auto switch by ICR

BLC

BLC / HLC / WDR / HLC-Pro

WDR

120 dB

White Balance

Auto / Manual

Gain Control

Auto / Manual

Noise Reduction

2D NR / 3D NR

Smart IR

Yes

Mirror

Off / On

Privacy Masking

Off / On (8 areas, rectangle)

Certifications

Certifications

CE (EN55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN55024: 2010 + A1: 2015, EN 55035: 2017, EN50130-4: 2011 + A1: 2014, EN 62368- 1: 2014 + A11: 2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1 + CAN / CSA C22.2 No.60950-1)

Port

Audio Interface

One channel built-in mic

Video Output

Video output choices of CVI / TVI / AHD / CVBS by one BNC port (DIP Switch)

Power

Power Supply

DC 12V ± 30%

Power Consumption

Max 4.0W (12V DC, IR on)

Environment

Operating Temperature

–40 ° C to + 60 ° C (–40 ° F to + 140 ° F); <95% (non-condensation)

Storage Temperature

–40 ° C to + 60 ° C (–40 ° F to + 140 ° F); <95% (non-condensation)

Protection Grade

IP67, IK10

Structure

Casing

Metal dome + metal cover + plastic decorative ring

Camera Dimensions

φ106mm × 50.3mm (φ4.17 "× 1.98")

Net Weight

0.33 kg (0.73 lb)

Gross Weight

0.44 kg (0.97 lb)

Further details

Quadruple hybrid technology

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time, Analog , Ahd , HDCVI and HDVI .

Switch Technologies:

The camera can switch from HDCVI to HDTVI, AHD or Analog via dip switch on BNC port.


CMOS sensor with STARLIGHT technology.

Low brightness, color vision even in night mode

With this CMOS sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black / white.

With the SENSOR present, night shots will be sharp and in color

Esempio di visione notturna in presenza di sensore con tecnologia starlight

Risoluzione 5.0 Megapixel (2560x1920)

5.0MPX resolution, means 12 times the resolution of a common D1 camera :
It guarantees adequate resolutions for any need.

Confronto 5 megapixel

3.6mm fixed lens This camera features 2.8mm fixed lens.
Illuminatore IR fino a 30mt

Infrared illuminator with approximate maximum range of 30Mt

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the framed object. SmartIR.jpg

Interfaccia audio

This camera has audio interface

Compatible with Setik MICS1 Microphones MICS2 MICS3

Menù OSD

OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day / Night sensitivity, Shutter speed, White balance, light compensation and much more ...

The OSD menu is multi-language

WDR Ultra a 120dB ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
Esempio vantaggi WDR
Funzione Day/Night Allows you to adapt the lens to Night / Day vision

Funzione Day/Night e i suoi vantaggi

IR CUT FILTER The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
Funzione BLC compensazione luce BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) the compensation of light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations

Esempio Funzione BLC con vantaggi
Click to enlarge

Funzione AGC Automatic Gain Control AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic, without requiring specific settings.
Funzione 3D-DNR 3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and in motion. It is currently the most powerful solution for obtaining maximum results in low light conditions.
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

This camera has a built-in microphone This camera has a built-in microphone !
Protezione IK10 contro atti vandalici

IK10 is the highest level of direct damage protection. This allows the use of the camera even if there is a risk of vandalism

Schema livelli protezione antivandalo

Alimentazione 12V DC A 12V DC power supply is required for the operation of this camera (not included)
Dettaglio connettore alimentazione 12V DC
Materiale con cui è stato creato il dispositivo This camera was made with a metal dome and cover and a decorative plastic ring.
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Download

Download the English brochure
