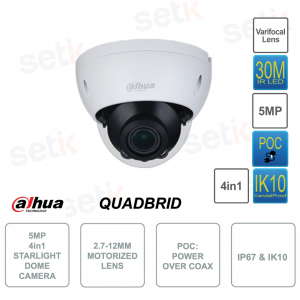

5MP HDCVI Dome Camera - 4in1 - POC- Starlight - 2.7-12mm lens - IR30m - S2

5MP HDCVI Dome Camera - 4in1 - POC- Starlight - 2.7-12mm lens - IR30m - S2
-59%

Dahua Dome POC 4in1 camera ( CVI/CVBS/AHD/TVI Switchable ) 5MP 5Megapixel , S2 Version , 2.7-12mm varifocal lens with motorized zoom and 1/2.7" CMOS image sensor. Smart IR illuminator (30m), Day/Night (ICR), BLC, HLC, DWDR, AGC, IP67 (dust/immersion) and IK10 (vandalism) protection, metal. HAC-HDBW1500R-Z-POC-S2



Reference: HAC-HDBW1500R-Z-POC-S2

Brand: Dahua

EAN: 6923172501974

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

5MP POC DOME CAMERA - 2.7-12MM MOTORIZED - 4IN1 - S2 VERSION - IP67 - IK10 - DAHUA - HAC-HDBW1500R-Z-POC-S2

Prodotto Dahua
Dome Starlight POC outdoor camera - 4in1 (CVI/CVBS/AHD/TVI Switchable) - S2 Version - Dahua - HAC-HDBW1500R-Z-POC-S2
5Megapixel resolution - 2.7-12mm lens with motorized zoom - 1/2.7" CMOS sensor 2880 (H) × 1620 (V)
Smart IR 30MT illuminator - Day/Night (ICR), BLC, HLC, DWDR - IP67 and IK10 protection (Vandalism) - Metal - 12VDC power supply NOT included - 24 month warranty

Product details

Telecamera Dahua HD CVI 5MP 2.7-12mm Motorized IK10
  • Outdoor Dome 4in1 POC Camera ( CVI/CVBS/AHD/TVI Switchable ) Dahua - HAC-HDBW1500R-Z-POC-S2
  • S2 version
  • 5Megapixel resolution
  • POC: Power Over Coax
  • Image sensor 1/2.7" CMOS 2880 (H) × 1620 (V)
  • 2.7-12mm varifocal lens with motorized zoom
  • Day/Night(ICR), BLC, HLC, DWDR, AGC
  • High Speed, real-time long distance transmissions
  • Smart IR LED 30MT illuminator
  • Video output choices of CVI/TVI/AHD/CVBS from a BNC port
  • Multilingual OSD menu
  • IP67 protection (Dust/Immersion)
  • IK10 protection (Vandalism)
  • 12VDC power supply NOT included
  • Material: completely in metal
  • Dimensions: φ122mm × 88.9mm (φ4.8" × 3.5")
  • 24 month warranty

Data sheet

HAC-HDBW1500R-Z-POC-S2

Technical Speci?cation

Room

Image Sensor

1/2.7 inch CMOS

Max.Resolution

2880(H)×1620(V)

Pixels

5MP

Scanning System

Progressives

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s

S/N Ratio

>65 dB

Min. Illumination

0.005 Lux/F1.6, 30IRE, 0 Lux IR on

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Car; manual

Illuminator Number

2

Pan/Tilt/Rotation Range

Lens

Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355°

Lens Type

Motorized vari-focal

Auto Focus

N/A

Mount Type

φ14

5MP resolution, means 12 times the resolution of a common D1 camera :
It guarantees adequate resolutions for any need.

1/2.7" CMOS image sensor with 2880 (H) × 1620 (V) resolution.


POC - POWER OVER COAX:

This new technology allows common coaxial cameras to be powered directly via the video cable, over which the signal is sent using the same transmission medium. This technical concept is very similar to PoE, already widely used on IP devices and even before on old analog telephones.

The distance coverage of this technology depends on the quality of the cable and the power required by the camera, in any case the guaranteed distances are greater than those of typical 12V power supplies, which have a decidedly greater loss.

Below you will find a purely indicative table from Dahua:


CMOS sensor with STARLIGHT technology.

Low brightness, color vision even in night mode

With this CMOS sensor it is possible to have color shots even in night mode.

Normally, when you enter night mode, color vision becomes black/white.

With the SENSOR present, night shots will be clear and in color

Esempio di visione notturna in presenza di sensore con tecnologia starlight

Ottica varifocale 2.7-13.5mm This camera features 2.7-12mm varifocal optics with Motorized Zoom

Optics Demonstration Video:


DWDR function

D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated into the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Illuminatore IR fino a 30mt

Infrared illuminator with approximate maximum range of 30m

This camera also features SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted depending on the object framed. SmartIR.jpg

Icon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
Example Day/Night functionICR The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTERAGC

The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism

12V 3A power supply 12V DC power supply NOT included in the package
12V DC power supplyMateriale con cui è stato creato il dispositivo This camera was made entirely of metal. Italian Guarantee icon This product is covered by a 24 month warranty.
Schema con le dimensioni della telecamera dome hdcvi HAC-HDBW1400R-VFHAC-HDBW1500R-Z-S2

Immagine esempio risoluzioni a confronto

Differenze di risoluzioni tra HDCVI e analogico

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
