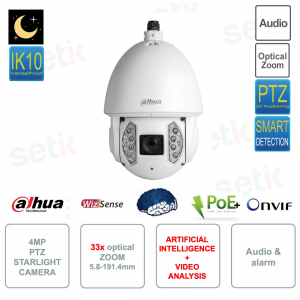

4MP Camera - Zoom 33x 5.8-191.4mm - Artificial Intelligence - IR200m

Product details

Data sheet

SD6AE433XA-HNR

Technical Specs

Room

Image Sensor

1 / 1.8 "CMOS

Pixel

4MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1/1 s – 1/30000 s

Scanning System

Progressive

Min. Illumination

Color: 0.001 Lux@F1.5 B / W: 0.0001 Lux@F1.5 0 Lux (IR on)

Illumination Distance

PoE is the first generation technology, PoE + is the latest standard .
PoE (IEEE 802.3af)

PoE + (IEEE 802.3at) (High-PoE)

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera is ONVIF® compatible

Resolution up to 4 Megapixel (2560 × 1440)

Other Supported Resolutions:
4M (2560 × 1440);
3M (2048 × 1536);
1080P (1920 × 1080);
1.3M (1280 × 960);
720P (1280 × 720);
D1 (704 × 576);
CIF (352 × 288)

1 / 1.8 "sensor with STARLIGHT technology.

Low brightness, color vision even in night mode

With the addition of the STARVIS feature we have significant advantages:

- Backlit structure with 2.9 µm-square unit pixels

- High sensitivity (two or more times greater than other products on the market)

- Increased sensitivity in the vicinity of an area covered by infrared light

- Supports WDR (WDR multiple exposure, DOL-WDR)

- Versatile interface (parallel CMOS, low voltage LVDS serial, MIPI CSI-2)

With the Sony CMOS sensor it is possible to have color shots even in night mode.

Normally, upon entering night mode, color vision becomes black / white.

With the SENSOR present, night shots will be sharp and in color

Main stream: 4M / 3M / 1080P / 1.3M / 720P (1–25 / 30 fps)
Sub stream 1: D1 / CIF (1–25 / 30 fps)
Sub stream 2: 720P (1–25 / 30 fps)

This camera features SMART DETECTION:

- Recognition of lost or abandoned objects

AI | Artificial intelligence
This camera features Artificial Intelligence on board
This means that it has a wide range of advanced features such as:

- Perimeter protection: Line crossing and intrusion. It supports alarm activation from various types of targets (humans and vehicles). Filter out false alarms caused by animals, rustling leaves, bright lights

- SMD Plus: With the deep learning algorithm, Dahua SMD Plus filters the alarm received from the detection of an unaffected target and effectively recognizes humans and vehicles, sending alarms when the latter appear in the shooting area.

- Face Detection

- Smart Capture

This camera features the AUTO TRACKING function.
The system will identify the objects that move in a specific area under video surveillance and will automatically enlarge it for a better view of the tracked object.

This camera is equipped with an IR illuminator with a maximum range of about 200 meters , with 10 LED illuminators

30x Optical Zoom ( 6mm ~ 180mm) + 16x Digital Zoom

Smart H.265 +

Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network.

Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression

Supports Intelligent 3D Positioning with DH-SD protocol. This system allows in addition to the movement on the camera axis also the positioning in terms of depth, and the same can be stored in the Presets.

General PTZ Functions:
Pan / Tilt Range: Pan: 0 ° ~ 360 ° endless; Tilt: -20 ° ~ 90 °, auto flip 180 °
Manual Control Speed: Pan: 0.1 ° ~ 200 ° / s; Tilt: 0.1 ° ~ 120 ° / s
Preset Speed: Pan: 240 ° / s; Tilt: 200 ° / s
Presets: 300
PTZ Mode: 5 Pattern, 8 Tour, 5 Scan
Power off memory: Support
Idle Motion: Preset / Tour / Pattern / Scanning
Protocol: DH-SD, Pelco-P / D (Auto recognition) It is extremely useful to have Inputs / Outputs in a CCTV system in order to control relays or activate a recording following an event.
This 7 -input and 2 -output camera This camera has 1 Audio Input + 1 Audio Output Protection level IP67 (Dust / Diving)

IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism

RS 485 for PTZ commands (remotely controllable cameras) Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Last Function ONLY present in Sony Effio-V, It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog

This camera features the EIS function.

The EIS (image stabilizer) especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable

Possibility to insert Micro SD up to 256GB (not included)

This product is covered by a 24 month warranty.
