Dahua HAC-HDB3200F-M-S5 dome 4in1 camera (CVI / CVBS / AHD / TVI Switchable) , 1080P 2MP resolution, 2.1mm fixed lens and 1 / 2.7 "CMOS sensor. 1 switchable channel video output, Aviation Connector, Day / Night , OSD Menu, BLC, HLC, DWDR, 2D NR, AGC, Privacy Mask, IP67/IK10 , Built-in Microphone .
FIND INSTALLER
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

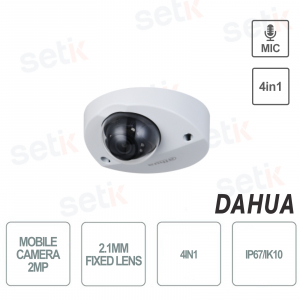

DAHUA 4IN1 FULL HD 1080P MOBILE CAMERA - IP67/IK10 - 2.1MM
Product details
- 2.1mm fixed optics
- Image sensor 1/2.7" CMOS
- 24 months warranty
Data sheet
| model | HAC-HDB3200F-M-S5 |
| Room | |
| Image Sensor | 1/2.7inch CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Scanning System | Progressives |
| Electronic Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Min Illumination | 0.02Lux/F2.0 |
| S/N Ratio | More than 65dB |
| Pan/Tilt/Rotation Range | Pan: –30° to 30° Tilt: 0° to 80° Rotation: 0° to 360° |
| lens | |
| LensType | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.1mm |
| Max openings | F2.0 |
| Angle of view | H: 106°; V: 55°; Q: 126° |
| Close Focus Distance | 0.3m (0.98ft) |
| Iris type | Fixed iris |
| Video | |
| Frame Rates | CVI: 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps; HD: 1080p@25/30fps; 720p@25/30fps; TVI: 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps; CVBS: 960H |
| Resolution | 1080p (1920×1080); 720p (1280×720); 960H (960×576/960×480) |
| Day/Night | Auto switch by ICR |
| BLC extension | BLC/HLC/DWDR |
| wdr extension | dwdr extension |
| White Balance | Car; manual |
| Gain Control | Car; manual |
| Noise reduction | 2D NO |
| Mirrors | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
| Certifications | |
| Certifications | CE/FCC |
| Port | |
| audio interface | Built-in Mic |
| Video Output | 1-channel CVI/CVBS/AHD/TVI switchable video output (Aviation connector) |
| Aviation Connector Interface | 1 power 2-video ground 3-power ground 4-video |
| Power | |
| Power Supply | 12V ±30% DC |
| power consumption | Max 1.1W (12V DC) |
| environment | |
| Operating Conditions | –40°C to +60°C (–40°F to 140°F); <95% (noncondensing) |
| Storage Conditions | –40°C to +60°C (–40°F to 140°F); <95% (noncondensing) |
| Protection Grade | IP67, IK10 |
| structure | |
| Casing | Metal |
| Dimensions | Φ106.0mm × 50.3mm (Φ4.17" × 1.98") |
| Net Weight | 0.33kg (0.73lb) |
| Gross Weight | 0.47kg (1.04lb) |
Further details
 | BEDROOM FURNITURE The "Mobile Camera" is a camera particularly suitable for installation on moving vehicles, thanks to its resistance to vibrations (Shock-proof) and compact case. Intelligent Design |
| SHOCKPROOF Vibration is unavoidable in mobile installations. In order to avoid image or connection errors, the hardware structure of the mobile camera is resistant to shock. Besides, the mobile camera adopts Aviation connector for stable connection. |
 | This camera is a FOUR HYBRID (4 Integrated Technologies) These cameras are Analogue , Ahd , Hdcvi and Hdtvi at the same time .    |
 | This camera features a resolution of 2Megapixel 1080P 1/2.7" CMOS sensor |
 | This camera has a fixed 2.1mm lens |
| OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more... The OSD Menu is multi-language and can be managed both via DVR and via UTC Controller (not included) |
  | This camera is equipped with a built-in microphone |
 | Allows you to adapt the lens to Night/Day vision
|
 | BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shooting from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | 2D-NR manages the NOIS REDUCTION. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light. |
 | D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.  |
 | Protection level IP67 ( Dust / Immersion ) The camera is suitable for outdoor environments and is rain resistant. |
 | IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 | DC12V power adapter NOT included in the package.  |
 | This product is covered by a 24 month guarantee. |
