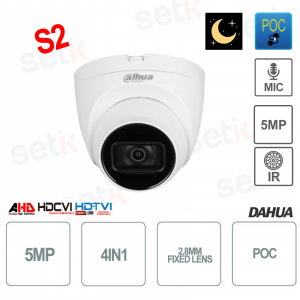

Dahua HAC-HDW1500TQ-A-POC-S2 outdoor camera with 4 technologies in 1: switchable HDCVI / HDTVI / AHD / ANALOG, 5Megapixel 5 MP resolution, 2.8mm fixed lens and 1 / 2.7 "CMOS sensor with 2880x1620 resolution - Smart Illuminator IR 40m - Built-in Microphone - Starlight Technology - Day / Night (ICR), DWDR, AWB, HLC, BLC - OSD Multilingual menu - BNC Video Connector - POC - For video surveillance systems set up outside (IP67). S2 version
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DAHUA QUADRIBRID VIDEO SURVEILLANCE CAMERA - MICROPHONE - 5 MP - 2.8MM FIXED LENS - STARLIGHT - SMART IR 40M - CMOS 1 / 2.7 "- POC - HAC-HDW1500TQ-A-POC-S2
Dahua 4in1 outdoor camera with 3.6mm fixed lens - HAC-HDW1500TQ-A-POC-S2 - S2 version
4in1: switchable HDCVI / HDTVI / AHD / ANALOG - 5Megapixel 5 MP - 2.8mm lens - 1 / 2.7 "CMOS with 2880x1620p resolution in Progressive scan and Starlight technology - Digital Noise Reduction DNR 2D - Smart IR 40 MT illuminator - IR On / Off - Microphone - Privacy Mask on 8 rectangular areas - AWB / AGC / BLC / HLC / DWDR - Mirror Mode (off / on) - Day / Night (ICR) - OSD Multi-language menu - POC - IP67 protection from dust and splashes water for outdoor use - Power supply NOT included - 24 month warranty
Product details
- Smart IR 1 LED 40MT illuminator
- BNC connector
- Privacy Mask
- Operating temperature: from -40 to + 60 ° C
- Mirror Mode On / Off
- Suitable for outdoor and indoor environments
Data sheet
| HAC-HDW1500TQ-A-POC-S2 | |||||
|
Technical Speci? Cation |
|||||
|
Room |
|||||
|
Image Sensor |
1 / 2.7 inch CMOS |
||||
|
Max. Resolution |
2880 (H) × 1620 (V) |
||||
|
Pixel |
5MP |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
PAL: 1/25 s – 1 / 100,000 s NTSC: 1/30 s – 1 / 100,000 s |
||||
 |
This camera is a QUADRIBRID (4 Integrated Technologies) |
||||
 |
POC - POWER OVER COAX: This new technology makes it possible to power common coaxial cameras directly through the video cable, on which the signal is sent using the same transmission medium. This technical concept is very similar to PoE, already widely used on IP devices and even earlier on old analog telephones. The coverage in terms of distance of this technology depends on the quality of the cable and the power supply required by the camera, in any case the guaranteed distances are greater than those of the typical 12V power supplies, which have a much greater loss. Below you will find a purely indicative table of Dahua:
|
||||
 |
5MP resolution, means 12 times the resolution of a common D1 camera : Resolution: 2880 (H) × 1620 (V) 1 / 2.7 "CMOS image sensor
|
||||
 |
CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode With this CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color
|
||||
 |
This camera is equipped with a 2.8mm fixed lens | ||||
 |
This camera has built- in microphone. | ||||
 |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  |
||||
 |
Smart IR infrared illuminator, with 1 LED and approximate maximum range of 40m. |
||||
|
|
OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day / Night sensitivity, Shutter speed, White balance, light compensation and much more ... Multi-Technology: The camera features 4 technologies in 1 (HDCVI, HDTVI, AHD, Analog) |
||||
 |
Allows you to adapt the lens to Night / Day vision
|
||||
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
||||
 |
BLC (Back Light Compensation) is one of the 3 possible Steps in managing images with Contrast, typical situations are (Entering or exiting car parks, Plaques, Particular lights, Entrances with shots from inside to outside, etc.) the compensation of light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations | ||||
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. | ||||
 |
Protection level IP67 (Dust / Diving) |
||||
 |
12V ± 30% DC power supply. The power supply is not included. Absorption: Max 3.2 W (12V DC, IR on).  |
||||
 |
This product is covered by a 24 month warranty. |
||||
