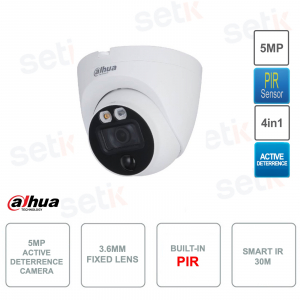

Outdoor camera HAC-ME1500EQ-L-S2 4in1 HDCVI 5Megapixel - S2 version - 3.6mm fixed lens - 1 / 2.7 "5MP CMOS sensor - Integrated PIR - 4in1 : CVI / CVBS / AHD / TVI switchable - Active deterrence with warm light - Smart IR up to 30m - Day / Night (ICR), BLC, AGC, AWB, Mirror Mode, 2DNR, Privacy Masking, DWDR - IP67 protection for outdoor use - In plastic and metal - Dahua Technology.
FIND INSTALLER
€58.93
€140.30 -58%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
OUTDOOR CAMERA HDCVI 4IN1 5MP - ACTIVE DETERRENCE - SMART IR 30M - S2 VERSION - DAHUA
4in1 outdoor camera with integrated PIR - Dahua Version S2 HDCVI - HAC-ME1500EQ-L-S2
5Megapixel resolution - 4in1: CVI / CVBS / AHD / TVI switchable - 3.6mm fixed lens - Smart IR 30MT illuminator - Integrated PIR with infrared sensor - Active warm light deterrence - Day / Night (ICR), BLC, DWDR, Privacy mask , Mirror Mode, 2DNR, AWB, AGC - IP67 protection for outdoor use - Made of plastic and metal - Power supply NOT included - 24 month warranty
Product details
- Integrated PIR with infrared sensor with detection range 10m / 110 °
- Suitable for outdoor and indoor environments
- Operating temperature: –40 ° C to +60 ° C
Data sheet
| HAC-ME1500EQ-L | ||||
|
Technical Specs |
||||
|
Room |
||||
|
Image Sensor |
5MP |
|||
|
Max. Resolution |
1 / 2.7 "CMOS |
|||
|
Pixel |
2880 (H) × 1620 (V) |
|||
|
Scanning System |
Progressive |
|||
|
Electronic Shutter Speed |
PAL: 1/25 s – 1 / 100,000 s NTSC: 1/30 s – 1 / 100,000 s |
|||
|
S / N Ratio |
0.005 Lux / F1.6, 30 IRE, 0 Lux IR on |
|||
|
Min. Illumination |
> 65 dB |
|||
|
Illumination Distance |
30 m (98.4 ft) |
|||
|
Illuminator On / Off Control |
Car |
|||
|
Illuminator Number |
1 (IR light) |
|||
| HD-CVI is the new technology in the world of video surveillance. By simply replacing the equipment (Cameras and DVRs) in the analog infrastructure, the resolution can reach up to 1920X1080 (FULL-HD). In this way it is possible to obtain the same results as in the IP world but with a high cost containment. | ||||
 |
This camera is a QUADRIBRID (4 Integrated Technologies) These cameras are at the same time, Analog , Ahd , HDCVI and HDVI .    |
|||
 |
PIR sensor This camera integrates a PIR sensor. Detection range: 10m / 110 °. |
|||
 |
5MP resolution, means 12 times the resolution of a common D1 camera : 5MP 1 / 2.7 "CMOS image sensor |
|||
 |
This camera is equipped with a fixed 3.6mm lens. | |||
 |
Smart IR infrared illuminator, with 1 LED and approximate maximum range of 30m. This camera is also equipped with SMART IR technology. Through this technology , the light emitted by the LEDs is adapted according to the framed object.  |
|||
 |
Active deterrence: Report intruders with built-in white light and siren
|
|||
 |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  |
|||
 |
Allows you to adapt the lens to Night / Day vision
|
|||
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
|||
 |
BLC (Back Light Compensation) is one of the 3 possible Steps in managing images with Contrast, typical situations are (Entering or exiting car parks, Plaques, Particular lights, Entrances with shots from inside to outside, etc.) the compensation of light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations | |||
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. | |||
 |
Protection level IP67 (Dust / Diving) |
|||
 |
12VDC power supply not included  |
|||
 |
This product is covered by a 24 month warranty. |
|||
