AI Series SD6C3432XB-HNR-AGQ-PV Dahua Outdoor ONVIF IP camera with 4Megapixel resolution, motorized varifocal lens with 32x optical zoom (4.8-154mm), 1 / 2.8 "CMOS sensor Starlight technology, IR up to 150m, Active deterrence with light and siren, H.265 +, Triple Stream, WDR 120dB, Autotracking, Artificial Intelligence , RS485, Audio, Alarm, 256GB MicroSD slot - IP66 protection, TVS6000.
FIND INSTALLER
€1,260.50
€3,001.20 -58%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
IP PTZ STARLIGHT - 4MP- ONVIF® WITH VIDEO ANALYSIS - ZOOM 32x 4.8-154MM - AUDIO - ALARM - DAHUA - SD6C3432XB-HNR-AGQ-PV

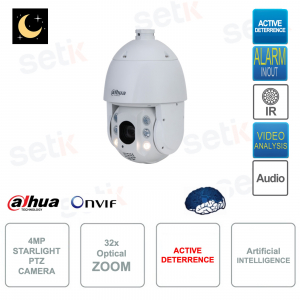

IP camera ONVIF® PTZ Starlight 4MP Dahua - SD6C3432XB-HNR-AGQ-PV
Resolution 4MP - Optics 4.8-154mm ( 32x zoom) - 1 / 2.8 "CMOS sensor with Starlight technology - Smart H.265 + - Triple Stream - IR illuminator up to 150m with 2 LEDs and 4 warm lights - Active deterrence with lights and siren - Artificial intelligence : Tripwire, intrusion, lost and abandoned objects, capture images of vehicles and people - Auto Tracking - 1in / 1out audio - 2in / 1out alarm - 256GB Micro SD Card slot (not included) - IP66 and TVS6000 - 24 month warranty producer.
|
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- Outdoor AI IP ONVIF® Camera - SD6C3432XB-HNR-AGQ-PV
- 4Megapixel resolution
- 4.8-154mm motorized varifocal lens (32x optical zoom)
- 1 / 2.8 "CMOS sensor with Starlight Technology
- Starlight technology: Color night vision!
- Video Compression up to H.265 + Smart Codec
- Triple Stream
- Day / Night (ICR), AWB, AGC, BLC, 2D / 3D-NR HLC, Electronic Defog, EIS, WDR (120db) , 16x digital zoom
- Motion / Tampering Detection
- Quality illuminator up to 150m, with 2 LEDs and 4 warm lights .
-
- Artificial Intelligence: Perimeter Protection (tripwire, intrusion) - AutoTracking - Smart Capture of People and Vehicles, Lost and abandoned objects
- 2 inputs and 1 alarm output
- 1 audio input and 1 audio output
- 1 microSD-Card slot (Max 256GB not included)
- 1 RS485 port
- Ethernet LAN RJ45 10/100 Base-T network interface
- IP66 / TVS6000 protection
- Housing material: ADC12
- Dimension: 325.0 mm × Φ202.0 mm (12.80 "× Φ7.95")
- Weight: 4.4 kg
- Operating temperature: –40 ° C to +70 ° C
- Arm and power supply included
- 24 months warranty
Data sheet
| SD6C3432XB-HNR-AGQ-PV | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1 / 2.8 "CMOS Sleep: ≤ 1W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 ° C to +70 ° C (–40 ° F to +158 ° F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
≤ 95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
ADC12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
325.0 mm × Φ202.0 mm (12.80 "× Φ7.95") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
4.4 kg (9.70 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
6.4 kg (14.11 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible |
|
|
AI | Artificial intelligence - Perimeter protection: Intrusion, Line crossing - Detection of motorized and non-motorized people and vehicles - Autotracking: The system will identify the objects that move in a specific area under video surveillance and will automatically enlarge it for a better view of the tracked object.
|
 |
Active deterrence: Report intruders with built-in white light and siren |
 |
This camera has a resolution of 4Megapixels |
|
|
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
1 / 2.8 "CMOS sensor with STARLIGHT technology. With this CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white.
With the SENSOR present, night shots will be sharp and in color
|
 |
32x Optical Zoom (4.8mm ~ 154mm) + 16x Digital Zoom |
 |
Main stream: 4M / 3M / 1080p / 1.3M / 720p (1–25 / 30 fps) Sub stream 1: D1 / CIF (1–25 / 30 fps) Sub stream 2: 1080p / 1.3M / 720p (1–25 / 30 fps) |
 |
The IR LED illuminator with a maximum range of up to 150 meters! It consists of 2 LED lights and 4 warm lights. |
 |
This camera also provides VIDEO ANALYSIS / SMART DETECTION functions: |
 |
General PTZ Functions: Pan / Tilt Range: Pan: 0 ° to 360 ° endless Tilt: –20 ° to + 90 °, auto flip 180 ° Manual Control Speed: Pan: 0.1 ° / s – 160 ° / s Tilt: 0.1 ° / s – 120 ° / s ??????? Preset Speed: Pan: 240 ° / s; Tilt: 150 ° / s Presets: 300 PTZ Mode: 5 Patterns, 8 Tour (up to 32 presets per tour), Auto Pan, 5 Auto Scan Speed Setup: Human-oriented focal Length / speed adaptation Power off memory: Yes Idle Motion: Preset; Pattern; Tour; Scan |
 |
It is extremely useful to have Inputs / Outputs in a CCTV system in order to control relays or activate a recording following an event. This camera with 2 inputs and 1 output |
 |
This camera has 1 Audio In + 1 Audio Out |
 |
RS 485 for PTZ commands (remotely controllable cameras) |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
ULTRA 2D / 3D-DNR 3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and in motion. It is currently the most powerful solution for obtaining maximum results in low light conditions. |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 |
This function allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 |
This camera features the EIS function. The EIS (image stabilizer) especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable  |
 |
This camera has automatic or manual focus |
 |
Possibility to insert Micro SD up to a maximum of 256GB (not included) |
 |
This camera has body in ADC12 |
 |
This product is covered by a 24 month warranty. |
