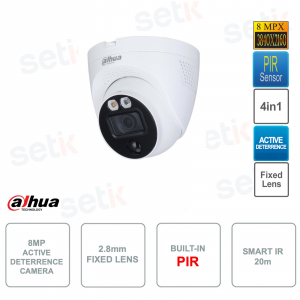

HDCVI Eyeball Dahua HAC-ME1800EQ-LS surveillance camera, 4K ULTRA-HD series up to 8Megapixel and 2.8mm fixed lens - CMOS 1 / 2.7 "8MP - 4in1: CVI / AHD / TVI / CVBS switchable - Active deterrence with light intermittent and siren - Infrared PIR sensor - Smart IR 20m - Day / Night (ICR), DWDR , BLC, HLC, 2DNR, Mirror Mode, Privacy Mask - 1 BNC port - IP67 outdoor protection - In plastic and metal.
FIND INSTALLER
HDCVI 8MP EYEBALL CAMERA - 2.8MM - SMART IR 20M - PIR - ACTIVE DETERRENCE - DAHUA - HAC-ME1800EQ-LS
Eyeball 4in1 HDCVI Camera - 4K Series - Dahua - HAC-ME1800EQ-LS
Resolution 8MP 4K ULTRA HD - 2.8mm optics - 8MP 1 / 2.7 "CMOS sensor - 4in1: CVI / AHD / TVI / CVBS via switchable coaxial - Smart IR 20m - Infrared PIR sensor with 10m / 110 ° detection - Active deterrence with warm light and siren - DWDR - BLC - HLC - 2DNR - Mirror Mode - Privacy Mask - IP67 protection - In plastic and metal - Power supply NOT included - 24 months warranty
Product details
- IP67 protection (Rain / Diving)
- Quality Smart IR illuminator with a maximum range of 20 meters.
- Suitable for outdoor and indoor environments
- Operating temperature: –40 ° C to + 60 ° C
- 24 months warranty
Data sheet
| HAC-ME1800EQ-LS | |||
|
Technical Specs |
|||
|
Room |
|||
|
Image Sensor |
1 / 2.7 "CMOS |
||
|
Max. Resolution |
3840 (H) × 2160 (V) |
||
|
Pixel |
4K |
||
|
Scanning System |
Progressive |
||
|
Electronic Shutter Speed |
PAL: 1/25 s – 1/100000 s NTSC: 1/30 s – 1/100000 s |
||
|
Min. Illumination |
0.02 Lux / F2.0, 30 IRE, 0 Lux IR on |
||
|
S / N Ratio |
? 65 dB |
||
|
Illumination Distance |
20 m (65.6 ft) |
||
|
Illumination Type |
IR |
||
|
Illuminator On / Off Control |
This camera is a QUADRIBRID (4 Integrated Technologies) Switch Technologies: The camera can switch from HDCVI to HDTVI, AHD or Analog via dip switch. |
||
 |
HD-CVI is the new technology in the world of video surveillance. By simply replacing the equipment (Cameras and DVRs) in the analog infrastructure, the resolution can reach up to 1920X1080 (FULL-HD). In this way it is possible to obtain the same results as in the IP world but with a high cost containment. | ||
 |
PIR sensor This camera integrates a PIR sensor. |
||
 |
New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism. |
||
 |
This camera features a resolution of 8Mpx! Image sensor 1 / 2.7 ”8Megapixel CMOS |
||
 |
|
||
 |
1xLED infrared illuminator with approximate maximum range of 20m.
|
||
 |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  |
||
 |
Active deterrence: Report intruders with built-in white light and siren
|
||
 |
Allows you to adapt the lens to Night / Day vision
|
||
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
||
 |
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) the compensation of light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations | ||
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. | ||
 |
Protection level IP67 (Dust / Diving) |
||
 |
12VDC power supply not included  |
||
 |
This product is covered by a 24 month warranty. |
||
