HYU-617N - Equivalent SF-IPT943WA-5E - Hyundai Dome video surveillance camera fixed IP PoE ONVIF - With Smart IR 30m - D outdoor illuminator, 5MP resolution - 2.8mm fixed lens - 1/2.7" 5MP CMOS sensor - Dual Stream - H.265+ Video Compression - Day/night (ICR) - BLC, WDR 120dB, 3D-DNR, ROI - Mirror Mode - Privacy Mask - Ethernet RJ45 10/100 self-adaptive - Slot for MicroSD up to 256GB (not included) - IP67 protection for outdoor use - Made of plastic and metal.
FIND INSTALLER

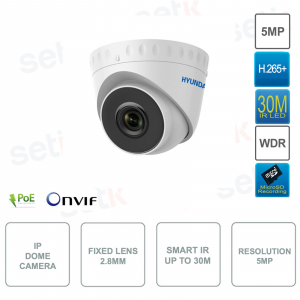

HYUNDAI 5MP OUTDOOR IP FIXED DOME CAMERA - 2.8MM FIXED LENS - IR 30 M - CMOS SENSOR - IP67 HYU-617N
1/2,7" 5MP CMOS sensor - 5MP resolution - 2.8mm fixed lens - Smart IR illuminator 30 Meters - Video H.265+ - Day/Night with ICR - BLC, WDR 120dB, 3D-DNR, Mirror Mode - Privacy Mask - ROI - RJ45 (10/100) self-adaptive Ethernet - MicroSD card slot up to 256GB (not included) - IP67 protection - Dimensions: Ø110 x 85.3 mm - Plastic and metal - Hyundai 3 Year Extended Warranty!
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
| |
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. | |
 | This camera features a resolution of 5Megapixel 5 MP! 1/2.7" 5 megapixel CMOS sensor Supported Resolutions: | |
 | This camera is equipped with a 2.8mm fixed lens | |
|
IR Infrared Illuminator with a maximum range of 30 meters This camera is also equipped with SMART IR technology. | |
 | H.265+ H.265+ is the optimized implementation of H.265 codec using scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without strain the network. H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
| |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  | |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. | |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations  | |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  | |
 | True WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  | |
 |
3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.  | |
 | Slot to insert MicroSD Card up to a maximum of 256GB (not included) | |
 | Protection level IP67 ( Dust / Immersion ) Ideal solution for outdoor use. | |
 | A 12V DC power supply is required for the operation of this camera (not included)  | |
 | This product is covered by a 3 Year Warranty! |
Data sheet
| model | HYU-617N |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
