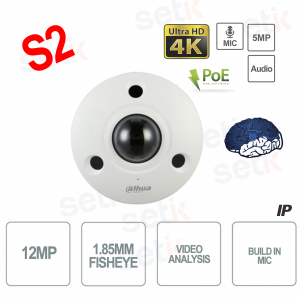

IPC-EBW81242-AS-S2 Dahua outdoor Fisheye IP Onvif PoE camera Dome for 4K ULTRA HD video surveillance up to 12 Megapixel, 1 / 1.7 "CMOS sensor and fixed lens 1.85 mm Fisheye . Triple Stream, Video Analysis, Heat Map, artificial intelligence ( People Counting) , IR 10MT . IP67 protection (Dust / Immersion) and IK10 (Vandalism), MicroSD Slot, Audio Inputs / Outputs, Integrated Microphone and Alarm. S2 version!
https://www.setik.biz/en/cameras/7359-dahua-ipc-ebw81242-as-s2-onvif-poe-ultra-hd-4k-12mp-ip-camera-fisheye-panoramic-s2.html
€854.57
€1,987.38 -57%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
OUTDOOR POE IP CAMERA - FISHEYE - ULTRA HD 4K 12 MEGAPIXEL - OVERVIEW - ARTIFICIAL INTELLIGENCE - S2 VERSION
FishEyeIP Onvif PoE Outdoor Camera Dahua DomeULTRA HD 4K Resolution 12 Megapixel - 1.85mm Panoramic Lens - Triple Stream
1 / 1.7 "CMOS sensor - Video Analysis - Artificial Intelligence - Heat Map - People Counting - Audio / Alarm
Integrated microphone - MicroSD slot - 24 months warranty
Product details
- Outdoor Onvif PoE IP Fisheye Camera - Dahua
- 4K ULTRA HD resolution up to 12Megapixel
- Fixed Lens 1.85mm Fisheye (180 °) Panoramic Vision
- STARVIS 1 / 1.7 " CMOS sensor
- Video compression H.265 + / H.264
- Day / Night (ICR), 3DNR, AWB, AGC, BLC
- Video Analysis: Line crossing , Intrusion , Heat map
- Artificial Intelligence: People Counting
- Motion Detection, ROI (Region of Interest), Defog
- IR illuminator with maximum range up to 10 meters
- ONVIF® standard
- MicroSD slot
- 1 Integrated Audio In + 1 Out
- Integrated microphone
- 2 inputs + 2 alarm outputs
- IP67 protection (Dust / Diving)
- IK10 protection (Vandalism)
- 12V DC / POE power supply (not included)
- Dimension: 59.8 mm × Φ149.8 mm (2.35 '' × Φ5.90 '')
- 24 months warranty
Data sheet
| Model | IPC-EBW81242-AS-S2 |
| Room | |
| Image Sensor | 1 / 1.7 "CMOS |
| Effective Pixel | 4000 (H) × 3000 (V) |
| ROM / RAM | 2GB / 4GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1/3 s – 1 / 100,000 s |
| Min. Illumination | 0.01 Lux@F2.0 (Color, 30 IRE) 0.001 Lux@F2.0 (B / W, 30 IRE) 0 Lux (Illuminator on) |
| S / N Ratio | > 56 dB |
| Illumination Distance | 10 m (32.81 ft) (IR) |
| Illuminator On / Off Control | Auto / Manual |
| Illuminator Number | 3 (IR LED) |
| Lens | |
| Fixed-focal | 1.85 mm |
| Mount Type | M12 |
| Focal Length | 1.85mm |
| Max. Aperture | F2.0 |
| Field of View | Horizontal: 185 °; Vertical: 180 ° |
| Iris Cons | Fixed |
| Close Focus Distance | 0.4 m (1.31 ft) |
| Smart Event | |
| Heat Map | Yes |
| Professional, intelligent | |
| IVS (Perimeter Protection) | Intrusion; tripwire |
| People Counting | Supports 4 rules to count the number of people entering, exiting, and staying separately. It will trigger alarm linkage when the number of people who entering, exiting or staying exceeds the threshold. It can display and export reports based on year, month, day, week, day or custom time. Supports 4 rules to count the number of people in area and will trigger alarm linkage when the average strand time or people number in the area exceeds the threshold. It can display and export reports based on year, month, day, week, day or custom time. Supports 4 queue management rules to count number of people queuing and queue time in real time, and it will trigger alarm linkage when the number of people queued or queue time exceeds the threshold. It can display and export reports based on year, month, day, week, day or custom time. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265 +; Smart H.264 + |
| Video Frame Rate | Main stream: 4000 × 3000 @ (1–25 / 25 fps) sub stream: 704 × 576 @ (1–25 / 30 fps) third stream: 1280 × 960 @ (1–17 / 17 fps) Fisheye mode: 1O ( 4000 × 3000) 1P (4096 × 1024) 2P (2432 × 2432) 1R (1216 × 1216) 2R (2432 × 2432) 4R (2432 × 2432) 1O + 3R (2432 × 2432) * The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 4000 × 3000; 3280 × 2480; 2880 × 2160; (3M) 2048 × 1536; 1.3M (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H264: 8 kbps – 16384 kbps H265: 3 kbps – 16384 kbps |
| Day / Night | Auto (ICR) / Color / B / W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Car |
| Noise Reduction | 3D NR |
| Motion Detection | OFF / ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in mic | Yes |
| Audio Compression | PCM; G.711A; G.711Mu; G.726; G.723 |
| Alarm Event | No SD card; Full SD card; SD card durability warning; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in the area; stay detection; people counting; security exception |
| Network | |
| Network Port |
RJ-45 (10/100/1000 Base-T) |
| SDK and API |
Yes |
| Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP / MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability |
ONVIF® (Profile S / Profile G / Profile T); CGI; Milestone; Genetec; P2P (Only supported by general version) |
| User / Host |
20 |
| Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser |
IE: IE11, IE10 Chrome: 48.0.2564.116 Firefox: 48.0.2 Edge: 42.17134.1.0 |
| Management Software |
Smart PSS; DSS; DMSS |
| Port | |
| Audio Intput | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Intput | 2 channel in: 5mA 3V – 5V DC |
| Alarm Output | 2 channels out: 1,000mA 30V DC / 500mA 50V DC |
| Power | |
| Power Supply | 12V DC / PoE + |
| Power Consumption | Basic: 6.5W (12V DC); 6.1 W (PoE) Max. (ICR + IR intensity): 13 W (12V DC); 13.9 W (PoE) Heating: 3 W (12V DC); 3 W (PoE) |
| Environment | |
| Operating Temperature | –40 ° C to +60 ° C (–40 ° F to +140 ° F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –30 ° C to +70 ° C (–22 ° F to +158 ° F) |
| Protection | IP67; IK10 |
| Casing | Metal |
| Product Dimensions | 59.8 mm × Φ149.8 mm (2.35 "× Φ5.90") |
| Net Weight | 0.79 kg (1.74 lb) |
| Gross Weight | 1.21 kg (2.67 lb) |
Further details
 |
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
 |
New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism. |
 |
This camera has a resolution of up to 12 Megapixel (4000x3000) |
 |
1.85 mm lens with FishEye effect. Useful objective to have a complete overview of what we want to film. 180 ° vision |
|
|
This camera features Video compression in H.264 and H.265 format, the new Standard for video compression! |
 |
Main Stream: 4000 × 3000 @ (1–25 / 25 fps) Sub Stream: 704 × 576 @ (1–25 / 30 fps) Third Stream: 1280 × 960 @ (1–17 / 17 fps) |
 |
This camera features SMART DETECTION:
|
 |
This camera features INTELLIGENT FUNCTION: - Heat Map - Perosne count
|
 |
Infrared illuminator with REAL range up to 10M for night vision |
 |
This camera has 1 Audio input + 1 Audio output |
 |
This camera is also equipped with a microphone |
 |
This camera is equipped with the ROI function. The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
Automatic Gain Control, with the possibility of independently adjusting the sensitivity in particular conditions of use  |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
 |
3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and in motion. It is currently the most powerful solution for obtaining maximum results in low light conditions. |
 |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  |
 |
Protection level IP67 (Dust / Diving) |
 |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 |
12V DC power supply not included  |
 |
This product is covered by a 24 month warranty. |
