4IN1 CAMERA - ACTIVE DETERRENCE - 5MP | PIR ALARM | WHITE LIGHT AND SIREN | 3.6 MM FIXED OPTICS - IP67 - DAHUA - HAC-ME1500D-LS-S2 - S2 VERSION

Prodotto marchiato Dahua

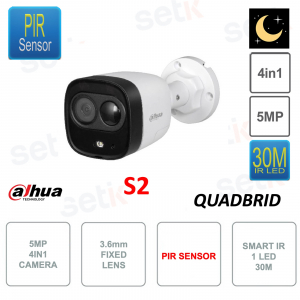

Outdoor camera 4in1 Active Deterrence HDCVI 5MP - Dahua - HAC-ME1500D-LS-S2
S2 VERSION - 5MP resolution - 3.6mm fixed lens - 5MP 1 / 2.7 "CMOS sensor - 4 technologies in 1 product: CVI / CVBS / AHD / TVI switchable - Output via 1x BNC port - Smart IR 1 LED illuminator 30m - Day / Night (ICR), BLC, HLC, DWDR, 2DNR, Mirror Mode, Privacy Masks - PIR sensor for motion detection (up to 10m) - Active Deterrence : White Light and Siren - Power supply: DC12 V ± 30% (power supply not included) - In plastic and metal - IP67 for outdoor use.

Telecamere MotionEye Sensore allarme PIR

Product details

Telecamera Dahua per la sorveglianza 5MP,2.8mm, Active deterrence
  • Active Deterrence HDCVI 4in1 5MP Camera - Dahua - HAC-ME1500D-LS-S2
  • S2 version
  • 4in1: CVI / CVBS / AHD / TVI switchable via coax
  • Resolution: Max. 25 fps @ 5MP
  • 3.6mm fixed lens
  • 5MP 1 / 2.7 "CMOS sensor
  • Integrated PIR sensor ( range 10 meters / 110 ° (installation between 2.2 ~ 2.5 meters height)
  • SPECIAL FUNCTIONS:
    - Active Deterrence with White Light and Siren
  • Smart IR 1 LED illuminator (about 30m)
  • Mirror Mode
  • Privacy Masks
  • Day / Night (ICR), BLC / HLC / DWDR / AWB / 3DNR
  • Long distance transmissions supported up to 700m
  • IP67 protection (dust / immersion) - Outdoor / indoor camera
  • 12V DC power supply (not included)
  • Material: Metal + plastic
  • Operating temperature: –40 ° C to +60 ° C
  • Dimension: 168.8mm × 79mm × 79mm (6.65 "× 3.11" × 3.11 ")
  • Weight: 0.32Kg
  • 24 months warranty

Data sheet

HAC-ME1500D-LS-S2

Technical Specifications

Room

Image Sensor

5MP

Max. Resolution

1 / 2.7 "CMOS

Pixel

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s – 1 / 100,000 s NTSC: 1/30 s – 1 / 100,000 s

S / N Ratio

0.005 Lux / F1.6, 30 IRE, 0 Lux IR on

Cover: Metal Rear: Plastic

Camera Dimensions

168.8 mm × 79 mm × 79 mm (6.65 "× 3.11" × 3.11 ")

Net Weight

0.32 kg (0.71 lb)

Gross Weight

0.45 Kg (0.99 lb)

Further details

Quadruple hybrid technology

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time, Analog , Ahd , HDCVI and HDVI .

Tecnologia AHDTecnologia HDCVITecnologia HDTVI

Switch Technologies:

The camera can switch from HDCVI to HDTVI, AHD or Analog via dip switch, on coaxial cable.

Sensore PIRIOT_icon.jpg

PIR sensor

This camera integrates a PIR sensor.
Thanks to the combination with the video motion sensor , the motion detection will be double and even more reliable, reducing false alarms.

Thanks to this, your hard disk will last longer and will not have false alarm recordings.

No more false alarms caused by strong wind or rain will be detected.

Active deterrence:

Report intruders with built-in white light and siren (light frequency and siren volume are user configurable)

  • Promptly report intruders and take action even before the break-in occurs
  • Improve accuracy with PIR and dual motion detection. Reduces storage space for motion based recording

 Alerts users in real time with alarm-on-coaxial and provides video proof with HDCVI video recording

Protects owners and property in the previously scheduled time frame and avoids disturbances in unnecessary hours thanks to the configurable alarm period

Telecamere Dahua con funzioni IoT Active Deterrence

Precise alarm:

HDCVI surveillance with PIR alarm sensor allows important events to be seen.
Double Motion Detection (Motion Dual-detection), for greater safety.

Risoluzione 5.0 Megapixel (2560x1920)

5MP resolution, means 12 times the resolution of a common D1 camera :
It guarantees adequate resolutions for any need.

5MP 1 / 2.7 "CMOS image sensor.

This camera has a fixed 3.6mm lens.

Illuminatore IR 20 Metri

Smart IR illuminator with 1 LED and maximum range up to 30m.

SMART IR

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the framed object.

DWDR function

D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
High Light Compensation Function Icon HLC (High Light Compensation) allows greater light management, in the presence of direct light (cars, torches, etc ...). It also prevents attempts to blur the image.

Example image of HLC High Light Compensation function
Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
ICR The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
BLC

BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entrances or exits of parking lots, registration of license plates, presence of special lights etc ...).

AGC

AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.
Example Automatic Gain Control Function

ATW (Auto Tracing White Balance)

ATW (Auto Tracing White Balance) refers to a modern technology that automatically and continuously adjusts the color balance of the camera according to the color temperature. ATW is a more advanced feature than AWB (Auto White Balance), and is very important as without it, images could be completely unusable.

Possibility to adjust the color balance also manually (MWB)

Protezione IP67 contro polveri e immersioni IP67 protection level (Dust / Diving), ideal for outdoor use.
12V DC power supply

12V DC power supply (not included)

Connettore Alimentatore 12V DC

Materiale con cui è stato creato il dispositivo This camera was made of metal and plastic.
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Download

Download the English brochure
Schema dimensioni hac-me1500d
