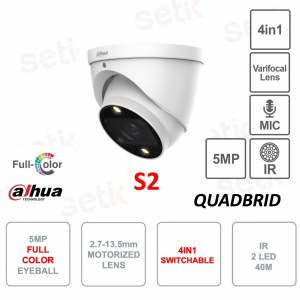

5MP 4in1 Outdoor Eyeball Camera with 2.7-13.5mm motorized varifocal lens - IR 40m - Microphone - S2 version

-58%

Outdoor camera HAC-HDW1509T-ZA-LED-S2 Eyeball HDCVI 5MP - S2 version - Resolution 2880 × 1620 progressive scan - 1x Switchable BNC 4in1 CVI / TVI / AHD / CVBS video output - 2.7-13.5mm motorized varifocal lens with autofocus - 5MP Full-Color CMOS sensor - IR up to 40 meters 2 LEDs - BLC, HLC, WDR 120dB, 3D-DNR, AGC, AWB, Mirror Mode - Privacy Masks - IP67 outdoor protection - Dahua Technology

Reference: HAC-HDW1509T-Z-A-LED-S2

Brand: Dahua

EAN: 6923172521781

FIND INSTALLER

https://www.setik.biz/en/cameras/7344-dahua-hac-hdw1509t-z-a-led-s2-5mp-4in1-outdoor-eyeball-camera-with-27-135mm-motorized-varifocal-lens-ir-40m-microphone-s2-version.html

€112.22

€267.18 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Data Sheet Further Details Download

DAHUA EYEBALL 4IN1 5MP CAMERA - 2.7-13.5MM MOTORIZED - IR 40M - FULL COLOR - IP67 - MICROPHONE - S2 VERSION - DAHUA - HAC-HDW1509T-ZA-LED-S2

5MP Dahua HDCVI Eyeball Full Color Outdoor Camera - HAC-HDW1509T-ZA-LED-S2
S2 version - 5Megapixel resolution - 2.7-13.5mm Motorized varifocal lens with auto-focus - 1xVideo BNC out, CVI / TVI / AHD / CVBS switchable
IR 40m - Full Color, for 24/7 color vision - Integrated microphone - 3D-DNR, BLC, HLC, WDR 120dB, AGC, AWB -
IP67 protection - Power supply NOT included - Metal body - 24 month manufacturer's warranty.

Product details

- Eyeball Full Color 5MP outdoor camera - Dahua - HAC-HDW1509T-ZA-LED-S2

- S2 version

- Resolution: 5 Megapixel 5MP

- 5MP CMOS image sensor

- 2.7-13.5mm motorized varifocal lens with autofocus

- Functions: 3D DNR, BLC, HLC, WDR120db, AGC, AWB

- Mirror Mode, Privacy Masks

- Smart Light

- Full Color: Allows 24/7 color viewing

- Quality IR illuminator with a maximum range of 40 meters with 2 illumination LEDs

- 1 Video BNC 4in1 CVI / TVI / AHD / CVBS switchable

- Microphone on board

- Supports long distance data transmission, up to 700m

- 12V DC power supply (power supply not included)
- IP67 protection (dust / immersion) ideal for use of the device in video surveillance systems set up outdoors

- Material: 100% metal shell

- Weight: 0.58Kg

- Dimensions: φ122mm × 104.8mm (φ4.8 "× 4.13")

- 24 month manufacturer's warranty

Data sheet

HAC-HDW1509T-ZA-LED-S2

Technical Specifications

Room

Image Sensor

5MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s – 1 / 100,000 s NTSC: 1/4 s – 1 / 100,000 s

S / N Ratio

> 65 dB

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time, Analog , Ahd , HDCVI and HDVI .

Tecnologia AHD Tecnologia HDCVI Tecnologia HDTVI

Switch Technologies:

The camera can switch from HDCVI to HDTVI, AHD or Analog via dip switch on coaxial cable

5MP resolution, means 12 times the resolution of a common D1 camera :
It guarantees adequate resolutions for any need.

Resolution: 2880 (H) × 1620 (V), progressive scan!

Tecologia full-color dahua

CMOS sensor with Full-Color Starlight Technology !

FULL-COLOR:

The camera is equipped with a 1 / 1.7 "wide aperture, high performance F1.2 lens.

With a greater amount of absorbed light and an advanced image processing algorithm, the camera exhibits impressive low-light performance with an outstanding balance of noise reduction and moving object blur.

2 WARM LIGHT LED:

With two additional warm light LEDs, the camera is able to deliver images with more vivid colors even in total darkness.

The camera is also equipped with a Smart Light mode that allows the camera to automatically and simultaneously manage the exposure time and the sensitivity to light to avoid overexposure of the objects in the center of the image.

The sensitivity and intensity of the LEDs can also be controlled remotely via the OSD menu.

This camera features 2.7-13.5mm motorized varifocal lens with auto focus auto focus capability.

Infrared illuminator 2 LEDs with an approximate maximum range of 40m.

BLC (Back Light Compensation) is one of the 3 possible Steps in managing images with Contrast, typical situations are (Entering or exiting car parks, Plaques, Particular lights, Entrances with shots from inside to outside, etc.) the compensation of light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations

Click to enlarge

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.

ATW (Auto Tracing White Balance) refers to a modern technology that automatically and continuously adjusts the color balance of the camera according to the color temperature. ATW is a more advanced feature than AWB (Auto White Balance), and is very important as without it, images could be completely unusable.
