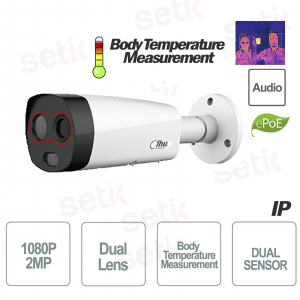

IP Thermal Camera Dahua Body Temperature Measurement and Thermal 7.5mm - Visible Optics 6mm

IP Thermal Camera Dahua Body Temperature Measurement and Thermal 7.5mm - Visible Optics 6mm
-57%

PRODUCT TO ORDER |
Available with Thermal / Visible 7.5 or 6mm 2MP optics.
Contact us for more information

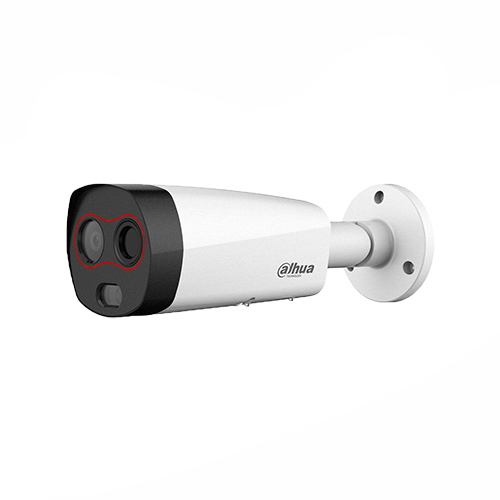

TPC-BF2221-TD7F6-HTM IP Dahua professional Hybrid Thermal Camera with Body Temperature Measurement and Active Deterrence . Dual-Lens, dual thermal and visible optics and Dual-Sensor , dual sensor (1x Thermal Vanadium oxide uncooled + 1x CMOS 1 / 2.8 "). 2MP resolution for visible optics, H.265, ROI, 50M IR Illuminator, Palette Colors, Alarm, Audio, MicroSD slot ( 256GB - Not included) , RS485, external PoE / ePoE. TPC-BF2221-TD7F6-HTM - TPC-BF2221-T



Reference: TPC-BF2221-TD7F6-HTM

Brand: Dahua

FIND INSTALLER

€3,057.89

€7,111.38 -57%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno



IP DAHUA PROFESSIONAL THERMAL CAMERA WITH BODY TEMPERATURE MEASUREMENT AND ACTIVE DETERRENCE

Made by Setik Dahua Professional Thermal PoE IP Camera
Dual-Lens (thermal 7/8 2MP visible) - Resolution 2MP (visible optical) - Visible Optical sensor (1 / 2.8 "CMOS)
50M IR illuminator - ROI - Defog - Audio / Alarm - RS485 - MicroSD slot
➽ ON BOARD: Body Temperature Measurement

Clicca per guardare il video

WHAT IS THERMAL DETECTION?

Any object with a temperature above absolute zero (-273.15 ° C) emits radiation. Infrared radiation lies between the visible spectrum (0.4-0.75um) and microwaves (> 15um). Even if we cannot see them, we perceive them every day: the sun and fire are sources of infrared radiation that we can perceive through heat. Image quality depends on the temperature difference and higher differentials produce better images. Here's how we distinguish the temperature difference in thermal imaging.


THERMAL DETECTION AND MEASUREMENT OF BODY TEMPERATURE

Over the years, thermal detection has evolved and thanks to the multiple requests and numerous areas of use in surveillance, we have come to have thermal cameras that are able to measure the body temperature of people .
Useful both for standard monitoring (entrance / exit, kitchen, kindergartens) and for specific monitoring , for example in the event of epidemics , in airports, train stations, hospitals and schools.


Product details

IP Telecamera Termica Dahua professionale ONVIF® PoE da esterno
  • PoE IP professional Dahua thermal camera
  • ➽ ON BOARD: Body Temperature Measurement (Range 30 ° C + 45 ° C / Max Accuracy (± 1 ° C, ± 1%)
  • Do you want more accuracy? With the Black-Body the camera reaches up to ± 0.3 ° C, ± 0.3% ( Black-body NOT INCLUDED )
  • Dual-Lens technology, dual optics (Thermal / Visible)
  • Dual-Sensor Technology , (1x Thermal Vanadium oxide uncooled + 1x CMOS 1 / 2.8 ")
  • Resolution 256x192 (thermal optics) / Up to 1080P 2MP (visible optics)
  • Visual spectrum from 8 to 14 µm
  • Thermal Sensitivity <50mK
  • ROI
  • 50MT IR illuminator
  • Alarm: 2 inputs and 1 outputs
  • Audio: 1 audio input and 1 audio output
  • 1 RS485 port
  • 1 microSD-Card slot (Max 256GB - not included)
  • Power supply NOT included

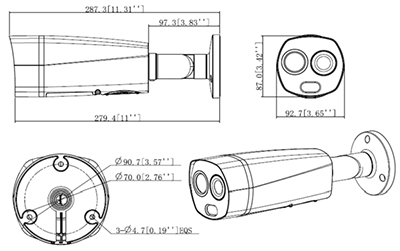

  • Dimensions: 365mm × 175mm × 176mm (With bracket)
  • IP67 protection
  • Material: Metal
  • 24 months warranty

Data sheet

Model TPC-BF2221-TD7F6-HTM
Thermal
Effective Pixels 256 × 192
Spectral Range 8μm – 14μm
Thermal Sensitivity (NETD) ≤50mK@f/1.0
Focal Length 7.5mm
Field of View H: 32.4 °
V: 24.6 °
Focus Mode Athermalized
Openings F / 1.0
Digital Detail Enhancement (DDE) Yes
AGC Car; Manual
Noise Reduction 2D NR; 3D NR
Image Flip 180 ° / Mirror
Color Palettes 18 (Whitehot / Blackhot / Ironrow / Icefire / Fusion / Rainbow / Globow / Iconbow1 / Iconbow2 .etc)
Temperature Measurement Range 30 ° C to 45 ° C (86 ° F to 113 ° F)
Accuracy temperatures ± 0.3 ° C (with black body) when the environment temperature is 10 ° C to 30 ° C (50 ° F to 86 ° F)
Visible
Effective Pixels 1 / 2.8 inch CMOS
Spectral Range 1920 × 1080
Max. Resolution 2MP
Electronic Shutter Speed 1 / 30000s – 1s
Min. Illumination Color: 0.01 Lux Black & white: 0.001 Lux 0 Lux (IR on)
IR Illumination Distance 50 m (164 ft)
IR Illuminator On / Off Control Car; Manual
Focal Length 6 mm
Openings F / 2.0
Field of View H: 52.8 °
V: 30.3 °
Focus Mode Fixed
Close Focus Distance 1.6 m (5.2 ft)
BLC Yes
WDR Yes
HLC Yes
White Balance Auto / Manual / Indoor / Outdoor / Tracking / Sodium lamp / Street lamp / Natural
AGC Car; Manual
Noise Reduction 2D NR; 3D NR
S / N Ratio ≥ 55 dB
Region of Interest (RoI) Yes
Image Flip 180 ° / Mirror
Exposure Compensation Yes
Video and Audio
Video Compression H.265 / H.264M / H.264H / H.264B
Resolution Thermal Main stream: 1280 × 1024, 1280 × 960, 1280 × 720, 400 × 300. 1280 × 960 by default Sub stream: 640 × 512, 640 × 480, 400 × 300. 400 × 300 by default Visible Main stream: 1080P (1920 × 1080), 720P (1280 × 720), D1 (704 × 576). 1080P by default Sub stream: D1 (704 × 576), CIF (352 × 288). CIF by default
Frame Rate Thermal (50Hz): Main stream: 1fps – 25fps adjustable. 25fps by default; sub stream: 1fps – 25fps adjustable. 15fps by default. Visible (50Hz): Main stream: 1fps – 25fps adjustable. 25fps by default; sub stream: 1fps – 25fps adjustable. 15fps by default.

Audio Compression

G.711a; G.711mu; AAC; PCM
Network
Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4 / v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x;
Edge Storage Micro SD card (256G)

Interoperability

ONVIF®; CGI; DAHUA SDK

Browser

IE: IE8 and the later, and explorer with IE core Google: 42 and the earlier Firefox: 42 and the earlier

User / Host

20 users at most (total bandwidth 64Mbps)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
Certification
Certifications CE: EN55032: 2015; EN61000-3-2: 2014 FCC: CFR 47 FCC Part15 subpart B; ANSI C63.4-2014
Port
Ethernet 1 10M / 100M Ethernet port (RJ-45)
Audio Input 1
Audio Output 1
Alarm Input 2
Alarm Output 1
RS-485 1
Power
Power Supply 12V ± 20% DC; POE (802.3af); ePOE
Power Consumption Basic consumption: <8W (12V DC) Max consumption: <18W (12V DC, without power adapter)
Operating Temperature 10 ° C to + 30 ° C (50 ° F to 86 ° F)
Operating Humidity ≤93% @ 40 ° C (104 ° F)
Ingress Protection IP67
Dimensions 365mm × 175mm × 176mm (With bracket)
Net Weight ≤1.4 kg (3.09 lb)
Gross Weight ≤1.9 Kg (4.19 lb)

Further details

Thermal Camera ... what is it? and how to choose it? Body Temperature Measurement? What does it mean?
Read our articles!

- Radiometric technology applied to the measurement of body temperature
- Thermal camera: what it is and why to choose it for video surveillance

PoE power supply

The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.

protocollo epoe
Nuova serie Eco-Savvy

protocollo epoe Dahua's ePoE technology, designed in-house, adopts advanced 2D-PAM3 modulation from the physical layer and realizes full duplex transmissions over 800 meters at the speed of 10 Mbps, or 300 meters at the speed of 100 Mbps via Cat 5 or coaxial cable.

Dahua ePoE technology offers a new way to realize long distance transmission between IP camera and network switch. It allows for more flexible surveillance system design, improves reliability, and saves construction and wiring costs.

This camera is a THERMAL CAMERA with BODY TEMPERATURE MEASUREMENT .

Temperature Measurement Parameters
Measurement range : 30 ºC ~ 45 ºC
Accuracy: ± 0.3%


DID YOU KNOW THAT ...

With the Black-Body you will increase the accuracy of the camera! *

Accuracy:
- Without black-body: Max (± 1 ° C, ± 1%)
- With black-body Max (± 0.3 ° C, ± 0.3%)

* black-body not included

Dual-Lens Technology!
This camera is equipped with 2 lenses , one 7.5mm thermal and one 6mm visible



Dual-Sensor Technology!
This camera is equipped with 2 image sensors , Uncooled VOx Microbolometer for Thermal optics and 1 / 2.8 "2M CMOS for visible optics.

Deterrenza attiva

Active deterrence:

Report intruders with built-in white light and siren

Illuminatore IR fino a 50mt

Infrared illuminator with 50MT range


This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the framed object.
Tecnologia Smart IR

Full HD It is extremely useful to have Inputs / Outputs in a CCTV system in order to control relays or activate a recording following an event.
This camera with 2 inputs and 1 output
Ingresso Audio This camera has 1 inputs + 1 audio output
Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Funzione ROI This camera is equipped with the ROI function.

The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
DEFOG
It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Funzione Motion Detection This camera features the Motion function by connecting it to a recording device having alarm inputs.


RS485 supported

MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256Gb - not included

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

This camera was made of metal

Dual Encoding This product is covered by a 24 month warranty.

Download

Download the English brochure
IP Telecamera Termica dahua professionale 2MP
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
