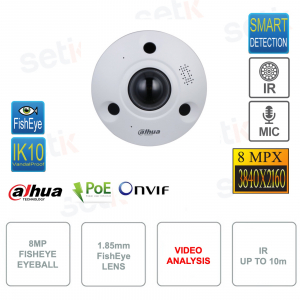

IPC-EBW8842-AS - IP Camera PoE ONVIF® Fisheye - WizMind - 8MP - 1.85mm lens - Video Analysis - Alarm - Mic

IPC-EBW8842-AS - IP Camera PoE ONVIF® Fisheye - WizMind - 8MP - 1.85mm lens - Video Analysis - Alarm - Mic
-58%

IPC-EBW8842-AS Dahua external IP camera PoE FishEye for video surveillance 8MP - CMOS sensor 1 / 1.7 "8MP - Fixed lens 1.85mm Fisheye - Triple Stream - Video Analysis - IR LED 10m - Video Codec H.265 + - BLC - HLC - DWDR - Day / Night (ICR) - AWB - AGC - ROI - 3DNR - Defog - Privacy Mask - Motion Detection - MicroSD slot up to 256GB (not included) , Audio 1in / 1out , Integrated microphone and Alarm 2in / 2out - RJ 10/100 / 1000Mbps - IP67 and IK10 protection.



Reference: IPC-EBW8842-AS

Brand: Dahua

FIND INSTALLER

€796.78

€1,897.10 -58%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


OUTDOOR IP POE ONVIF® CAMERA - ULTRA HD 8MP - FISHEYE - IR LED 10M - 1.85MM OPTICAL - AUDIO - ALARM - IP67 AND IK10

Prodotto Dahua
FishEye- Dahua outdoor PoE ONVIF® IP camera - IPC-EBW8842-AS
Resolution 8MP 3280 (H) × 2480 (V) - Fixed lens 1.85mm - Triple Stream - Codec H.265 + - CMOS sensor 1 / 1.7 "8MP - Video Analysis : line crossing, intrusion, people counting, heat map - Audio 1in / 1out - Alarm 2in / 2out - BLC - HLC - DWDR - Day / Night (ICR) - AWB - AGC - ROI - 3DNR - Defog - Privacy Mask - Motion Detection - Integrated Microphone - MicroSD slot (not included) up to 256GB - 24 month manufacturer's warranty.

Product details

  • Outdoor PoE ONVIF® FishEye IP camera - Dahua - IPC-EBW8842-AS
  • 8MP resolution
  • Fixed Lens 1.85mm Fisheye Panoramic Vision
  • 1 / 1.7 "8MP CMOS sensor
  • Video compression H.265 + / H.264 +
  • Day / Night (ICR), 3DNR, AWB, AGC, BLC
  • Video Analysis: Line crossing , Intrusion , Heat map, people count,
  • Motion Detection, ROI (Region of Interest), Defog
  • IR LED illuminator with maximum range up to 10 meters
  • ONVIF® standard
  • MicroSD slot up to 256GB (not included)
  • 1 Integrated Audio In + 1 Out
  • Integrated microphone
  • 2 inputs + 2 alarm outputs
  • IP67 protection (Dust / Diving)
  • IK10 protection (Vandalism)
  • RJ45 10/100 / 1000Mbps Ethernet network interface
  • 12V DC power supply (not included) / PoE
  • Dimension: 59.8 mm × Φ149.8 mm (2.35 "× Φ5.90")
  • Weight: 0.79 kg (1.74 lb)
  • Metal shell
  • Operating temperature: –40 ° C to +60 ° C (–40 ° F to +140 ° F)
  • 24 months warranty

Data sheet

IPC-EBW8842-AS

Technical Specification

Room

Image Sensor

1 / 1.7 "CMOS

Max. Resolution

3280 (H) × 2480 (V)

ROM

2 GB

RAM

4 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto / Manual 1/3 s – 1 / 100,000 s

Min. Illumination

0.01 Lux@F2.0 (Color, 30 IRE)

0.001 Lux@F2.0 (B / W, 30 IRE) 0 Lux (Illuminator on)

S / N Ratio

> 56 dB

Illumination Distance

10 m (32.81 ft) (IR)

Network

Network Port

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP / MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability ONVIF® (Profile S / Profile G / Profile T); CGI; Milestone; Genetec; P2P (Only supported by general version)
User / Host 20
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE: IE11, IE10 Chrome: 48.0.2564.116 Firefox: 48.0.2 Edge: 42.17134.1.0
Management Software Smart PSS; DSS; DMSS
Certification
Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU FCC: 47 CFR FCC Part 15, Subpart B UL / CUL: UL62368-1 & CAN / CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 2 channel in: 5mA 3V – 5 VDC
Alarm Output 2 channels out: 1,000mA 30 VDC / 500mA 50 VDC
Power
Power Supply 12 VDC / POE + (802.3at)
Power Consumption Basic: 6.5 W (12 VDC); 6.1 W (PoE) Max. (ICR + IR intensity): 13 W (12 VDC); 13.9 W (PoE) Heating: 3 W (12 VDC); 3 W (PoE)
Environment
Operating Temperature –40 ° C to +60 ° C (–40 ° F to +140 ° F)
Operating Humidity ≤95%
Storage Temperature –30 ° C to +70 ° C (–22 ° F to +158 ° F)
Protection IP67; IK10
Structure
Casing Metal
Product Dimensions 59.8 mm × Φ149.8 mm (2.35 "× Φ5.90")
Net Weight 0.79 kg (1.74 lb)
Gross Weight 1.21 kg (2.67 lb)

Further details

ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems
PoE power supply The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.
4K Risoluzione Ultra HD New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.
This camera has 8Mpx 3480x2160 resolution

1 / 1.7 "CMOS sensor, 8MP.

This camera supports the following resolutions:
3280 × 2480; 2880 × 2160; (3M) 2048 × 1536; 1.3M (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240).

Fisheye obiettivo

1.85mm lens with FishEye effect.
Useful objective to have a complete overview of what we want to film.
180 ° vision




Shooting with fisheye lens IPC-EBW81230 camera

H265 Video Compressione

This camera features Video compression in H.264 + and H.265 + formats, the new Standard for video compression!

Main stream: 3280 × 2480 @ (1–25 / 30 fps)
sub stream: 704 × 576 @ (1–25 / 30 fps)
third stream: 1280 × 960 @ (1–25 / 30 fps) Fisheye mode:

1O (3280 × 2480)
1P (4096 × 1024)
2P (2432 × 2432)
1R (1216 × 1216)
2R (2432 × 2432)
4R (2432 × 2432)
1O + 3R (2432 × 2432)

* The above values represent the maximum frame rate for each stream;
for multiple strem, the values will be subject to the total encoding capacity.

This camera features SMART DETECTION:
- Line crossing recognition
- Intrusion recognition
- Counting of people



This camera features INTELLIGENT FUNCTION:

- Heat Map


Illuminatore IR fino a 10mt

Infrared illuminator with REAL range up to 10M for night vision

Interfaccia audio

This camera has 1 Audio input + 1 Audio output

Compatible with Setik MICS1 Microphones MICS2 MICS3

Microfono integrato

This camera is also equipped with a microphone on board!

This camera has alarm inputs and outputs This camera has 2 inputs + 2 alarm outputs.
Funzione ROI This camera is equipped with the ROI function.

The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
DEFOG
It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
ICR

The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Automatic Gain Control Function Icon Automatic Gain Control, with the possibility of independently adjusting the sensitivity in particular conditions of use
Example Automatic Gain Control Function

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations

3D-DNR 3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and in motion. It is currently the most powerful solution for obtaining maximum results in low light conditions.

D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism

MicroSD Recording MicroSD memory card slot up to 256GB (not included).
12VDC_Aliment 12V DC power supply not included
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
