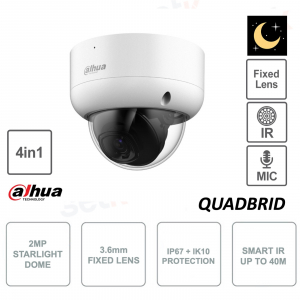

Dahua - 4in1 Dome Camera - 2MP - 3.6mm Lens - Starlight - Smart IR 40m - Outdoor - Microphone

Product details

Data sheet

HAC-HDBW1231EA-A
Technical Speci? Cations
Room
Image Sensor	1 / 2.8 "CMOS
Max. Resolution	1920 (H) × 1080 (V)
Pixel	2MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25 s – 1 / 100,000 s NTSC: 1/30 s – 1 / 100,000 s
S / N Ratio	> 65 dB
Min. Illumination	0.002 Lux / F1.6, 30 IRE, 0 Lux IR on
Illumination Distance	40 m (131.2 ft)
Illuminator On / Off Control	Car; manual
Illuminator Number	3 (IR light)
Pan / Tilt / Rotation Range	Pan: 0 ° –355 ° Tilt: 0 ° –80 ° Rotation: 0 ° –355 °
Lens
Lens Type	Fixed lens
Mount Type	M12
Focal Length	3.6 mm
Max. Aperture

This camera has a resolution of 2Megapixel 1080P.

1 / 2.8 "CMOS sensor with STARLIGHT technology.

STARLIGHT:

By adopting a high performance sensor and large aperture lens, this camera is able to provide a more colorful image even in low ambient light conditions. Full-color starlight cameras are perfect for low-light applications that exceed 1 lux, such as parking lots, urban streets, schools, museums, etc.

* If the lighting conditions are in total darkness, the video cannot be used for monitoring.

This camera features a fixed 3.6mm lens.

Infrared illuminator with REAL range up to 40m for night vision, with 3 lighting LEDs.

This camera features 1 built-in high quality microphone.

Allows you to adapt the lens to Night / Day vision

The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
ULTRA WDR up to 130dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 130dB while managing very strong contrast levels.
BLC (Back Light Compensation) is one of the 3 possible Steps in managing images with Contrast, typical situations are (Entering or exiting car parks, Plaques, Particular lights, Entrances with shots from inside to outside, etc.) the compensation of light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations

Click to enlarge

AGC is an integrated signal amplifier that allows vision even in critical conditions.
It is automatic, and therefore does not require specific settings.

3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and in motion. It is currently the most powerful solution to obtain maximum results in low light conditions.

Protection level IP67 (Dust / Diving)

IK 10 is the highest level of protection from direct damage.
This allows the camera to be used even if there is a risk of vandalism.

This camera was made with a plastic dome cover, metal body and pedestal.

Power supply: 12 V ± 30% DC

Power supply NOT included.

This product is covered by a 24 month warranty.
