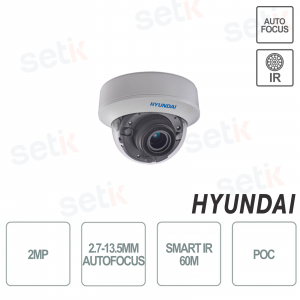

HYU-548N Hyundai DOME PoC TVI video surveillance camera with 60 METERS Smart IR illuminator for indoor use , 2 Megapixel resolution, 2.7-13.5mm varifocal lens with autofocus, HDTVI video output, 1080P digital resolution, 3D-DNR, WDR 130dB, AGC, privacy mask 4-zone, OSD. Hyundai Security
FIND INSTALLER
DOME CAMERA TVI PoC HYUNDAI 2 MEGAPIXEL 2.7-13-5MM - AUTOFOCUS - HDTVI - IR 60 M
Indoor - 2 MP resolution - 2.7-13.5 mm varifocal lens with autofocus
Smart IR illuminator 60 Meters - OSD - WDR 130dB - AGC - Privacy mask
Hyundai 3 Year Extended Warranty!
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
This camera features a resolution of 2Megapixel 2 MP! 2 megapixel sensor |
 |
This camera is equipped with 2.7-13.5mm varifocal lens |
 |
POC - POWER OVER COAX: This new technology makes it possible to power common coaxial cameras directly through the video cable, on which the signal is sent using the same transmission medium. This technical concept is very similar to PoE, already widely used on IP devices and even earlier on old analog telephones. The coverage in terms of distance of this technology depends on the quality of the cable and the power supply required by the camera, in any case the guaranteed distances are greater than those of the typical 12V power supplies, which have a much greater loss. Below you will find a purely indicative table of Dahua:
|
 |
Smart IR LED illuminator and maximum range 60 meters |
|
|
The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: ATW, AGC, BLC, ATW, etc. OSD menu via coaxial |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
 |
AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
 |
ULTRA WDR up to 130dB
|
 |
A 12VDC power supply is required for the operation of this camera (not included)  |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-548N |
| Room | |
| Image Sensor | 2MP CMOS |
| Resolution | 2MP |
| Digital Resolution | 1080P (1920x1080) at 25 ips |
| Min. Illumination | 0.003 lux F1.2 (color, AGC On) / 0 lux IR On |
| Lens | 2.7 ~ 13.5mm motorized lens with autofocus |
| IR LED | Smart IR: 60 meters |
| OSD | Via coaxial |
| Horizontal Angle of View | 103 ° ~ 32.1 ° |
| Day / Night | ICR |
| 3D DNR | Yes |
| AGC | Yes |
| BLC | Backlight compensation |
| AWB | Yes |
| WDR | WDR 130dB |
| Zones | 4 programmable zones video sensor |
| Privacy mask | Privacy mask with 4 programmable zones |
| Indoor Use | Yes (Not suitable for exterior) |
| PoC | Supports PoC.af (Power over Coax) which works especially with ZVR PoC |
| Material | Plastic shell |
| Humidity | 90% humidity (non-condensing) |
| Operating Conditions | -40 ° C ~ + 60 ° C |
| Power Supply | 12V DC (± 25%) |
| Power Consumption | 7W |
| Dimensions | Ø136 x 101.9 mm |
| Weight | 455g |
| 3AXIS | 0 ° ~ 340 ° (PAN), 0 ° ~ 75 ° (TILT), 0 ° ~ 355 ° (Rotation) |
