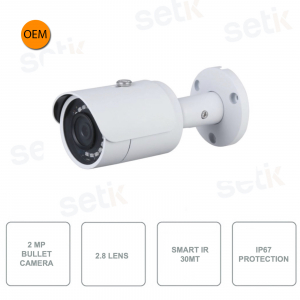

OEM Dahua Series | Outdoor IP camera ONVIF PoE Dahua IPC-B2FG2 equivalent of the IPC-HFW1230S1-S5 , 2MP 2 Megapixel 1080P, 2.8mm lens, CMOS sensor 1 / 2.8 " H.265 . IR LED 30MT, WDR Digital , IP67.
FIND INSTALLER
€75.03
€183.00 -59%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
|
|
ONVIF® POE IP CAMERA - 2 MEGAPIXEL 2.8MM - SMART IR 30MT
ONVIF® PoE outdoor IP camera - Dahua2Megapixel Resolution - 1 / 2.8 "CMOS Sensor - 2.8mm Fixed Lens - H.265 Compression.
AWB, AGC, BLC, HLC, digital WDR, 3D-DNR, 4 ROI, mirror, privacy mask. ONVIF®, CGI, P2P. IP67
Dahua OEM series: Without Dahua logos - 12V DC power supply (not included) - 24 months warranty
Product details
- ONVIF® PoE outdoor IP camera - Dahua
- Dahua OEM Series : Equivalent to the Dahua IPC-HFW1230S1-S5 model (aesthetics, firmware). Without Dahua logos
- Resolution: 2 Megapixel 2MP
- 1 / 2.8 "Progressive Scan CMOS image sensor
- Optics: 2.8mm
- Video Compression H.265
- DWDR, day / night with ICR filter, 3D-DNR, AWB, AGC, BLC, HLC, mirror protection, privacy mask
- Smart IR 18 LED 30MT illuminator
- IP67 protection (Dust / Immersion)
- 12V DC Power Supply (Not Included)
- Dimensions: 164.6mm × Φ71.8mm
- Metal and Plastic
- 24 Months Warranty
Data sheet
| Model | IPC-B2FG2F |
| Room | |
| Image Sensor | 1 / 2.8 "CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM / RAM | 16 MB / 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1/3 s – 1 / 100,000 s |
| Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B / W, 30 IRE) 0 lux (Illuminator on) |
| S / N Ratio | > 56 dB |
| Illumination Distance | 30 m (98.4 ft) (IR) |
| Illuminator On / Off Control | Car; manual |
| Illuminator Number | 18 (IR LED) |
| Pan / Tilt / Rotation Range | Pan: 0 ° –360 ° Tilt: 0 ° –90 ° Rotation: 0 ° –360 ° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F2.0 |
| Field of View | Horizontal: 102 °; Vertical: 54 °; Diagonal: 120 |
| Iris Control | Fixed |
| Close Focus Distance | 0.5 m (1.6 ft) |
| Video | |
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265 +; Smart H.264 + |
| Video Frame Rate | Main stream: 1920 × 1080 @ 1–25 / 30 fps Sub stream: 704 × 576 @ 1–25 fps 704 × 480 @ 1–30 fps * The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | Auto (ICR) / Color / B / W |
| Day / Night | Yes |
| BLC | Yes |
| HLC | DWDR |
| WDR | Car; natural; street lamp; outdoor; manual; regional custom |
| White Balance | Manual; car |
| Gain Control | 3D NR |
| Noise Reduction | OFF / ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 Areas) |
| Smart Illumination | Yes |
| Image Rotation | 0 ° / 90 ° / 180 ° / 270 ° (Support 90 ° / 270 ° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; Trusted boot; Trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast |
| Interoperability | ONVIF® (Profile S); CGI; P2P |
| User / Host | 6 (Total bandwidth: 36M) |
| Storage | FTP |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
| Power | |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption | Basic: 1.5 W (12 VDC); 2.3 W (PoE) Max. (ICR + H.265 + IR intensity): 4.3 W (12 VDC); 5.5 W (PoE) |
| Environment | |
| Operating Conditions | –40 ° C to +60 ° C (–40 ° F to +140 ° F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –40 ° C to +60 ° C (–40 ° F to +140 ° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal + plastic |
| Dimensions | 164.6 mm × Φ71.8 mm (6.5 "× Φ2.8") |
| Net Weight | 39 kg (0.9 lb) |
Further details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports the Onvif version |
||
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. | ||
|
|||
 |
This camera features 2 Megapixel 1080P FULL HD resolution! |
||
 |
2.8mm fixed lens |
||
|
|
Infrared illuminator with REAL range up to 30MT for night vision. |
||
 |
It allows to adapt the lens to the Night / Day vision and the consequent management of the IR illuminator automatically. |
||
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
||
|
|||
 |
BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entrances or exits of parking lots, registration of license plates, presence of special lights etc ...). |
||
 |
Protection level IP67 (Dust / Diving) |
||
 |
12V DC power supply NOT included!
|
||
|
|||
 |
This product is covered by a 24 month warranty. | ||
