HYU-925 Fixed IP Dome Camera Onvif PoE Hyundai . Resolution 3200x1800, CMOS 1 / 2.8 "6 Megapixel. Fixed lens 2.8mm. Smart IR 40M. Video compression H.264 + / H.265 +. Triple Stream. Intelligent functions (IVS): Perimeter protection, supports classification of people / vehicles . ICR, OSD, AGC, AWB, BLC, HLC, WDR 120 dB, 3D-DNR, Video sensor, Privacy Mask. 1x RJ45 (10 / 100M) self-adaptive, microSD slot up to 256 GB. 3 Axis . IP67 protection .
ONLY KEY AND IMG ARE MISSING.
FIND INSTALLER

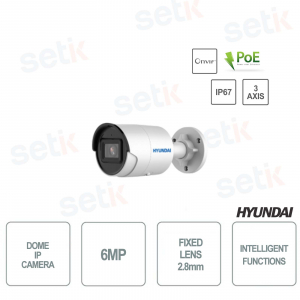

IP FIXED DOME CAMERA HYUNDAI 6 MEGAPIXEL - INTELLIGENT FUNCTIONS (IVS) - SMART IR 40M - IP67
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | ONVIF® STANDARD Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. |
 | PoE - Power over Ethernet The advantage of a PoE camera is obvious. It allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system. A PoE camera guarantees constant voltages and simple installation. |
| FIXED OPTICS This camera is equipped with 2.8mm fixed lens |
 | This camera features a resolution of 6Megapixel 6 MP! |
 | 2.8mm fixed lens |
| IR LIGHTING Smart IR illuminator and maximum range 40 meters ! |
|
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
|
 | This camera also features INTELLIGENT FUNCTIONS: - Perimeter protection: line crossing detection, intrusion detection, support classification of people and vehicles |
 | The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
| The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: WB, AGC, AE, DNR, etc. |
 | BLC (Back Light Compensation) It is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
 | This camera is equipped with the ROI function. The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
|
 | AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
 | Arm with movement on 3 axes |
 | Possibility to insert Micro SD up to a maximum of 256Gb - not included |
 | IP67: Guarantees protection from dust and immersion |
 | A 12V DC power supply is required for the operation of this camera (not included)  |
 | This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-925 |
| Specifications | |
1 / 2.8 "6 megapixel CMOS image sensor | |
Resolution: 6MP (3200x1800), 4MP (2688x1520), 1080P (1920x1080), 720P (1280x720), | |
VGA (640x480), VGA (640x360) | |
Video compression H.265 +, H.265, H.264 +, H.264 and MJPEG | |
Stream 1: 6MP (20 ips), 4MP, 1080P, 720P (25 ips) | |
Stream 2: VGA (25 ips) | |
Stream 3: 1080P, 720P, VGA (10 ips) | |
Day / night mode with removable mechanical filter (ICR) | |
0.005 lux F1.6 (color, AGC on), 0 lux IR on | |
Intelligent IR: 40 meters | |
Fixed 2.8mm lens | |
Viewing angle: 107 ° (H), 57 ° (V), 128 ° (D) | |
Imaging Modes: BLC, HLC, WDR 120dB, 3D-DNR | |
Image settings: Rotation, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain and white balance adjustable via client software or web browser | |
It supports video sensor, 1 region of interest (ROI) for 1 streaming and privacy mask | |
Perimeter Protection: Line crossing detection, intrusion detection, support classification of people and vehicles | |
MicroSD card slot up to 256GB (card not included) | |
Network interface: RJ45 (10 / 100M) self-adaptive | |
Network protocols: TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL / TLS , PPPoE, SNMP | |
Remote viewing with browser (IE10, IE11, Chrome 57+, Firefox 52+) and smartphone | |
IOS and Android | |
Compliant with ONVIF® (S / G) and ISAPI | |
Up to 32 users | |
Up to 6 simultaneous views | |
Power supply: 12V DC (± 25%) with reverse polarity protection | |
Consumption: 6W | |
Supports PoE (802.3 af, Class 3) | |
PoE consumption: 7.2W | |
-30 ° C ~ + 60 ° C operating temperature | |
Humidity: <95% (non-condensing) | |
Degree of protection IP67 | |
Aluminum housing | |
Dimensions: Ø70 x 161.7 mm | |
Weight: 485 g | |
3 AXES: 0 ° ~ 360 ° (PAN), 0 ° ~ 90 ° (TILT), 0 ° ~ 360 ° (Rotation) | |
