Dahua HAC-HDBW2241F-A-S2 outdoor camera with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG, 2MP 1080P FULL HD resolution, 3.6mm fixed lens and 2MP CMOS sensor with Starlight technology. Smart IR 8 LED 30M Illuminator, Day / Night (ICR), BLC, HLC, WDR 130dB , Microphone , IP67 and IK10 protection. S2 version
![](https://cdn.setik.biz/img/click.png)
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
![meno](https://cdn.setik.biz/storage/images/site/Dahua_Logo.png)

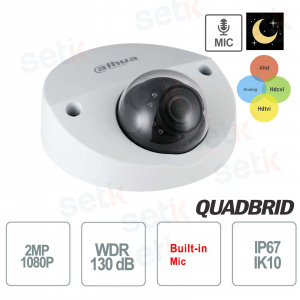

OUTDOOR CAMERA DOME DAHUA 2MEGAPIXEL 3.6MM - 4IN1 - STARLIGHT - IK10 - MICROPHONE
![Made by Dahua Prodotto marchiato Dahua](https://www.setik.biz/img/m/13-prod_large.jpg)
4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG - 3.6mm optics - 2MP Starlight CMOS sensor
Smart IR 8 LED 30M Illuminator - Day / Night (ICR), BLC, HLC, WDR 130dB
Microphone - IK10 protection (Vandalism) - IP67 protection - Power supply NOT included - 24 month warranty
Product details
![4in1 Dome Camera - HAC-HDBW2241F-A-S2 Telecamera Dahua 1080P 4in1 CVI / TVI / AHD /Analogico 1080P Starlight Audio Mic WDR 120db](/storage/images/Articoli/HAC-HDBW2241F-A_SMALL.jpg)
- Dahua 4in1 outdoor camera
- S2 version
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG
- 2MP CMOS image sensor with Starlight Technology !
- Starlight technology: Color vision even at night
- 2Megapixel 1080P FULL-HD resolution
- 3.6mm fixed lens
- Day / Night (ICR), BLC, HLC
- WDR 130dB
- Smart SMD IR 8 LED 30M Illuminator
- Integrated microphone
- IP67 protection (Dust / Immersion)
- IK10 protection (Vandalism)
- 12V DC power supply (not included)
- CVI / TVI / AHD / CVBS video output from a BNC port (DIP switch)
- Material: Metal
- Dimension: Φ106mm × 50.3mm (Φ4.17 "× 1.98")
- 24 months warranty
Data sheet
Model | HAC-HDBW2241F-A-S2 | |
Room | ||
Image Sensor | 2MP CMOS | |
Effective Pixels | 1920 (H) × 1080 (V) | |
Pixel | 2MP | |
Scanning System | Progressive | |
Electronic Shutter Speed |
PAL: 1/25 s – 1 / 100,000 s |
|
Minimum Illumination | 0.001 Lux / F1.6, 30 IRE, 0 Lux IR on | |
S / N Ratio | > 65 dB | |
IR Distance | 30 m (98.4 ft) | |
IR On / Off Control | Car; manual | |
IR LEDs | 8 (IR light) | |
Pan / Tilt / Rotation Range | Pan: -30 ° -30 ° Tilt: 0 ° –80 ° Rotation: 0 ° –360 ° |
|
Lens | ||
Lens Type | Fixed lens | |
Mount Type | M12 | |
Focal Length | 3.6mm | |
Max openings | F1.6 | |
Field of view | H: 109 °; V: 58 °; D: 127 ° | |
Iris Type | Fixed iris | |
Close Focus Distance | 1.1 m (3.6 ft) | |
Video | ||
Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) | |
Frame Rate | CVI: PAL: 1080p @ 25fps; NTSC: 1080p @ 30fps; AHD: PAL: 1080p @ 25fps; NTSC: 1080p @ 30fps; TVI: PAL: 1080p @ 25 fps; NTSC: 1080p @ 30fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H | |
Day / Night | Auto switch by ICR | |
BLC | BLC / WDR / HLC | |
WDR | 130 dB | |
White Balance | Car; manual | |
Gain Cons | Car; manual | |
Noise Reduction | 3D NR | |
Smart IR | Yes | |
Mirror | Off / On | |
Privacy Masking | Off / On (8 area, rectangle) | |
Certifications | ||
Certification |
CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 + CAN / CSA C22.2 No.60950-1) |
|
Port |
||
Video Output | Video output choices of CVI / TVI / AHD / CVBS by one BNC port (DIP Switch) | |
Audio Input | One channel built-in mic | |
General | ||
Power Supply |
12 V ± 30% DC |
|
Power Consumption |
Max 2.7 W (12 V DC, IR on) |
|
Operating Conditions |
–40 ° C to +60 ° C (–40 ° F to 140 ° F); <95% (non-condensation) |
|
Storage Conditions |
–40 ° C to +60 ° C (–40 ° F to 140 ° F); <95% (non-condensation) |
|
Ingress Protection & Vandal Resistance |
IP67; IK10 |
|
Casing |
Metal throughout the whole casing |
|
Dimensions |
Φ106 mm × 50.3 mm (Φ4.17 "× 1.98") |
|
Net Weight |
0.33 Kg (0.73 lb) |
|
Gross Weight |
0.44 Kg (0.97 lb) |
Further details
![]() |
This camera is a QUADRIBRID (4 Integrated Technologies) These cameras are at the same time Analogue , Ahd , Hdcvi and Hdtvi . ![]() ![]() ![]() |
![]() |
2Megapixel FULL HD 1080P resolution |
![]() |
This camera is equipped with a fixed 3.6mm lens |
|
2MP CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode With this CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color |
|
This camera has built-in microphone |
![]() |
ULTRA WDR up to 130dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. ![]() |
![]() |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. ![]() |
![]() |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies. This improves the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
![]() |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations ![]() |
![]() |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
![]() |
Protection level IP67 (Dust / Diving) |
![]() |
IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism |
![]() |
12V DC power supply NOT included! ![]() |
![]() |
This camera was made of metal |
![]() |
This product is covered by a 24 month warranty. |
![Dimensions HAC-HDBW2241F-A-S2 Schema dimensioni telecamera videosorveglianza HAC-HDBW2241F-A-S2Dahua](/storage/images/Articoli/HAC-HDBW2241F-A_schema.jpg)
![Resolutions compared Immagine comparativa delle varie risoluzioni](https://www.setik.biz/ebay/img/cctv_resolution_area_600.png)
