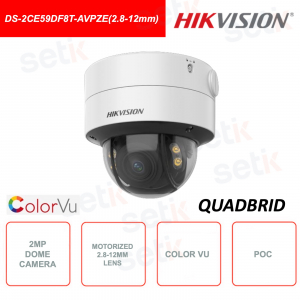

DS-2CE59DF8T-AVPZE (2.8-12mm) - HIKVISION - PoC Dome Camera - Color Vu Series - 2.8-12mm Lens - WDR 130dB

DS-2CE59DF8T-AVPZE (2.8-12mm) - HIKVISION - PoC Dome Camera - Color Vu Series - 2.8-12mm Lens - WDR 130dB
QUESTIONS ABOUT THE PRODUCT

 
Optic calculation
IN PROMOTION -35%

Hikvision ColorVu | DS-2CE59DF8T-AVPZE (2.8-12mm) - HIKVISION - 2MP 2 Megapixel Dome Outdoor DOme PoC camera , high quality 1 / 1.8 " 0.0003Lux CMOS sensor with ColorVu Technology and 2.8-12mm motorized varifocal lens with auto-focus . Illuminator with White LED , 40m range and Smart Supplement Light . WDR 130dB - HLC - BLC - AGC - AWB - Mirror Mode - Privacy Masks - 1 analog HD video output - IP68 and IK10 protection - Metal body.



Reference: DS-2CE59DF8T-AVPZE(2.8-12mm)

Brand: Hikvision

FIND INSTALLER

€379.05

€583.16 -35%
taxes included
Tax included
 Available in 5 days
 starting


DS-2CE59DF8T-AVPZE (2.8-12mm) | POC DOME HIKVISION CAMERA - COLORVU TECHNOLOGY - 2MP - MOTORIZED LENS 2.8-12MM - WDR 130DB - IP68 - IK10

Made by Hikvision

Hikvision PoC Dome camera with Color Vu technology and 2.8-12mm motorized varifocal lens - DS-2CE59DF8T-AVPZE (2.8-12mm)

2MP 2 Megapixel resolution - 2.8mm-12mm motorized varifocal lens with auto-focus - 1 / 1.8 " 0.0003 Lux CMOS sensor with ColorVu technology - ColorVu technology: 24/7 color vision even at night! - WDR 130dB - Smart Light up to 40m - HLC - BLC - AWB - HLS - Global - 3DNR - 2DNR - Mirror Mode - Privacy Masks - Anti-banding - IP68 and IK10 protection - 1 analog HD video output - Manufactured with metal body - Power supply not included - 24 months warranty

ColorVu Technology:
Hikvision ColorVu technology provides 24/7 vibrant, colorful images with advanced F1.0 lenses and high performance sensors. The F1.0 super aperture collects more light to produce brighter images. Advanced sensor technology can greatly improve the utilization of available light.

VIVID DETAILS EVEN AT NIGHT
ColorVu cameras capture vivid details in color, thanks to sensor and lens technology.

HIGH BRIGHTNESS
The lens of these cameras is a F1.0 . The large aperture allows you to collect a large amount of light and capture color images even in the dark.

SENSOR WITH AMAZING QUALITY
The sensor installed in the ColorVu products has a sensitivity of 0.0005 Lux and has allowed a significant improvement in the quality of the shots.
Thanks to the BBAR coating and ED glass, the images provided are without backlight effects and with a reduced light glare.

ACUSENSE TECHNOLOGY - EXTREME INTELLIGENCE
ColorVu products are also extremely intelligent thanks to the Acusense algorithm present. Reduction of false alarms.

SML TECHNOLOGY - WHITE LED ON BOARD
All the cameras in this line have an integrated white LED, with many adjustable functions, all adjustable during installation; from courtesy light to smart activation in conditions of total absence of light.

SIMPLIFIED START-UP
Thanks to the 4 pre-configured profiles and the possibility to create two customized ones, ColorVu products allow an easy installation for professionals of the sector.

POC (Power Over Coaxial):


This technology transmits both video, audio, control signal and electrical power over a single coaxial cable, eliminating the need for separate camera power supplies and minimizing operating costs.

Resolution:

This camera has a resolution of 2 Megapixel 2.0 MP 2MP ( 1920x1080 pixels)

Bright lens:

This camera features bright F1.0 aperture lens and 2.8mm-12mm motorized varifocal lens with auto-focus functionality.
The camera will collect much more light ensuring color shots even in the dark

Advanced Sensor and ColorVu Technology:

Thanks to the sensitivity of the sensor present (0.0003 Lux) , the BBAR coating and the ED glass , this camera is able to provide images without those annoying backlight effects. The details captured are vivid in color and in high definition even in low light conditions . It will be easier to recognize the characteristics of a person or a car / license plate


IR Infrared Illuminator | White Light:


With the additional white light on board , the camera is able to deliver images with more vivid colors even in total darkness.
Many adjustable functions: from courtesy light to smart activation in conditions of total absence of light.

Range 40m

Day / Night:

Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

BLC (Back Light Compensation):

is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):

integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

3D- DNR:

More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

Diet:

A 12V DC power supply is required for the operation of this camera (not included)

IP68 and IK10 protection:

Protection from dust and temporary immersions. Suitable for outdoor environments.

It also has IK10 protection against vandalism.

Material:

This camera features a metal housing.

Data sheet

DS-2CE59DF8T-AVPZE (2.8-12mm)

Specification

Image Sensor

1 / 1.8 "2 MP CMOS

Signal System

PAL / NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rate

TVI: 1080p @ 25fps / 30fps

Min. Illumination

0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white Light

Shutter Time

PAL: 1/25 s to 1 / 50,000 s; NTSC: 1/30 s to 1 / 50,000 s

Lens

2.8 mm to 12 mm motorized, auto focus

Field of View

horizontal FOV: 92.3 ° to 34.2 °, vertical FOV: 48.4 ° to 19 °, diagonal FOV: 112.2 ° to 39.2 °

Lens Mount

Φ24

Day & Night

Color

WDR (Wide Dynamic Range)

≥130 dB

Angle Adjustment

Pan: 0 ° to 355 °, Tilt: 0 ° to 75 °, Rotation: 0 ° to 355 °

Menu

White Light

Auto / Off

Image Mode

STD / HIGH-SAT / HIGHLIGHT

AGC

Yes

White Balance

Auto / Manual

AE (Auto Exposure) Mode

WDR, BLC, HLC, Global, HLS

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable motion areas

Noise Reduction

3D DNR / 2D DNR

Language

English

Function

Brightness, Mirror, Sharpness, Anti-Banding, Smart Light

Interface

Video Output

1 HD analog output

General

Operating Conditions

-40 ° C to 60 ° C (-40 ° F to140 ° F), Humidity: 90% or less (non-condensing)

Power Supply

12 VDC / 24 VAC ± 20% / PoC.at

Consumption

Max: 12.2 W

Protection Level

IP68 / IK10

Material

Metal

White Light Range

Up to 40 m

Communication

HIKVISION-C

Dimension

Ø 155 mm × 152 mm (Ø 6.10 "× 5.98")

Weight

Approx. 1525 g (3.36 lb.)

Further details

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
