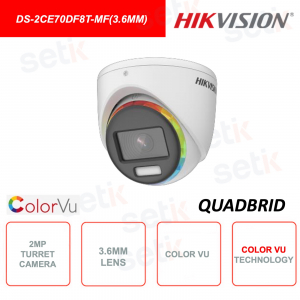

DS-2CE70DF8T-MF (3.6mm) - HIKVISION - Turret 4in1 Camera - 2MP - Color Vu Series - 3.6mm Lens

-35%

Hikvision ColorVu | DS-2CE70DF8T-MF (3.6mm) Hikvision 4in1 Turret Camera TVI / AHD / CVI / CVBS Switchable Outdoor - 2MP Resolution - High Quality 0.0003Lux CMOS Sensor with ColorVu Technology and 3.6mm Bright F1.0 Lens IR Illuminator with White LED , 20m range, WDR 130dB, Motion Detection, White Light Alarm, 3D DNR / 2D DNR, BLC, HLC, Global, HLS, AWB, Privacy Mask, Mirror Mode, AGC, Anti-banding - IP68 protection - Metal shell.

Reference: DS-2CE70DF8T-MF(3.6mm)

Brand: Hikvision

EAN: 6941264042273

FIND INSTALLER

https://www.setik.biz/en/cameras/7087-hikvision-ds-2ce70df8t-mf36mm-ds-2ce70df8t-mf-36mm-hikvision-turret-4in1-camera-2mp-color-vu-series-36mm-lens.html

€95.95

€147.62 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Data Sheet Further Details Download

DS-2CE70DF8T-MF (3.6mm) | OUTDOOR TURRET CAMERA - HIKVISION COLORVU - 2MP - 3.6MM LENS - WDR 130DB - WHITE LED

Hikvision Turret 4in1 Outdoor Camera with Color Vu Technology - DS-2CE70DF8T-MF (3.6mm)
2MP 2 Megapixel resolution - 4in1: TVI / AHD / CVI / CVBS switchable - F1.0 3.6mm bright lens - 0.0003 Lux CMOS sensor with ColorVu Technology - ColorVu Technology: 24/7 color vision even at night! - WDR 130dB - BLC, HLC, Global, HLS - AGC - Mirror Mode - Privacy Masking - White light alarm - Metal casing - IP68 protection for outdoor use - Power supply not included - 24 month warranty

ColorVu Technology:
Hikvision ColorVu technology provides 24/7 vibrant, colorful images with advanced F1.0 lenses and high performance sensors. The F1.0 super aperture collects more light to produce brighter images. Advanced sensor technology can greatly improve the utilization of available light.

VIVID DETAILS EVEN AT NIGHT
ColorVu cameras capture vivid details in color, thanks to sensor and lens technology.

HIGH BRIGHTNESS
The lens of these cameras is a F1.0 . The large aperture allows you to collect a large amount of light and capture color images even in the dark.

SENSOR WITH AMAZING QUALITY
The sensor installed in the ColorVu products has a sensitivity of 0.0005 Lux and has allowed a significant improvement in the quality of the shots.
Thanks to the BBAR coating and ED glass, the images provided are without backlight effects and with a reduced light glare.

ACUSENSE TECHNOLOGY - EXTREME INTELLIGENCE
ColorVu products are also extremely intelligent thanks to the Acusense algorithm present. Reduction of false alarms.

SML TECHNOLOGY - WHITE LED ON BOARD
All the cameras in this line have an integrated white LED, with many adjustable functions, all adjustable during installation; from courtesy light to smart activation in conditions of total absence of light.

SIMPLIFIED START-UP
Thanks to the 4 pre-configured profiles and the possibility to create two customized ones, ColorVu products allow an easy installation for professionals of the sector.

Resolution:

This camera has a resolution of 2MP 2 Megapixel ( 1920x1080 pixels)

Bright lens:

This camera features bright F1.0 aperture lens and 3.6mm fixed lens.
The camera will collect much more light ensuring color shots even in the dark!

Advanced Sensor and ColorVu Technology:

Thanks to the sensitivity of the sensor present (0.0005 Lux) , the BBAR coating and the ED glass , this camera is able to provide images without those annoying backlight effects. The details captured are vivid in color and in high definition even in low light conditions . It will be easier to recognize the characteristics of a person or a car / license plate

IR Infrared Illuminator | White Light:

With the additional white light on board , the camera is able to deliver images with more vivid colors even in total darkness.
Many adjustable functions: from courtesy light to smart activation in conditions of total absence of light.

Range 20m

Day / Night:

Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

BLC (Back Light Compensation):

is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations

Click to enlarge

AGC (Automatic Gain Control):

integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

3D- DNR:

More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

Diet:

A 12V DC power supply is required for the operation of this camera (not included)

Material:

This HIKVISION camera features a housing made of metal.

IP68 protection:

Protection from dust and temporary immersions. Suitable for outdoor environments.

Data sheet

DS-2CE70DF8T-MF (3.6mm)
Room
Image Sensor	2 MP CMOS
Signal System	PAL / NTSC
Resolution	1920 (H) × 1080 (V)
Frame Rate	TVI: 1080p @ 25fps / 30fps CVI: 1080p @ 25fps / 30fps AHD: 1080p @ 25fps / 30fps CVBS: PAL / NTSC
Min. Illumination	0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
Shutter Time	PAL: 1/25 s to 1 / 50,000 s; NTSC: 1/30 s to 1 / 50,000 s
Slow Shutter	Max. 16 times
Lens	3.6 mm
Field of View	3.6 mm, horizontal FOV: 83 °, vertical FOV: 44 °, diagonal FOV: 100 °
Lens Mount	M12
Light Alarm	Solid Light Alarm (White Light)
Day & Night	Color
WDR (Wide Dynamic Range)	≥130 dB
Angle Adjustment	Pan: 0 ° to 360 °, Tilt: 0 ° to 75 °, Rotation: 0 ° to 360 °
Menu
White Light	Auto / Off
Image Mode	STD / HIGH-SAT / HIGHLIGHT
AGC	Yes
Day / Night Mode	Color
White Balance	Car
AE (Auto Exposure) Mode	WDR, BLC, HLC, Global, HLS
Privacy Mask	4 programmable privacy masks
Motion Detection	4 programmable motion areas
Noise Reduction	3D DNR / 2D DNR
Language	English
Function	Brightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light
Interface
Video Output	Switchable TVI / AHD / CVI / CVBS
General
Operating Conditions	-40 ° C to 60 ° C (-40 ° F to 140 ° F), Humidity: 90% or less (non-condensing)
Power Supply	12 VDC ± 25%, * You are recommended to use one power adapter to supply the power for one camera.
Consumption	Max. 3.1 W
Protection Level	IP68
Material	Metal
White Light Range	Up to 20 m
Communication	HIKVISION-C
Dimension	Φ 85.1 mm × 77.62 mm (Φ 3.35 "× 3.05")
Weight	Approx. 315 g (0.69 lb.)

Further details

Download

Download the English brochure

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
