Dahua HAC-HDW1500TLMQ-A-POC-S2 outdoor camera with 4 technologies in 1: switchable HDCVI / HDTVI / AHD / ANALOG, 5Megapixel 5 MP resolution, POC , 2.8mm fixed lens and 1 / 2.7 "CMOS sensor with 2880x1620 resolution - 30m Smart IR Illuminator - Built-in Microphone - Starlight Technology - Day / Night (ICR), DWDR, AWB, HLC, BLC - OSD Multilingual menu - BNC video output - For outdoor video surveillance systems (IP67).
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

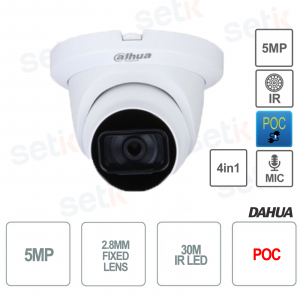

DAHUA 4IN1 VIDEO SURVEILLANCE CAMERA - POC - MICROPHONE - 5 MP - 2.8MM FIXED LENS - STARLIGHT - CMOS 1 / 2.7 "
Dahua outdoor 4in1 camera with 2.8mm fixed lens - HAC-HDW1500TLMQ-A-POC-S2
4in1: HDCVI / HDTVI / AHD / ANALOG switchable Via pfm820 - POC technology - 5Megapixel 5 MP - 2.8mm lens - 1 / 2.7 "CMOS with 2880x1620 resolution - - Smart IR 30 MT illuminator - Microphone - Privacy Mask - DWDR, AWB, HLC , BLC - Mirror Mode (off / on) - Day / Night (ICR) - IP67 protection - 24 months warranty
Product details
- 4in1 dome camera - Dahua - HAC-HDW1500TLMQ-A-POC-S2
- 4 Technologies in 1: switchable HDCVI / HDTVI / AHD / ANALOG
- Switchable Via PFM820 (Not Included)
- Resolution: 5Megapixel 5 MP
- POC Power Over Coax
- 1 / 2.7 "5MP progressive scan image sensor 2880 (H) × 1620 (V)
- 2.8mm fixed lens
- Built-in microphone
- Functions: Day / Night (ICR), DWDR, AWB, HLC, BLC
- OSD Multilingual menu
- Smart IR 1 LED 30MT illuminator
- Smart IR 1 LED 30MT illuminator
- CVI / TVI / AHD / ANALOG video output choice
- Privacy Mask on 8 rectangular areas
- Privacy Mask on 8 rectangular areas
- 2D Noise Reduction
- Operating temperature: from -40 to + 60 ° C
- Mirror Mode On / Off
- Operating temperature: from -40 to + 60 ° C
- Mirror Mode On / Off
- IP67 protection (dust / immersion)
- 12V ± 30% DC power supply not included
- Dimensions φ109.9 mm × 88.1 mm (φ4.33 "× 3.47")
- 24 months warranty
Data sheet
| Model | HAC-HDW1500TLMQ-A-POC-S2 |
| Room | |
| Image Sensor | 1 / 2.7 inch CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pixel | 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s – 1 / 100,000 s NTSC: 1/30 s – 1 / 100,000 s |
| S / N Ratio | > 65 dB |
| Min. Illumination | 0.005 Lux / F1.6, 30IRE, 0 Lux IR on |
| Illumination Distance | 30 m (98.4 ft) |
| Illuminator On / Off Control | Car; manual |
| Illuminator Number | 1 |
| Pan / Tilt / Rotation Range | Pan: 0 ° –360 ° Tilt: 0 ° –78 ° Rotation: 0 ° –360 ° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max openings | F1.6 |
| Field of view | 132 ° × 111 ° × 58 ° |
| Iris Type | Fixed iris |
| Close Focus Distance | 0.9 m (3.0 ft) |
| Video | |
| Frame Rate | CVI: PAL: 5M @ 25 fps; 4M @ 25 fps; 1080P @ 25 fps; NTSC: 5M @ 25fps; 4M @ 30 fps; 1080P @ 30 fps AHD: PAL: 4M @ 25 fps; NTSC: 4M @ 30fps TVI: PAL: 4M @ 25fps; NTSC: 4M @ 30fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480) |
| Day / Night | Auto switch by ICR |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Car; manual |
| Gain Cons | Car; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off / On |
| Privacy Masking | Off / On (8 areas, rectangle) |
| Certifications | |
| Certifications | CE (EN55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN55024: 2010 + A1: 2015, EN 55035: 2017, EN50130-4: 2011 + A1: 2014, EN 62368- 1: 2014 + A11: 2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 + CAN / CSA C22.2 No.60950-1) |
| Port | |
| Audio Interface | One channel built-in mic |
| Video Output | Video output choices of CVI / TVI / AHD / CVBS by one BNC port |
| Power | |
| Power Supply |
PoC (CVI only) / 12V ± 30% DC |
| Power Consumption |
Max 3.2W (12V DC, IR on); PoC (AF) |
| Environmental | |
| Operating Conditions | –40 ° C to + 60 ° C (–40 ° F to 140 ° F); <95% (noncondensation) |
| Storage Conditions |
–40 ° C to + 60 ° C (–40 ° F to 140 ° F); <95% (noncondensation) |
| Ingress Protection & Vandal Resistance |
IP67 |
| Construction | |
| Casing |
Metal dome + metal cover + plastic decorative ring |
| Dimensions |
φ109.9mm × 88.1mm (φ4.33 "× 3.47") |
| Net Weight |
0.33 kg (0.73 lb) |
| Gross Weight |
0.44 kg (0.97 lb) |
Further details
 |
POC - POWER OVER COAX: This new technology makes it possible to power common coaxial cameras directly through the video cable, on which the signal is sent using the same transmission medium. This technical concept is very similar to PoE, already widely used on IP devices and even earlier on old analog telephones. The coverage in terms of distance of this technology depends on the quality of the cable and the power supply required by the camera, in any case the guaranteed distances are greater than those of the typical 12V power supplies, which have a much greater loss. Below you will find a purely indicative table of Dahua:
|
 |
This camera is a QUADRIBRID (4 Integrated Technologies) |
 |
5MP resolution, means 12 times the resolution of a common D1 camera : Resolution: 2880 (H) × 1620 (V) 1 / 2.7 "CMOS image sensor
|
 |
CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode With this CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color
|
 |
This camera is equipped with a 2.8mm fixed lens |
 |
This camera has built- in microphone. |
 |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  |
 |
Smart IR infrared illuminator, with 1 LED and approximate maximum range of 30m. |
|
|
OSD menu (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day / Night sensitivity, Shutter speed, White balance, light compensation and much more ... The OSD menu is multi-language Multi-Technology: The camera can switch from HDCVI to HDTVI, AHD or Analog via OSD Menu or UTC DAHUA controller (not included). |
 |
Allows you to adapt the lens to Night / Day vision
|
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) the compensation of light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations |
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
Protection level IP67 (Dust / Diving) |
 |
This product is covered by a 24 month warranty. |
