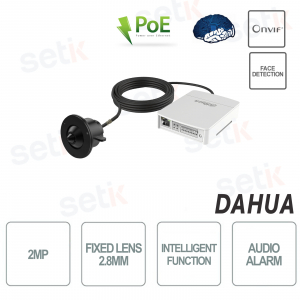

Dahua - KIT Covert Pinhole WizMind Network Camera 2MP Optical 2.8mm Onvif PoE Intelligent Audio / Allrme functions
Dahua - KIT consisting of Covert Pinhole WizMind Network Camera with 2MP CMOS sensor + 2.8mm fixed lens - Onvif, PoE
Onvif - PoE - Intelligent functions : IVS, face detection, smart search - H.265 + - Triple stream with maximum resolution of 2M (1920 × 1080)
Day / Night, BLC, HLC, WDR 120dB, AGC, 3D-NR, motion detection,
RJ-45 - 1x input + 1x audio output - 2x input + 2x alarm output
Metal body - Dimensions: E1: 110mm × 83mm × 24mm - L1:? 30.5mm × 48.7mm
FIND INSTALLER
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DAHUA - KIT COVERT PINHOLE WIZMIND NETWORK CAMERA - 2MP - INTELLIGENT FUNCTIONS - ONVIF® - POE
Dahua - KIT consisting of Covert Pinhole WizMind Network Camera with 2MP CMOS sensor + 2.8mm fixed lens
Onvif - PoE - Intelligent functions : IVS, face detection, smart search - H.265 + - Triple stream with maximum resolution of 2M (1920 × 1080)
Day / Night, BLC, HLC, WDR 120dB, AGC, 3D-NR, motion detection
RJ-45 - 1x input + 1x audio output - 2x input + 2x alarm output
Metal body - Dimensions: E1: 110mm × 83mm × 24mm - L1:? 30.5mm × 48.7mm
Product details
- KIT Covert Pinhole WizMind Network Camera 2MP
- Triple Stream
- Video comprehension up to H.265 +
- Day / Night (Electronic) BLC / HLC / WDR120dB
- Intelligent functions : IVS, face detection, smart search
- Motion detection
- Audio: 1 in / 1 out
- Alarm: 2 inputs / 2 inputs
- Onvif
- Metal body
- Dimensions: E1: 110mm × 83mm × 24mm - L1:? 30.5mm × 48.7mm
Data sheet
| Model | IPC-HUM8241-E1-L1 |
| Room | |
| Image sensor | 1 / 2.8 "CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| RAM / ROM | 512MB / 128MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1/3 s – 1 / 100,000 s |
| Min. Illumination | 0.005 Lux@F2.0 (Color, 30 IRE) 0.0005 Lux@F2.0 (B / W, 30 IRE) |
| S / N Ratio | ? 56 dB |
| Lens | |
| Lens Type | Fixed-focal |
| Lens mount | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | 2.8 mm: F2.0 |
| Field of View | Horizontal: 105 °; Vertical: 58 °; Diagonal: 118 ° |
| Iris Control | Fixed |
| Close Focus Distance | 0.5 m |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attribute extraction including 6 attributes (gender, age, glasses, expressions, mask and beard) and 8 expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear); face snapshot set as face or one-inch photo; 3 snapshot strategies (real-time snapshot, optimization snapshot, and quality priority); face angle filter; optimization time setting |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265 + Smart H.264 + |
| Video Frame Rate | Main stream: 1920 × 1080 @ 25/30 fps Sub stream: 704 × 576 @ 25 fps; 704 × 480 @ 30 fps Third stream: 1920 × 1080 @ 25/30 fps |
| Stream Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 3 kbps – 20480 kbps H.265: 3 kbps – 20480 kbps |
| Day / Night | Color B / W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Manual; car |
| Noise Reduction | 3D NR |
| Motion Detection | OFF / ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0 ° / 90 ° / 180 ° / 270 ° (support 90 ° / 270 ° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, fast moving, missing object, abandoned object, parking detection, loitering detection, people gathering; scene changing, audio detection, voltage detection, external alarm, face detection, and security exception |
| Network | |
| Ethernet | RJ-45 (10 / 100Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF® (Profile S / Profile G / Profile T); CGI; P2P; Milestone; Genetec |
| User / Host | 20 (Total bandwidth: 64M) |
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS |
| Browser | IE: IE8, IE9, and IE11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile client | IOS; Android |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Certification | |
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU; FCC: 47 CFR FCC Part 15, Subpart B |
| Port | |
| Audio input | 1 channel (3.5 mm JACK port) |
| Audio output | 1 channel (3.5 mm JACK port) |
| Alarm imput | 2 channels in: 5 mA 3V – 5V DC |
| Alarm output | 2 channels out: 1,000 mA 30V DC / 500mA 50V DC |
| Power | |
| Power supply | 12V DC / PoE (802.3af) |
| Power consumption | Basic: 2.3W (12V DC); 2.8W (PoE) Max. (Intelligence + WDR): 3.7W (12V DC); 4.5W (PoE) |
| Enviroment | |
| Operating Temperature | –40 ° C to + 60 ° C (–40 ° F to 140 ° F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 ° C to + 60 ° C (–40 ° F to 140 ° F) |
| Structure | |
| Casing | Metal |
| Product Dimensions | E1: 110mm × 83mm × 24mm (4.33 "× 3.27" × 0.94 ") L1:? 30.5mm × 48.7mm (? 1.20 "× 1.92") |
| Net Weight | 210 g (0.5 lb) |
| Gross Weight | 376 g (0.8 lb) |
Further details
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. |
 | This camera features 2 Megapixel resolution in real time! |
 | The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
| Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | Main stream: 1920 × 1080 @ 25/30 fps |
 | INTELLIGENT FUNCTIONS This camera has intelligent functions:
|
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 | Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
 | This product is covered by a 24 month warranty. |
