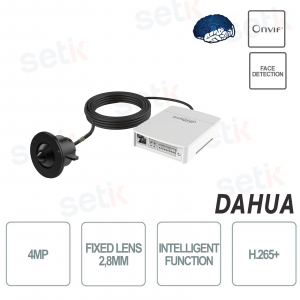

Lens kit + mini camera-Covert Pinhole WizMind Network Camera-2.8mm lens 4MP Intelligent functions Onvif PoE Audio/Alarm
Dahua - Lens kit + mini camera - Covert Pinhole WizMind Network Camera with 4MP CMOS sensor, with 2.8mm fixed lens - Onvif - PoE - Intelligent functions : IVS, face detection, smart search - H.265+ - Triple stream with max resolution of 4M (2688 × 1520) - Day/Night, BLC, HLC, WDR 120dB, AGC, 3D-NR, motion detection - RJ-45 - 1x input + 1x audio output - 2x input + 2x alarm output - Body in metal - Dimensions: E1: 110 mm × 83 mm × 24 mm - L1: ?30.5 mm × 48.7 mm
FIND INSTALLER
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DAHUA - LENS KIT + MINI CAMERA - COVERT PINHOLE WIZMIND NETWORK CAMERA - 4MP - INTELLIGENT FUNCTIONS - ONVIF® - POE
Product details
- Covert Pinhole WizMind Network Camera 4MP
- Optical kit + mini camera
- Triple Stream
- Video understanding up to H.265+
- Day/Night(Electronic) BLC / HLC / WDR120dB
- Intelligent functions : IVS, face detection, smart search
- motion detection
- Audio: 1 in / 1 out
- Alarm: 2 inputs / 2 inputs
- Onfiv - PoE
- Metal body
- Dimensions: E1: 110mm × 83mm × 24mm - L1: ?30.5mm × 48.7mm
Data sheet
| model | IPC-HUM8441-E1-L1 |
| Room | |
| Image sensor | 1/2.7” CMOS |
| Max.Resolution | 2688(H)×1520(V) |
| RAM/ROM | 512MB/32MB |
| Scanning System | Progressives |
| Electronic Shutter Speed | Auto/Manual 1/3s–1/100,000s |
| Min Illumination | 0.005 Lux@F2.0 (Color,30IRE) 0.0005 Lux@F2.0 (B/W,30IRE) |
| S/N Ratio | ?56dB |
| lens | |
| LensType | Fixed-focal |
| Lens mount | M12 |
| Focal Length | 2.8mm |
| Max. Openings | 2.8mm: F2.0 |
| Field of View | Horizontal: 101°; Vertical: 57°; Diagonal: 115° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8m |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Face Detection | face detection; track; snapshots; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attribute extraction including 6 attributes (gender, age, glasses, expressions, mask and beard) and 8 expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear); face snapshot set as face or one-inch photo; 3 snapshot strategies (real-time snapshot, optimization snapshot, and quality priority); face angle filter; optimization time setting |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codecs | Smart H.265+ Smart H.264+ |
| Video Frame Rate | Mainstream: 2688×1520 @25/30fps Sub streams: 704 × 576 @25fps; 704×480 @30fps Third stream: 1920×1080 @25/30fps |
| Stream Capability | 3 streams |
| Resolution | 4M (2688×1520); 3.6M (2560×1440); 3M (2048×1536);1080p (1920×1080); 960p (1280×960); 720p (1280×720); D1 (704×576/704×480); CIF (352×288/352×240); VGA (640×480) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3kbps–20480kbps H.265: 3kbps–20480kbps |
| Day/Night | Color B/W |
| BLC extension | Yes |
| HLC extension | Yes |
| wdr extension | 120dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Car; natural; street lamp; outdoors; manual; regional custom |
| Gain Control | Manual; car |
| Noise reduction | 3D NO |
| motion detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| defog | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 1080p resolution and lower) |
| Mirrors | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| alarm | |
| Alarm Event | No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, fast moving, missing object, abandoned object, parking detection, loitering detection, people gathering; scene changing, audio detection, voltage detection, external alarm, face detection, and security exception |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| SDKs and APIs | Yes |
| protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; smtp; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64M) |
| Storage | FTP; SFTP; Micro SD card (Support max. 256G); NOS |
| Browsers | IE: IE8, IE9, and IE11 Chrome firefox |
| management software | Smart PSS; DSS; DMSS extension |
| Mobile clients | iOS; android |
| Cyber Security | video encryption; Firmware encryption; configuration encryption; digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and import of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Certification | |
| Certification | CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B |
| Port | |
| Audio inputs | 1 channel (3.5mm JACK port) |
| Audio outputs | 1 channel (3.5mm JACK port) |
| Alarm input | 2 channels in: 5 mA 3V–5V DC |
| Alarm output | 2 channels out: 1,000mA 30V DC/500mA 50V DC |
| Power | |
| power supplies | 12V DC/PoE (802.3af) |
| power consumption | Basic: 2.4W (12V DC); 3W (PoE) Max. (Intelligence + WDR): 3.9W (12V DC); 4.8W (PoE) |
| environment | |
| Operating Temperature | –40°C to +60°C (–40°F to 140°F) |
| Operating Humidity | ≤95% |
| Storage Temperatures | –40°C to +60°C (–40°F to 140°F) |
| structure | |
| Casing | Metal |
| Product Dimensions | E1: 110mm × 83mm × 24mm (4.33" × 3.27" × 0.94") L1: ?30.5mm × 48.7mm (?1.20" × 1.92") |
| Net Weight | 210g (0.5lb) |
| Gross Weight | 376g (0.8lb) |
Further details
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 | This camera has a resolution of 4 Megapixels |
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | Mainstream: 2688×1520 @25/30fps |
 | INTELLIGENT FUNCTIONS This camera has smart features:
|
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations  |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | This product is covered by a 24 month guarantee. |
