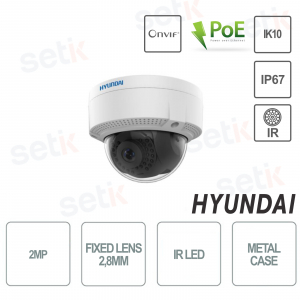

HYU-415N | Equivalent SF-IPD835H-2E - Hyundai - Outdoor dome camera with 2Mp CMOS sensor - 2.8mm fixed lens - 30M infrared illuminator - Onvif - PoE - AGC, BLC, DWDR, 3D-DNR - ROI, privacy mask - Double stream - IP67 , IK10 - Dimensions: Ø111 x 82 mm - Metal body
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
HYUNDAI 2 MEGAPIXEL DOME CAMERA - 2.8MM FIXED LENS - IR 30M - DWDR - IP67 - IK10 - ONVIF® - POE
Extended 3 Year Hyundai Warranty! - IP67 protection (dust/immersion) - IK10 protection
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | All Onvif, the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 | This camera features a resolution of 2Megapixel 2 MP! 1/2.8" CMOS sensor |
| This camera is equipped with a 2.8mm fixed lens |
| IR illuminator Maximum range 30 meters |
| The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: WB, AGC, AE, DNR, etc. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | Protection level IP67 ( Dust / Immersion ) |
 | IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 | A 12VDC power supply is required for the operation of this camera (not included)  |
 | This product is covered by a 3 Year Warranty! |
Data sheet
| model |
| HYU-415N |
| 1/2.8” CMOS sensor, 2MP |
| Digital resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), etc. |
| H.265+/H.265/H.264+/H.264/MJPEG |
| Stream 1: 1080P, 1.3MP, 720P (25/30fps) Stream 2: 704x576 (25fps), 704x480 (30fps), 640x480, (25/30fps), 352x288 (25fps), 352x240 (30fps), 320x240 (25/30fps) |
| Day/night mode with removable mechanical filters |
| IR illumination: 30 meters |
| Minimum illumination: 0.01 lux F1.2 color / 0.028 lux F2.0 color / 0 lux IR On |
| 2.8mm fixed lens (114°) |
| OSD menu, AGC, BLC, digital WDR, 3D-DNR |
| 1 fixed ROI |
| Motion detection and privacy masking |
| Bright adjustment, saturation, contrast, sharpness, mirror |
| Network interface: RJ45 (10/100Base-T) |
| Network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Compatible with ONVIF® (Profile S, G), PSIA, CGI, ISAPI |
| Plug&Play with NEXTGEN NVRs |
| Compatible with DDNS DEMES |
| Power supply: 12V DC /5W |
| PoE 802.3af |
| Working temperatures -30°C ~ +50°C |
| RH: 95% (without condensation) |
| IP67/IK10 |
| Metal case |
| Dimensions: Ø111 x 82mm |
| Weight: 500g |
| 2AXIS: 0°~355°(PAN), 0°~70°(TILT) |
Power supply is not included |
