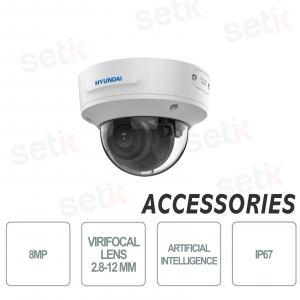

DOME CAMERA NEXT GEN HYUNDAI 8 MEGAPIXEL MOTORIZED - IR 40M - INTELLIGENT FUNCTIONS
WDR 120dB , ICR, BLC, HLC, 3D-DNR, ROI
Line crossing, facial recognition, intrusion detection, vehicle/person classification
Micro SD slot, 1x input + 1x alarm output
Extended 3 Year Hyundai Warranty! - IP67 protection
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | This camera features a resolution of 5Megapixel 5 MP! 1/8" CMOS sensor |
| This camera is equipped with a 2.7-12 mm varifocal lens with motorized zoom |
 | Stream 1: 8MP (20fps), 6MP, 4MP, 1080P, 720P (25fps) Stream 2: VGA (25fps) Stream 3: 1080P, 720P, VGA (25fps) |
 | INTELLIGENT FUNCTIONS This camera has smart features:
|
| Smart IR illuminator. Maximum range 40 meters This camera is also equipped with SMART IR technology. |
| The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: WB, AGC, AE, DNR, etc. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | Protection level IP67 ( Dust / Immersion ) |
 | A 12VDC power supply is required for the operation of this camera (not included)  |
 | This product is covered by a 3 Year Warranty! |
Data sheet
| model | HYU-898 |
| Room | |
| Image Sensor | 1/2.8" 8 megapixel CMOS image sensor |
| digital resolution | 8MP (3840x2160), 6MP (3200x1800), 4MP (2688x1520), 1080P (1920x1080), 720P (1280x720), VGA (640x480) |
| video compression | H.265+, H.265, H.264+, H.264 and MJPEG video compression |
| streams | Stream 1: 8MP (20fps), 6MP, 4MP, 1080P, 720P (25fps) Stream 2: VGA (25fps) Stream 3: 1080P, 720P, VGA (25fps) |
| Minimum Illumination | 0.005 lux F1.6 (colour), 0 lux IR On |
| lens | 2.8 ~ 12mm motorized optics |
| Day & Night | Day/Night mode with removable mechanical filters (ICR) |
| IR Illuminator | Smart IR: 40 meters |
| Viewing angle | 108°~30°(H), 56°~17°(V), 131°~35°(D) |
| Image modes | BLC, HLC, WDR 120dB, 3D-DNR |
| Picture settings | Rotation, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, and white balance adjustable via the client software or web browser |
| Other | Supports video sensor (with vehicle and person classification), 1 ROI per stream, and privacy mask |
| Intelligence | Cross-line detection and intrusion detection with vehicle and person classification |
| Face detection | Yes |
| Micro SD | MicroSD card slot for up to 256GB (card not included) |
| Two-way audio | Yes |
| alarm | 1 alarm input / 1 alarm output |
| Network interface | RJ45 (10/100M) self-adapting |
| Network protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
| Remote viewing | Remote viewing with browsers (IE10/11, Chrome 57.0+, Firefox 52.0+) and IOS and Android smartphones |
| Onvif | ONVIF® (Profile S/G), ISAPI, and SDK support |
| DDNS | Support |
| Users | Up to 32 users |
| simultaneous displays | Up to 6 simultaneous displays |
| PoE | Supports PoE (802.3af, Class 3) |
| Operating temperatures | -30°C ~ +60°C |
| RH: | <95% (without condensation) |
| Ingress Protection | IP67 protection rating |
| Material | Metal housing |
| power supplies | 12V DC (±25%) |
| consumption | 10.5W, 12.5W PoE |
| Dimensions | Ø153.3 x 111.6mm |
| Weight | 855 g |
