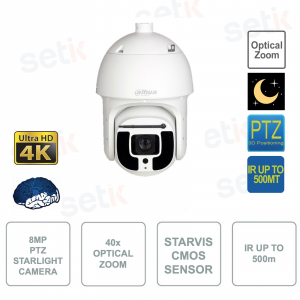

SD8A840-HNF-PA - PoE ONVIF® IP Camera - PTZ AI Starlight - 8MP - 40x Zoom 5.6-223 mm - Video Analysis
SD8A840-HNF-PA - Dahua IP PoE ONVIF PTZ outdoor camera - Supports Hi PoE - 4K ULTRA-HD 8MP resolution with Artificial Intelligence, 5.6 -223 mm optics (40x zoom), 1 / 1.8 " Sony STARVIS CMOS sensor with Starlight Technology . IR Illumination 10 LED 500M. Compression up to H.265 +, Day / Night (ICR), WDR 140dB, Defog, EIS , Wiper, Autotracking , Perimeter Protection, Face Detection, Metadata, Video Analysis , PFA Technology, LAN RJ45, RS485, Audio, Alarm, Micro SD slot up to 256GB (not included), IP67 protection, TVS6kV.
€3,020.57
€6,864.94 -56%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
PTZ OUTDOOR IP CAMERA ONVIF® HI-POE - 4K ULTRA-HD 8MEGAPIXEL - ARTIFICIAL INTELLIGENCE - DAHUA - SD8A840-HNF-PA
PTZ IP ONVIF® HI-PoE Camera - AI Dahua Series - SD8A840-HNF-PA
4K ULTRA-HD 8Megapixel resolution , 40x optical zoom (5.6-223 mm) - 16x digital zoom - 1 / 1.8 "CMOS sensor Sony STARVIS Starlight - 10 LED 500M IR illuminator - Day / Night (ICR) - Triple Stream - BLC - HLC - AWB - AGC - ROI - Defog - WDR 140dB - Video Analysis - Audio 1in / 1out - Alarm 7in / 2out - Wiper - MicroSD slot up to 256GB (not included) - RS-485 - RJ45 - IP67 / TVS6kV protection - Body in metal - Artificial Intelligence: Auto Tracking - Face Detection - Perimeter Protection - Metadata) - 24 Month Warranty
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- PTZ Starlight outdoor IP camera ONVIF® HI-PoE - AI Series - Dahua - SD8A840-HNF-PA
- 4K ULTRA-HD 8Megapixel resolution
- 1 / 1.8 " Sony Starvis ™ CMOS sensor with Starlight Technology
- Starlight: Thanks to the sensor, color shooting even at night
- Smart Wiper: The present wiper operates / stops automatically, depending on the intensity of the rainfall
- Triple Stream
- 40x Optical Zoom (5.6 ~ 223mm) + 16x digital zoom
- Video compression up to H.265 +
- ULTRA WDR (120dB) - Defog, EIS, ROI, Day / Night (ICR), Auto Focus
- Artificial Intelligence: Auto Tracking - Face Detection - Perimeter Protection - Metadata)
- Auto Tracking Function: (Auto zoom to single, multiple or panorama scene)
- Video Analysis: Abandoned / lost objects
- 10 LED IR Illuminator up to 500 Meters!
- Audio: 1 in / 1 out
- Alarm: 7 inputs and 2 outputs
- BNC video output
- RS485 port
- IP67 protection (Dust / Diving) - Outdoor camera
- 6KV lightning protection)
- MicroSD slot (256GB - not included)
- Dimensions: 415.6 mm × Φ26 2 mm (16.36 "× Φ10.31")
- Material: Metal
- 24 months warranty
–40 ° C to + 70 ° C (–40 ° F to + 158 ° F)
Operating Humidity
≤ 95% RH
Protection
IP67; TVS 6000V lightning protection; surge protection; voltage transient protection
Structure
Casing
Metal
Dimensions
415.6 mm × Φ26 2 mm (16.36 "× Φ10.31")
Net Weight
8.5 kg (18.74 lb)
Gross Weight
13.5 kg (29.76 lb)
Further details
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera complies with the ONVIF® standard |
|
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. This camera supports the High-PoE standard. |
|
AI | Artificial intelligence - Auto tracking
|
|
New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism. |
|
This camera features a resolution of 8Megapixels! |
|
1 / 1.8 " Sony STARVIS sensor with STARLIGHT technology. Low brightness, color vision even in night mode With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixels - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity in the vicinity of an area covered by infrared light - Supports WDR (WDR multiple exposure, DOL-WDR) - Versatile interface (parallel CMOS, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color |
|
This camera is equipped with a wiper , useful for improving the view in case of rain. |
|
Triple Stream : Main stream : 4K / 1080P / 1.3M / 720P (1–25 / 30 fps) |
|
This camera also provides basic VIDEO ANALYSIS functions: |
|
This camera features the AUTO TRACKING function. |
|
This camera is equipped with 10 LED lighting with a maximum range of up to 500 meters! |
|
40x Optical Zoom (5, 6mm ~ 223mm) + 16x Digital Zoom | |
Supports Intelligent 3D Positioning with DH-SD protocol. This system allows, in addition to movement on the camera axis, also positioning in terms of depth, and the same can be stored in the Presets. General PTZ Functions: Pan / Tilt Range: Pan: 0 ° to 360 ° Tilt: -30 ° to + 90 °, auto flip 180 ° Manual Control Speed: Pan: 0.1 ° / s – 240 ° / s Tilt: 0.1 ° / s – 100 ° / s Preset Speed: Pan: 240 ° / s; Tilt: 120 ° / s Preset: 300 PTZ Mode: 5 Patterns, 8 Tours (up to 32 presets per tour) 5 Scan Speed Setup: Yes Power off memory: Yes Idle Motion: Preset; Tour; Pattern; Scanning ??????? Protocol: DH-SD Pelco-P / D (auto recognition) |
|
It is extremely useful to have Inputs / Outputs in a CCTV system in order to control relays or activate a recording following an event. This camera has 7 inputs and 2 alarm outputs. |
|
This camera has 1 Audio In + 1 Audio Out. | |
RS 485 for PTZ commands (remotely controllable cameras) | |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. |
|
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
|
Last Function ONLY present in Sony Effio-V, It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog |
|
This camera features the EIS function. The EIS (image stabilizer) especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable |
|
ULTRA WDR up to 140dB. WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db while managing very strong contrast levels. |
|
Possibility to insert Micro SD (256GB - not included ) |
|
Protection level IP67 (Dust / Diving) |
|
This product is covered by a 24 month warranty. |
