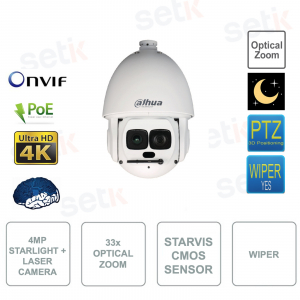

SD6AL433XA-HNR - IP PoE Camera ONVIF® - PTZ - 4MP - Zoom 33x - Starlight Plus Laser - WizMind - Hi-PoE
AI Series SD6AL433XA-HNR Dahua Outdoor IP Camera ONVIF PoE PTZ, with 4MP 4 Megapixel resolution, 33X optical zoom (5.8-191-4mm), 1 / 1.8 "CMOS sensor, Starlight technology, H.265 +. Laser (550M) , Wiper , Triple Stream, H.265 +, WDR 120dB, AWB, AGC, BLC, HLC, ROI, EIS, Defog, Motion Detection, Auto tracking , perimeter protection, video metadata, SMD Plus, Face Detection, Video Analysis, Audio , alarm, RS-485, RJ45 LAN - MicroSD slot up to 256GB (not included) - IP67, TVS8000 lightning protection.
FIND INSTALLER
€2,502.56
€5,687.64 -56%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
PTZ IP CAMERA 4MP EXTERNAL ONVIF® POE - STARLIGHT + - 4MP - ARTIFICIAL INTELLIGENCE - VIDEO ANALYSIS - SCRUBBER - LASER - SD6AL433XA-HNR
ONVIF® POE PTZ IP Camera - Laser 550m - Starlight + - Dahua - SD6AL433XA-HNR
WDR 120dB - Laser up to 550M - Wiper - Video compression H.265 + - Triple Stream - Day / Night, HLC, BLC, AGC, EIS, AWB, Privacy Masks - Motion Detection - Audio 1in / 1out / Alarm 7in / 2out - MicroSD slot up to 256GB (not included) - Video Analysis - IP67 / TVS 8000V protection - False alarm filter - RS-485 - RJ45 LAN - Hi-PoE - Artificial Intelligence: Perimeter Protection - Face Detection - Smart Capture - AutoTracking - SMD Plus
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- AI IP ONVIF® external PoE camera - Starlight + Laser - Dahua - SD6AL433XA-HNR
- 4Megapixel 2560x1440p resolution with progressive scan
- 33X Optical Zoom (5.8-191.4mm)
- 1 / 1.8 "CMOS sensor with Starlight Technology
- Starlight technology: Color night vision!
- Video Compression up to H.265 +
- Triple Stream
- Pelco D / P and Dahua protocols with 300 presets, 5 patterns, 8 tours, 5 Auto scan
- Incorporates WIPER for lens cleaning
- Day / Night (ICR), AWB, AGC, BLC, HLC 2D / 3D-NR, Defog, EIS, ROI, Motion, WDR (120db)
- Laser with range up to 550M
- Artificial Intelligence: Perimeter Protection - AutoTracking - SMD Plus - Smart Capture - Face Detection
- Standard Video Analysis : Abandoned / lost objects
- PFA technology : Sharp images when zooming. Reduces the focusing time
- Alarm: 7 inputs and 2 outputs
- Audio : 1 input and 1 output
- MicroSD-Card slot (Max 256GB, not included)
- IP67 / TVS 8000V protection (lightning)
- Dimension: 382 mm × Φ240 mm (15.04 "× Φ9.45")
- Net weight of the product: 5.8Kg
- 24 months warranty
Data sheet
| SD6AL433XA-HNR | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1 / 1.8 "CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 5.8 kg (12.79 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 10.5 kg (23.15 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible |
 | This camera supports Hi-PoE. |
| AI | Artificial intelligence - Perimeter protection: Intrusion, Line crossing, avoid false alarms by recognizing only humans and vehicles - Face Detection: Supported - Autotracking: supported - Smart Capture: Supports image capture of people and motorized and non-motorized vehicles. - SMD Plus: With the deep learning algorithm, Dahua SMD Plus filters the alarm received from the detection of an unaffected target and effectively recognizes humans and vehicles, sending alarms when the latter appear in the shooting area. |
 | General PTZ Functions: Pan / Tilt Range: Pan: 0 ° –360 ° endless Tilt: -20 ° to + 90 °, auto flip 180 ° Manual Control Speed: Pan: 0.1 ° / s – 200 ° / s Tilt: 0.1 ° / s – 120 ° / s Preset Speed: Pan: 240 ° / s Tilt: 200 ° / s Presets: 300 PTZ Mode: 5 Pattern, 8 (up to 32 presets per tour), Auto Pan, 5 Auto Scan Power-Off Memory : supported Idle Motion: Preset / Tour / Pattern / Scanning Protocol: DH-SD Pelco-P / D (auto recognition) |
 | 4Megapixel resolution with 2560x1440p progressive scan resolution. |
 | TRIPLE STREAM: ??????? Main stream : 4M / 3M / 1080p / 1.3M / 720P (1–25 / 30 fps) |
 | 33x Optical Zoom (5.8-191.4mm) + 16x Digital Zoom |
 | This camera is equipped with a wiper , useful for improving the view in case of rain.
|
| Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
| 1 / 1.8 "CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color |
 | This camera is equipped with a Laser Module with illumination with a range of up to 550m! |
 | This camera also provides VIDEO ANALYSIS / SMART DETECTION functions: |
 | Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 | This function allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 | This camera features the EIS function. The EIS (image stabilizer) especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable  |
 |
It is extremely useful to have Inputs / Outputs in a CCTV system in order to control relays or activate a recording following an event. This camera has 7 inputs and 2 alarm outputs. |
 | This camera has 1 Audio In + 1 Audio Out. |
 | Possibility to insert Micro SD up to a maximum of 256GB (not included) |
 | Protection level IP67 (Dust / Diving) |
 | This product is covered by a 24 month warranty. |
