SD6AL245XA-HNR - IP Camera PoE ONVIF® PTZ AI - 2MP - Zoom 45x - Startlight Laser - Video Analysis - WizMind PTZ

SD6AL245XA-HNR - IP Camera PoE ONVIF® PTZ AI - 2MP - Zoom 45x - Startlight Laser - Video Analysis - WizMind PTZ
-56%

WizSense SD6AL245XA-HNR Dahua Series PTZ Starlight Laser Camera, IP POE ONVIF, with 1920x1080 2Megapixel Resolution, varifocal with 45X optical zoom (3.95-177.7mm) and 16x digital zoom - CMOS Starvis ™ 1 / 2.8 " with Starlight Technology . IR illuminator up to at 550 meters. Triple Stream, H.265 + video compression, WDR 120dB, Auto-tracking, Perimeter protection, Face recognition, SMD Plus, Audio, Alarm, MicroSD slot up to 256 GB - RS485 interface - RJ45 - Metal - Protection IP67, TVS8000V - Dahua Tecnology.



Reference: SD6AL245XA-HNR

Brand: Dahua

FIND INSTALLER

€2,004.95

€4,556.70 -56%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


2MP PTZ CAMERA WITH 45x OPTICAL ZOOM - IP POE ONVIF® - STARLIGHT LASER - STARVIS CMOS - ARTIFICIAL INTELLIGENCE - VIDEO ANALYSIS - SD6AL245XA-HNR

Made by Setik

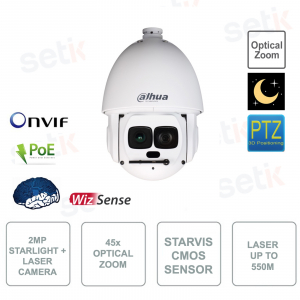

SPEED Dome PTZ Starlight Laser Dahua camera - SD6AL245XA-HNR
2Megapixel resolution - 3.95mm ~ 177.7mm optics ( 45x optical zoom, 16x digital) - 1 / 2.8 " Starlight CMOS sensor - Triple Stream - H.265 + compression - 2xIR and 1xlaser illuminator up to 550m - AI: Perimeter protection - Facial recognition - Auto Tracking - SMD Plus - WDR120dB - BLC - HLC - ROI - Defog - EIS - AWB - AGC - Day / Night - PFA Technology - Video Analysis - Audio / Alarm - RS485 - RJ45 LAN - Slot for Micro SD Card up to 256GB (not included) - IP67 / TVS8000 protection - 24 months warranty

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, on the other hand, the artificial intelligence used is the one that allows the creation of advanced devices for environmental analysis.

Product details

Telecamera videosorveglianza Dahua Speed Dome PTZ 2MP
  • WizSense Starlight Laser PTZ IP PoE Camera ONVIF® - 2MP - Dahua - SD6AL245XA-HNR
  • 2Megapixel resolution
  • 3.95mm ~ 177.7mm lens (45x optical zoom)
  • 1 / 2.8 " STARVIS ™ CMOS sensor with Starlight Technology
  • Starlight technology: Color night vision!
  • PTZ Range: Pan: 0 ° –360 °; Tilt: -20 ° - + 90 °
  • Video Compression up to H.265 +
  • Triple Stream
  • Day / Night, BLC, HLC, ROI, EIS, Defog, WDR (120db), 2D / 3D DNR
  • Quality illuminator up to 550 m (2xIR, 1xlaser) .
  • Artificial Intelligence: Perimeter Protection - AutoTracking - Face Detection - Smart Capture for People and Vehicles
  • Video Analysis : Abandoned / lost objects
  • 7 inputs and 2 alarm outputs
  • Remote viewing via DMSS
  • 1 audio input and 1 output (two-way audio)
  • 1 microSD-Card slot (Max 256GB not included)
  • 1 RS-485 port
  • IP67 / TVS8000V protection
  • Metal
  • Dimension: 358 mm × Φ239.8 mm (14.09 "× Φ9.44")
  • Weight: 6.8
  • 24 months warranty

Data sheet

SD6AL245XA-HNR

Room

Image Sensor

1 / 2.8 "CMOS

Pixel

2MP

Max. Resolution

Net Weight

6.8 kg (14.99 lb)

Gross Weight

9.2 kg (20.28 lb)

Further details

PoE power supply The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.
Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera is ONVIF® compatible

AI | Artificial intelligence
This camera features Artificial Intelligence on board
This means that it has a wide range of advanced features such as:

- Perimeter protection: Intrusion, Line crossing

- Detection of motorized and non-motorized people and vehicles

- Face detection

- Autotracking: The system will identify the objects that move in a specific area under video surveillance and will automatically enlarge it for a better view of the tracked object.

Risoluzione Full-HD 1920x1080

This camera has a resolution of 2 Megapixel 1920x1080

Codifica video Smart H.265+

Smart H.265 +

Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network.

Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+


1 / 2.8 "STARVIS sensor with STARLIGHT technology.

Low brightness, color vision even in night mode

Logo Starvis

With the addition of the STARVIS feature we have significant advantages:

- Backlit structure with 2.9 µm-square unit pixels

- High sensitivity (two or more times greater than other products on the market)

- Increased sensitivity in the vicinity of an area covered by infrared light

- Supports WDR (WDR multiple exposure, DOL-WDR)

- Versatile interface (parallel CMOS, low voltage LVDS serial, MIPI CSI-2)

With the STARVIS CMOS sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black / white.

With the SENSOR present, night shots will be sharp and in color

Zoom ottico 45x 45x Optical Zoom (3.95mm ~ 177.7mm) + 16x Digital Zoom

Triple Stream:

Main stream: 1080P / 1.3M / 720P (1–50 / 60 fps)
Sub stream 1: D1 / CIF (1–25 / 30 fps)
Sub stream 2: 1080P / 1.3M / 720P (1–25 / 30 fps)

20 MT IR illuminator

2xLED and 1xlaser IR illuminator with maximum range up to 550 meters!

This camera also provides VIDEO ANALYSIS / SMART DETECTION functions:
- Recognition of lost and abandoned objects

Infrared Illuminator

General PTZ Functions:
Pan / Tilt Range: Pan: 0 ° –360 °; Tilt: -20 ° - + 90 °
Manual Control Speed: Pan: Pan: 0.1 ° / s – 260 ° / s; Tilt: 0.1 ° / s – 120 ° / s
Preset Speed: Pan: 240 ° / s; Tilt: 200 ° / s
Presets: 300
Tour: 8 (up to 32 presets per tour)
Pattern: 5
Scan: 5
Speed Adjustment: Support
Powe-off Memory: Support
Idle Motion: Preset / Tour / Pattern / Scanning
Protocol: DH-SD, Pelco-P / D (auto recognition)

Full HD It is extremely useful to have Inputs / Outputs in a CCTV system in order to control relays or activate a recording following an event.
This 7- input and 2- output alarm camera.
Ingresso Audio This camera has 1 Audio inputs + 1 Audio Output (two-way audio)
Dual Encoding RS 485 for PTZ commands (remotely controllable cameras)
Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
BLC

BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entrances or exits of parking lots, registration of license plates, presence of special lights etc ...).

DEFOG Function Icon This function allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
EIS function This camera features the EIS function.

The EIS (image stabilizer) especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable
Ultra Smart Funzione Stabilizzazione EIS
MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256GB (not included)

Materiale con cui è stato creato il dispositivo This camera features metal body
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

Dual Encoding This product is covered by a 24 month warranty.

Download

Download the English brochure
Telecamera PTZ Speed Dome Dahua
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
