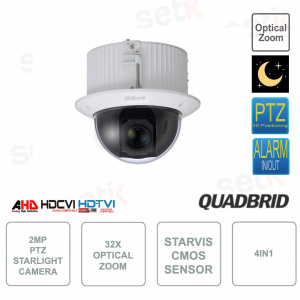

SD52C232-HC-LA - Dahua - 2MP Camera - 4in1 - HDCVI - 32x Optical Zoom - Starlight PTZ HDCVI - CMOS Starvis
SD52C232-HC-LA Dahua Starlight surveillance camera with 32x zoom and 4.5-144mm lens, PTZ (Pan/Tilt/Zoom) with 4 technologies in 1: CVI / TVI /AHD /Analog and 1080P 2MP FULL-HD resolution - STARVIS CMOS sensor 1/2.8 "with Starlight Technology , day/night, WDR 120dB, Defog, Audio (1 input), BNC, RS-485 Port, Alarm (2 inputs + 1 output), PFA Technology, IK10 Vandal-Proof and Protection TVS6000V against lightning.
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DAHUA HDCVI 4IN1 PTZ STARLIGHT CAMERA - ZOOM 32X - STARVIS CMOS - AUDIO - ALARM - IK10 - TVS6000V - SD52C232-HC-LA
4 Technologies in 1: CVI/TVI/AHD/CVBS - 1080P 2MP FULL-HD Resolution - 32x zoom, 4.5-144mm optics - CMOS 1/2.8" STARVIS™ CMOS Starlight
Day/Night - WDR 120dB - Auto/manual focus control - Electronic Defog - AWB - BLC - HLC - 2D/3DNR - Audio 1in / Alarm 2in/1out - RS-485 Port - IK10 Vandal-Proof Protection and Lightning Protection TVS 6000V - 24 month warranty
Product details
- HDCVI 4in1 PTZ Starlight camera with Starvis CMOS sensor and 32x optical zoom (4.5-144mm) - SD52C232-HC-LA
- 4 Technologies in 1: CVI/TVI/AHD/CVBS
- 2Megapixel 1080P 2MP 2MP FULL-HD resolution
- 1/2.8" STARVIS CMOS image sensor with Starlight technology!
- Starlight Technology: Color night vision
- PTZ: Allows Pan (Horizontal) / Tilt (Vertical) / Zoom movement
- 32x zoom
- 4.5mm~144mm lens
- Digital Zoom: 16x
- Day/Night, BLC, HLC, Electronic Defog, AWB, BLC, HLC, 2D/3DNR
- WDR (120db)
- PFA Technology: Sharp images when zooming. Reduces focusing times
- Alarm: 2 alarm inputs and 1 alarm outputs
- Audio: 1 input
- Analog Output: 1(CVBS/CVI and BNC output)
- RS-485 port
- IK10 Vandal Proof protection
- Lightning protection (TVS 6000V)
- Function operating temperature: -30°C to +60°C
- Dimensions: 176.6 mm × Φ198.0 mm (6.95" × Φ7.80")
- Weight: 2.2Kg
- 24 month warranty
Data sheet
SD52C232-HC-LA | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8" STARVIS™ CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixels | 2MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution | 1920 (H) x 1080 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 16MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 256 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | 1/3 s–1/100000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressives | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | Color: 0.005 Lux@F1.6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 4.5mm–144mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Openings | F1.6–F4.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | H: 60.14°–2.75°; V: 34.41°–1.54°; D: 68.23°–3.16° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom | 32x | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control | Auto/Semi-Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 3.7 kg (8.16 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 | HD-CVI is the new technology in the world of video surveillance. By simply replacing the equipment (cameras and DVRs) in the analogue infrastructure, the resolution can reach up to 1920X1080 (FULL-HD). In this way it is possible to obtain the same results as the IP world but with a high cost containment. Attention: Analog and IP cameras are NOT compatible with HD-CVI DVRs, and HD-CVI cameras are not compatible with Analog DVRs. |
 | This camera is a QUADRIBRID (4 integrated technologies) These cameras are at the same time Analog , AHD , HDCVI and HDTVI .   |
 | This camera features a resolution of 2Megapixel 2MP 2MPX 1080P FULL-HD! |
| 1/2.8" CMOS STARVIS™ sensor with STARLIGHT technology. Low brightness, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixels - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity near an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when you enter night mode, color vision becomes black/white. With the SENSOR present, night shots will be clear and in color
|
 | 32x Optical Zoom (4.5-144mm) + 16x Digital Zoom |
 |
Supports Intelligent 3D Positioning with DH-SD protocol. In addition to movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets Generic PTZ Functions: Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180° Manual Control Speed: Pan: 0.1°–350°/s; Tilt: 0.1°–250°/s??????? Preset Speed: Pan: 500°/s; Tilt: 500°/s Presets: 300 PTZ Mode: 8 (up to 32 presets per tour), 5 scans and 5 patterns Speed Adjustment: Support Power-off Memory: Support Idle Motion: Preset/Tour/Pattern/Scanning Protocol: DH-SD, Pelco-P/D (auto recognition) |
 | It is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event This camera has 2 alarm inputs and 1 alarm output. |
 | This camera has 1 Audio inputs. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 | ELECTRONIC DEFOG It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 | HLC (High Light Compensation) allows for greater light management in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.  |
 | This camera has auto , manual and semi-manual focus |
 | RS-485 port for remote control (keyboards, joysticks etc..) |
 | IK10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism
|
 | This product is covered by a 24 month warranty. |
