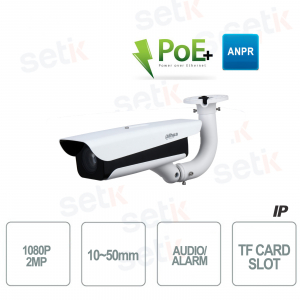

Dahua IP Camera 1080P Varifocal Lens IR ANPR Bracket Included

-58%

Dahua ANPR Bullet IP Camera Standalone Camera with 1080P 2Megapixel resolution, 10-50mm motorized varifocal lens, 1 / 1.8 "CMOS sensor with 2Megpaixel resolution. IR illuminator with license plate recognition, Day / Night (ICR), WDR 96dB , Supports TF Card, Audio , RS485, RS232, Alarm, outdoor IP67. Intelligent functions , ONVIF PoE +, Arm Included. ITC237-PW6M-IRLZF1050-B

Reference: ITC237-PW6M-IRLZF1050-B

Brand: Dahua

EAN: 6939554924644

FIND INSTALLER

https://www.setik.biz/en/cameras/6967-dahua-itc237-pw6m-irlzf1050-b-dahua-ip-1080p-camera-varifocal-ir-anpr-bracket-included.html

€894.65

€2,130.12 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Telecamere IP di sorveglianza a tecnologia ANPR

Description Product Details Data Sheet Further Details Download

ANPR STANDALONE 2 MEGAPIXEL FULL HD CAMERA - TF CARD - POE + - AUDIO - ALARM - DAHUA TECHNOLOGY

Standalone ANPR camera - Dahua
1080P 2Megapixel resolution - 10 ~ 50mm varifocal lens - 1 / 1.8 "CMOS sensor
IR Illuminator up to 25 meters - WDR 96dB - TF Card Slot - Audio, RS485, RS232, Alarm
Support plate cutout, snapshot capture and video recording - PoE + power supply - Arm Included

AVAILABLE VERSION WITHOUT BRACKET INCLUDED ITC237-PW6M-IRLZF1050

ANPR CAMERAS: WHAT IS IT ABOUT?
ANPR (or LPR) is a technology integrated on some specific cameras that allows to eliminate the glare effect due to the typical reflection characteristics of the plates.

The presence of this technology allows an adequate vision even in the presence of illuminators on license plates .

Lettura targa con telecamera funzione ANPR

Product details

Telecamera Bullet con risoluzione 2Mpx e tecnologia ANPR

- Standalone ANPR camera - Dahua

- Resolution: 2Megapixel 1080P FULL HD
- 1 / 1.8 "progressive CMOS image sensor

- 10 ~ 50mm varifocal lens
- Video Compression H.265

- WDR ( 96dB )

- 3 inputs and 3 alarm outputs

- 1 audio input and 1 audio output

- RS485 - RS232
- IR illuminator with 6 Leds and license plate reading

- Smart features: Support license plate cropping, snapshot capture and video recording

- TF Card Slot
- PoE + power supply
- Suitable for outdoor and indoor environments

- Dimensions 515.2mm × 124.7mm × 183.2mm

- Bracket Included
- 24 months warranty

Data sheet

Model	ITC237-PW6M-IRLZF1050-B
Image Processing
Illuminator	6 IR illuminators (brightness adjustable)
Image Sensor	1 / 1.8 '' CMOS
Image Resolution	1920 × 1080 (OSD black strip excluded)
Video Resolution	Main stream: 1080P (1920 × 1080) / 720P (1280 × 720) Sub stream: 720P (1280 × 720) / D1 (704 × 576, 704 × 480) / CIF (352 × 288, 352 × 240)
Video Frame Rate	PAL: Main stream (1920 × 1080 @ 25fps, 1280 × 720 @ 25fps), sub stream: (1280 × 720 @ 25fps, 704 × 576 @ 25fps, 352 × 288 @ 25fps) NTSC: Main stream (1920 × 1080 @ 30fps , 1280 × 720 @ 30fps), sub stream (1280 × 720 @ 30fps, 704 × 408 @ 30fps, 352 × 240 @ 30fps)
Bit Rate	H.264B: 32Kbps – 32768Kbps H.264M: 32Kbps – 32768Kbps H.264H: 32Kbps – 32768Kbps H.265: 32Kbps – 32768Kbps MJPEG: 512Kbps – 65536Kbps
Video Encoding	H.264B / H.264M / H.264H / H.265 / MJPEG
Image Encoding	JPEG
Noise Reduction	3DNR
White Balance	Full auto; auto color temperature range; customized color temperature
Electronic Shutter	1 / 50–1 / 10000, auto or manual
Wide Dynamic Range	96db
Edge Enhancement	Yes
Exposure Mode	Full auto; customized car; customized
Iris	Auto iris (W: 1.3 – T: 2.3)
Function
Trigger Mode	Video detection; I / O coil; video detection and I / O coil
Shutter	Single shutter
Storage	1 built-in TF card port. Kingston 16G, 32G and 64G; Dahua 16G, 32G and 64G; SanDisk 16G, 32G and 64G
Image Tampering Prevention	Yes. Video / picture can be checked through watermark and verification
Max Illumination Distance	30 m (98.43 ft)
Capture Range	8 m – 30 m (26.25 ft – 98.43 ft)
Detected Lane Width	6 m –7 m (19.69 ft – 22.97 ft)
Min Ambient Illuminance	0.002 Lux. Illuminator is designed with the camera for illumination
Max Speed that the Camera Detects	60 km / h
Alarm Event	Alarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal access
Security Mode	Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control
OSD Overlay	Supports overlay of time, address (position of channel), lane (number / direction), plate (number and color), vehicle (speed, color, type)
ANR (Automatic Network Replenishment)	Yes. Platform / FTP
Auto Register	Yes
Intelligence
Vehicle Detection	Vehicle capture rate ≥99%
Vehicle Recognition	Supports recognizing vehicle type, vehicle logo, vehicle color, license plate, and vehicle without plate. Vehicle recognition rate ≥95%
Video Metadata	Yes
Intelligent Track Frame	Intelligent frame display. Supports displaying vehicle plate and vehicle path
Ports
Lens	Lens in the camera module
Analog Output	1
Ethernet Port	1 100 / 1000M Ethernet port (RJ45)
RS-485 Port	2
RS-232 port	1
Alarm Input	3, optocoupler input (switch quantity)
Alarm Output	3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers
Audio Input	1-channel RCA port
Audio Output	1-channel RCA port
General
Power Supply	12V DC, 24V AC, PoE +
Power Consumption	<20W
Working Temperature	−30 ° C to + 65 ° C (−22 ° F to +149 ° F)
Working Humidity	10% –90% (no condensation)
Housing	Metal and plastic
Protection Grade	IP67
Dimensions (L × W × H)	515.2mm × 124.7mm × 183.2mm (20.28 '' × 4.91 '' × 7.21 '')
Net Weight	1.9kg (4.19lb)
Gross Weight	3.3kg (7.28lb)
Installation	Universal joint installation
Lens	10mm – 50mm (0.39 '' - 1.97 '')
THERE IS	Support
FCC	Support

Further details

	Dahua ANPR cameras offer a full range of license plate recognition functions. They integrate an algorithm that detects and captures license plates and stores their details in a database The camera can capture and store screenshots of license plates directly on an SD Card without the need for an NVR Why choose a Dahua ANPR camera? The Dahua ANPR camera range incorporates high quality 2 megapixel images, varifocal lenses, anti-roll headlights and long range IR LEDs for license plate recognition up to 40 meters away. The cameras offer a white list / black list function capable of activating events set based on the memorized plates. Furthermore... Clear registration of license plate numbers Database registration Trigger events inc. barrier control Integration with Dahua NVR Snapshot support on TF Card PoE Simple installation and use How and where can it be used? A Dahua ANPR camera is suitable for various types of areas, including parking entrances, barrier controlled areas or lane monitoring. Entrances with gates or barriers Parking management Safety Bus lane monitoring Oil stations
	This camera features a resolution of 2Megapixel 1080P FULL HD 1080P / 720P
	The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.
	This camera features 10-50mm varifocal lens
	1 / 1.8 "sensor with STARLIGHT technology. Low brightness, color vision even in night mode With this sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be in color
	This camera has useful features such as: - Plate cutout - Overview screenshots and video recordings - White list / black list for activating events set on the basis of memorized plates. - Multiple Detection: The camera supports automatic and video detection, it is more stable when the system is used to control barriers or to count the number of vehicles for access control. Even when automatic detection is activated accidentally, video detection will still be automatic.
	Infrared illuminator with 6 Dot leds (bigger) and range / reading of plates
	ULTRA WDR up to 96dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
	This camera features: 3 inputs + 3 alarm output
	This camera has 1 audio input + 1 audio output
	Allows you to adapt the lens to Night / Day vision
	The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (Back Light Compensation) is one of the 3 possible Steps in managing images with Contrast, typical situations are (Entering or exiting car parks, Plaques, Particular lights, Entrances with shots from inside to outside, etc.) the compensation of light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations Click to enlarge
	Heavy rain and dust protection level in IP parameters.
	Dahua DSS management software New design, easy to use > Based on Windows OS. > New interface, better experience. Greater flexibility and stability > Easy performance upgrade via distributed hardware extension > Easy upgrade of functionality via add-ons. > Support hot standby for master server High Compatibility > Dahua devices: ip cameras, ip speed dome, NVR, DVR, MNVR, ITC etc. > Connection to third party devices via standard ONVIF® protocol. > DSS Pro SDK for third party platforms or mobile development
	Possibility to insert Micro SD Snapshot recording of vehicle plates and saving directly to SD
	This product is covered by a 24 month warranty.
