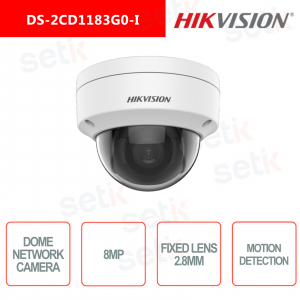

Hikvision 2.8mm IP67 IK10 PoE 4K Motion Detection Dome Network Camera

Hikvision 2.8mm IP67 IK10 PoE 4K Motion Detection Dome Network Camera
IN PROMOTION -35%

Hikvision DS-2CD1183G0-I IP PoE Outdoor Camera Fixed Dome 8MP 4K ULTRA-HD , 2.8mm fixed lens, 1 / 2.5 "CMOS sensor, H.265 +. Day & Night (ICR), IR illuminator 30M, WDR 120dB , ROI, BLC, 3D DNR, BLC, HLC, AGC, Motion detection , access to Hik-Connect, IP67 and IK10 protection, aluminum alloy body.



Reference: DS-2CD1183G0-I(2.8mm)

Brand: Hikvision

EAN: 6941264075820

FIND INSTALLER

€233.14

€358.68 -35%
taxes included
Tax included
 Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%




DS-2CD1183G0-I | HIKVISION IP POE 8 MP 2.8MM OUTDOOR CAMERA H.265 + IR 30 METERS DOME

Made by Hikvision
Hikvision IP PoE Dome Camera
Resolution: 8MP 4K ULTRA-HD 8Megapixel - 2.8mm fixed lens - 1 / 2.5 "CMOS sensor - H.265 +
30M IR Illuminator - Day / Night (ICR) - WDR 120dB - BLC - HLC - ROI - AGC - Motion detection
Aluminum alloy body - Power supply NOT included - 24 month warranty
POE (Power Over Ethernet):
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.
Resolution:
This camera features 8MP 4K ULTRA HD resolution in real time! (3840 × 2160pixel) at 25fps
1 / 2.5 ”8Megapixel progressive scan CMOS image sensor


Optics:
This camera features 2.8mm fixed lens
Compression H.265 +


What is H.265 +?

A self-developed intelligent algorithm by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 30M

WDR 120dB (Wide Dynamic Range):
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.

Immagine esempio funzione WDR 120db
ROI (Region Of Interest):
The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing me a greater definition of the image.
Ultra Smart Funzione ROI

Smart features:
This camera has smart functions on board:

- Motion detection

- video tampering

- exception

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

3D- DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

Diet:
A 12V DC power supply is required for the operation of this camera (not included)

Data sheet

DS-2CD1183G0-I (2.8mm)
Room
Image Sensor 1 / 2.5 "Progressive Scan CMOS
Min Illumination 0.01 Lux @ (F2.0, AGC ON)
Shutter Time 1/3 s to 1 / 100,000 s
Slow Shutter

Yes

P / N P / N
Wide Dynamic Range 120 dB
Day & Night IR Cut
Angle Adjustment Pan: 0 ° to 355 °, tilt: 0 ° to 60 °
Lens
Lens Type & FOV 2.8 mm, horizontal FOV 102 °, vertical FOV 53 °, diagonal FOV 123 °
Openings F2.0
Lens Mount M12
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Smart Supplement Light Yes
Video
Max. Image Resolution:

3840 × 2160

Main Stream 50Hz: 12.5 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 15 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720) 50Hz: 25 fps (640 × 480 , 640 × 360)
Sub Stream: 50Hz: 25 fps (640 × 480, 640 × 360)
60Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265 + / H.265
Sub-stream: H.265 / MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.265 Type Main Profile
H.265 + Main stream supports
Bit Rate Control CBR / VBR
Scalable Video Coding (SVC) H.265 supports
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP
Protocols TCP / IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP, 802.1x, SSL / TLS, PPPoE
User / Host Up to 32 users
3 levels: Administrator, Operator and User
Network Storage NAS (NFS, SMB / CIFS)
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Day / Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Privacy Mask 4 regions of privacy masks
Interface
Communication Interface 1 RJ45 10M / 100M self-adaptive Ethernet port
Smart Feature-set
Basic Event Motion detection, video tampering, exception
General
Linkage Method Upload to FTP / NAS, notify surveillance center, send email, trigger recording, trigger capture
Firmware Version 5.5.104
Web Client Language 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, hearbeat, password protection, password reset via email
Software Reset Yes
Storage Conditions -30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%
PoE: 802.3af, Type 1 Class 3
Power Consumption and Current 12 VDC, 0.4 A, max. 5 W
PoE (802.3af, 36 V to 57 V), 0.20 A to 0.15 A, max. 6.5 W
Power Interface Ø5.5 mm coaxial power plug
Camera Material Aluminum alloy body
Dimension room Ø110 × 82.4 mm (4.3 "× 3.2")
Package Dimension 134 × 134 × 108 mm (5.3 "× 5.3" × 4.3 ")
Camera Weight Approx. 400 g (0.9 lb.)
With Package Weight Approx. 590 g (1.3 lb.)
Approval
EMC FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014);
RCM (AS / NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1);
CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); BIS (IS 13252 (Part 1): 2010 + A1: 2013 + A2: 2015);
LOA (IEC / EN 60950-1)
Environment CE-RoHS (2011/65 / EU)
WEEE (2012/19 / EU)
Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)

Further details

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
