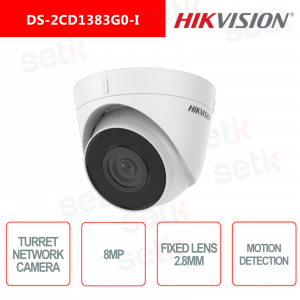

Hikvision DS-2CD1383G0-I IP PoE ONVIF outdoor camera Turret Fixed 8MP 4K ULTRA-HD , 2.8mm fixed lens, 1 / 2.5 "CMOS sensor, H.265 +. Day & Night (ICR), IR illuminator 30M, WDR 120dB , ROI , BLC, 3D DNR, BLC, HLC, AGC, Motion detection , Hik-Connect access, IP67 protection, metal.
FIND INSTALLER
https://www.setik.biz/en/cameras/6926-hikvision-ds-2cd1383g0-i28mm-turret-network-camera-hikvision-28mm-ip67-poe-4k-motion-detection.html
€233.14
€358.68 -35%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
DS-2CD1383G0-I | HIKVISION TURRET IP POE 8 MP 2.8MM OUTDOOR CAMERA H.265 + IR 30 METERS
Hikvision IP PoE Turret Camera
Resolution: 8MP 4K ULTRA-HD 8Megapixel - 2.8mm fixed lens - 1 / 2.5 "CMOS sensor - H.265 +
30M IR Illuminator - Day / Night (ICR) - WDR 120dB - BLC - HLC - ROI - AGC - Motion detection
Power supply NOT included - 24 months warranty
Resolution: 8MP 4K ULTRA-HD 8Megapixel - 2.8mm fixed lens - 1 / 2.5 "CMOS sensor - H.265 +
30M IR Illuminator - Day / Night (ICR) - WDR 120dB - BLC - HLC - ROI - AGC - Motion detection
Power supply NOT included - 24 months warranty
| POE (Power Over Ethernet): The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
| Resolution: This camera features 8MP 4K ULTRA HD resolution in real time! (3840 × 2160pixel) at 25fps 1 / 2.5 ”8Megapixel progressive scan CMOS image sensor
|
| Optics: This camera features 2.8mm fixed lens |
Compression H.265 +
A self-developed intelligent algorithm by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
|
IR Infrared Illuminator: |
| WDR 120dB (Wide Dynamic Range): WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.  |
| ROI (Region Of Interest): The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing me a greater definition of the image.  |
|
Smart features: - Motion detection - video tampering - exception |
| Day / Night: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
| BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
| AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
|
3D- DNR: |
| Diet: A 12V DC power supply is required for the operation of this camera (not included)  |
Data sheet
| DS-2CD1383G0-I (2.8mm) | |
| Room | |
| Image Sensor | 1 / 2.5 "Progressive Scan CMOS |
| Min Illumination | 0.01 Lux @ (F2.0, AGC ON) |
| Shutter Time | 1/3 s to 1 / 100,000 s |
| Slow Shutter |
Yes |
| P / N | P / N |
| Angle Adjustment | Pan: 0 ° to 360 °, tilt: 0 ° to 75 °, rotate: 0 ° to 360 ° |
| Day & Night | IR Cut |
| Wide Dynamic Range | 120 dB |
| Lens | |
| Lens Type & FOV | 2.8 mm, horizontal FOV 102 °, vertical FOV 53 °, diagonal FOV 123 ° |
| Openings | F2.0 |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Video | |
| Max. Image Resolution: |
3840 × 2160 |
| Main Stream | 50Hz: 12.5 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 15 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720) 50Hz: 25 fps (640 × 480 , 640 × 360) |
| Sub Stream: | 50Hz: 25 fps (640 × 480, 640 × 360) 60Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265 + / H.265 Sub-stream: H.265 / MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.265 Type | Main Profile |
| H.265 + | Main stream supports |
| Bit Rate Control | CBR / VBR |
| Scalable Video Coding (SVC) | H.265 supports |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP |
| Protocols | TCP / IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP, 802.1x, SSL / TLS, PPPoE |
| User / Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Network Storage | NAS (NFS, SMB / CIFS) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Day / Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser |
| Privacy Mask | 4 regions of privacy masks |
| Interface | |
| Communication Interface | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Smart Feature-set | |
| Basic Event | Motion detection, video tampering, exception |
| General | |
| Linkage Method | Upload to FTP / NAS, notify surveillance center, send email, trigger recording, trigger capture |
| Firmware Version | 5.5.104 |
| Web Client Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, hearbeat, password protection, password reset via email |
| Software Reset | Yes |
| Storage Conditions | -30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 ° C to 60 ° C (-22 ° F to 140 ° F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% PoE: 802.3af, Type 1 Class 3 |
| Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W PoE (802.3af, 36 V to 57 V), 0.20 A to 0.15 A, max. 6.5 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Camera Material | Aluminum alloy body |
| Dimension room | Ø110 × 81.25 mm (Ø4.3 "× 3.2") |
| Package Dimension | 150 × 150 × 141 mm (5.9 "× 5.9" × 5.6 ") |
| Camera Weight | Approx. 380 g (0.8 lb.) |
| With Package Weight | Approx. 626 g (1.4 lb.) |
| Approval | |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS / NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); BIS (IS 13252 (Part 1): 2010 + A1: 2013 + A2: 2015); LOA (IEC / EN 60950-1) |
| Environment | CE-RoHS (2011/65 / EU) WEEE (2012/19 / EU) Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
Further details
Download
Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
