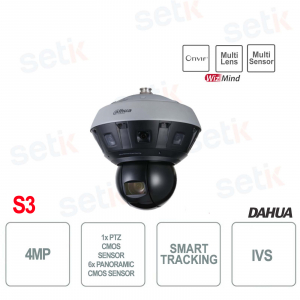

PSDW82442M-A270-D440-S3 Dahua 4 Megapixel WizMind ONVIF Dome camera. Multi sensor (1x PTZ CMOS 1/1.8" and 6x Panoramic 1/1.8") . Panoramic fixed lens 2.8mm, PTZ varifocal lens 5.5-220mm. Panoramic view up to 270 degrees . Smart H.265+/H.264+. 7 LED IR illuminator up to 400M. Day/Night(ICR), 3D NR, HLC, BLC, ROI, Privacy Mask, Defog. Smart tracking, IVS (Intrusion, Tripwire, Perimeter Protection). Crowd maps. Vehicle Density: Upper parking limit, traffic congestion alert. MicroSD slot up to 512 GB. 2 Audio inputs/2 outputs, 7 Alarm inputs/3 outputs. IP66 protection. Dahua Technology
FIND INSTALLER
€5,518.55
€13,139.40 -58%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
WIZMIND PANORAMIC CAMERA + PTZ MULTI-SENSOR 4MP - AUDIO/ALARM - IVS DAHUA
Resolution 8192× 2700 4Megapixel - Multi-sensor (6x 1/1.8" Panoramic + 1x 1/1.8" PTZ) - Panoramic fixed lens 2.8mm - Varifocal PTZ lens 5.5-220mm - IR 7 LED 400M - IVS - Crowd map - Vehicle Density : Upper parking limit, traffic congestion alert - 2 inputs/2 outputs Audio - 7 inputs/3 outputs Alarm - Smart H.265+/H.264+ - ROI - Defog
MicroSD slot up to 512GB - 36V DC power supply (not included) - IP66 - 24 month warranty
Product details
- Overview+PTZ Multi-Sensor ONVIF® - Dahua
- 4Megapixel resolution
- Lens: 6x Fixed Panoramic 2.8mm + 1x Varifocal PTZ
- Multi Sensor : 6x Overview CMOS Sensor 1/1.8" + 1x PTZ 1/1.8"
- Panoramic view up to 270°
- Smart H.265+/H.264+
- Day/Night(ICR), 3D NR, HLC, BLC, ROI
- Privacy Mask, Defog
- 7 LED 400MT IR illuminator
- IVS: Tripwire, Intrusion, Perimeter Protection
- Vehicle Density: Upper parking limit, traffic congestion alert
- Audio: 2 inputs + 2 outputs
- Alarm: 7 inputs + 3 outputs
- MicroSD slot (Max 512GB - not included)
- 36V DC power supply (not included)
- Dimensions Φ383 mm × 462 mm (15.08" × Φ18.19")
- Protection: IP66
- 24 month warranty
Data sheet
| ROOM | |
| Model | PSDW82442M-A270-D440-S3 |
| Room | |
| Image Sensor | Channel 1 (Panoramic): 1/1.8" 4 Megapixel progressive CMOS Channel 2 (PTZ): 1/1.8" 4 Megapixel progressive CMOS |
| Pixels | Channel 1 (Panoramic): 24 MP Channel 2 (PTZ): 4 MP |
| Max.Resolution | Channel 1 (Panoramic): 8192 (H) × 2700 (V) Channel 2 (PTZ): 2560 (H) × 1440 (V) |
| ROM | Channel 1 (Panoramic): 8 GB |
| RAM | Channel 1 (Panoramic): 4 GB |
| Scanning system | Progressives |
| Electronic Shutter | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | Channel 1 (Panoramic): |
| S/N Ratio | > 56 dB |
| Illumination Distance | Channel 1 (Panoramic): No Channel 2 (PTZ): ≥ 400 m (1312.34 ft) |
| Illuminator On/Off Control | Auto/Manual/Zoomprio |
| Illuminator Number | Channel 1 (Panoramic): No Channel 2 (PTZ): 7 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0° to 360° |
| Built-in Battery | Channel 1 (Panoramic): Horizontal welding/lithium battery/3 V |
| Lens | |
| Lens Type | Channel 1 (Panoramic) : Fixed-focal |
| Mount Type | Channel 1 (Panoramic) : M16 |
| Focal Length | Channel 1 (Panoramic) : 2.8 mm |
| Max Openings | Channel 1 (Panoramic) : F1.0 |
| Field of View | Channel 1 (Panoramic): |
| Iris Control | Channel 1 (Panoramic): No |
| Close Focus Distance | Channel 1 (Panoramic): 1.4 m (4.59 ft) |
| Smart Events | |
| IVS | Channel 1 (Panoramic): Yes Channel 2 (PTZ): Yes |
| Intelligence | |
| Intelligence Description | Channel 1 (Panoramic): Perimeter protection, crowd map, vehicle density. Channel 2 (PTZ): Perimeter protection, video metadata, face recognition |
| IVS (Perimeter Protection) | Channel 1 (Panoramic): Tripwire; intrusion; parking detection Channel 2 (PTZ):Tripwire; intrusion; parking detection; crossing virtual fence, fast moving, abandoned object, missing object, crowd gathering, loitering detection |
| Face Recognition | Channel 1 (Panoramic): No Channel 2 (PTZ): Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot) Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 10,000 face pictures. |
| Vehicle Density | Channel 1 (Panoramic):Vehicle density; parking upper limit; traffic congestion alarm Channel 2 (PTZ): No |
| Crowd Distribution Map | Channel 1 (Panoramic):Crowd map, global crowd density; crowd density in area; people counting in area; Channel 2 (PTZ): No |
| Video Metadata | Channel 1 (Panoramic): NA Channel 2 (PTZ): Motor vehicle, non-motor vehicle, face, and human body detection; optimization; capturing pictures; uploading high-quality face snapshots Motor vehicle attributes: License plate, plate color, vehicle type, vehicle color, vehicle logo, vehicle model/year, sun visor, seatbelt., smoking, calling, ornament, and annual inspection sticker. Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat. Human body attributes: Top and bottom type and color, bag, hat, gender, and umbrella. Face attributes: Gender, age, facial expressions, glasses, face mask, and mustache. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codecs | Smart H.264+ Smart H.265+ |
| Video Frame Rate |
Channel 1 (Panoramic) : |
| Stream Capability | 3 streams |
| Resolution | Channel 1 (Panoramic): |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | Channel 1 (Panoramic): |
| Day/Night | Channel 1 (Panoramic): No Channel 2 (PTZ): ICR |
| BLC | Yes |
| HLC | Yes |
| WDR | Channel 1 (Panoramic): 120 dB Channel 2 (PTZ): 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NO |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Default Bit Rate with Default Resolution | Channel 1 (Panoramic): 8192 kb/s (8192 × 2700) Channel 2 (PTZ): 6144 kb/s (2560 × 1440) |
| Region of Interest (RoI) | Channel 1 (Panoramic) : Yes (4 areas) |
| Image Stabilization | Channel 1 (Panoramic): No |
| Defog | Channel 1 (Panoramic): No |
| Privacy Masking | Channel 1 (Panoramic): 4 areas |
| Image Correction | Channel 1 (Panoramic): No |
| Language | English; Italian; Spanish; Russian; French; German; Portuguese; Polish; Korean; Czech; Dutch; Arabic; European Spanish |
| Audio | |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723, G.711a by default |
| Audio Sampling | 8kHz; 16kHz; 32kHz; 48kHz; 64kHz |
| Alarm | |
| Alarm Event | Channel 1 (Panoramic): External alarm; No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering; scene changing; audio detection; intensity change; tripwire; intrusion; parking detection; crowd density; traffic congestion; parking upper limit Channel 2 (PTZ): Tripwire; intrusion; parking detection; crossing virtual fence, fast moving, abandoned object, missing object, crowd gathering, loitering detection; face recognition; video metadata |
| Network | |
| Network | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 (Total bandwidth: 4000M) |
| Storage | Micro SD card (support max. 512GB); NAS; SMB |
| Browsers | IE: IE11 Chrome Firefox |
| Management Software | SmartPSS Lite; DSS |
| Mobile Client | NA |
| PTZ Dome | |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –11° to 90°, auto flip 180° |
| Manual Control Speed | Pan: 240°/s, Tilt: 100°/s |
| Telephoto Speed Limit | Yes |
| Positioning Accuracy | Pan: 0.1° Tilt: 0.1° |
| Positioning Accuracy Automatic Calibration | Yes |
| Remote Lens Reset | Yes |
| Remote PTZ Reset | Yes |
| Presets | 300 |
| Tours | 8 (up to 32 presets per tour) |
| Patterns | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset/Pattern/Tour/Scan |
| Time Task | Yes |
| Three-dimensional Positioning | Yes |
| PTZ Limit | Yes |
| Position Display | Yes |
| Information Display | Yes |
| Time Display | Yes |
| PTZ Restart | Yes |
| Certifications | |
| Certifications | CE-LVD: EN62368-1; |
| Port | |
| USB | NA |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Optical Module Specification | SFP optical module, single mode, single fiber 20 KmTX-1310 nm/RX-1550 nm |
| Optical Fibre | FC |
| Optical Fiber Module Type | Gigabit SFP optical module, single mode, single fiber TX-1550 nm/RX-1310 nm |
| HDMI | NA |
| Audio Input | 2 channels (terminal) |
| Audio Output | 2 channels (terminal) |
| Alarm Input | 7 channels in: 5mA 3V–5V DC |
| Alarm Output | 3 channels out: 1,000mA 30V DC/500mA 50V AC |
| Analog Output | 1 channel (CVBS outputs, NBC port) |
| Power | |
| Power Supply | 36V DC |
| Operating Voltage | 36V DC (±50%) |
| Power Consumption | Basic: 59W (36VDC) |
| Environmental | |
| Operating Conditions | –40°C to +70°C (–40°F to +158°F) |
| Operating Humidity | ≤95% |
| Storage Temperatures | –40°C to +70°C (–40°F to +158°F) |
| Protection Grade | IP66 |
| Structure | |
| Casing | Metal+Plastic |
| Dimensions | Φ383mm × 462mm (15.08" × Φ18.19") |
| Box Dimensions | 500 mm × 500 mm × 658 mm (19.7" × 19.7" × 25.9") (L × W × H) |
| Net Weight | 14.4 kg (31.75 lb) |
| Gross Weight | 20.3 kg (44.75 lb) |
| Installation | Wall mount; ceiling mount; pole mount |
| Power Adapter | Included |
| Lens | Included |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Others | |
| Calibration | Manual/Auto |
Further details
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports the ONVIF® standard |
 | This camera features a resolution of 4 Megapixels! |
 | Multi-Lens Technology! 1x PTZ:5.5-220mm Varifocal |
| Multi-Sensor Technology! This camera is equipped with 6x Panoramic CMOS 1/1.8" 4 Megapixel + 1x PTZ CMOS 1/1.8" 4 Megapixel |
| Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | IR LED illuminator with a range of up to 400 meters! This camera also features SMART IR technology.
|
 | This camera provides VIDEO ANALYSIS functions: - Line crossing - Perimeter protection
|
 | This camera provides advanced intelligent functions : - Crowd Map |
| 2 Inputs + 2 Audio Outputs. |
 | This camera has 7 inputs + 3 alarm outputs |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | Automatic Gain Control, with the possibility of independently adjusting the sensitivity in particular conditions of use  |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations  |
 | 3D-NR is the most advanced version of NOISE REDUCTION management. It allows still images in the presence of low light and in movement. It is currently the most powerful solution for obtaining maximum results in the presence of low light. |
 | Possibility of inserting a Micro SD up to a maximum of 256Gb - not included |
 | IP66: guarantees the impossibility for dust to enter the camera and protection from water jets of any type (e.g. rain)  |
 | A 12V DC power supply is required to operate the camera (not included)  |
 | This product is covered by a 24 month warranty. |
