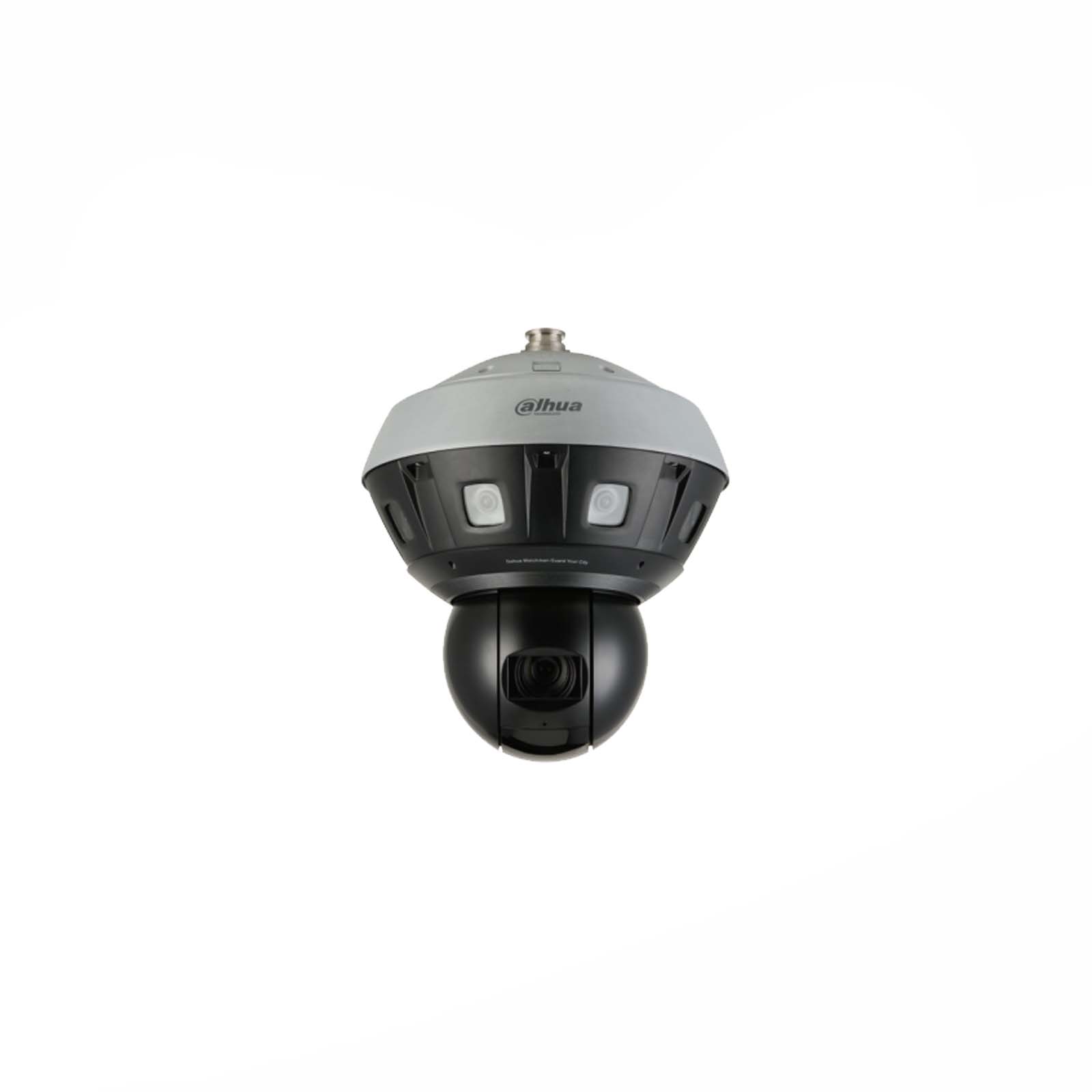

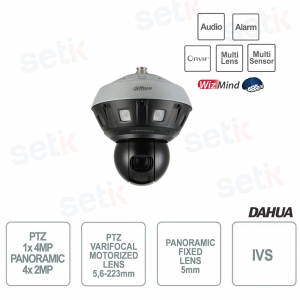

WizMind Dahua Motorized Multi-Sensor Dome Camera

WizMind Dahua Motorized Multi-Sensor Dome Camera
-60%

PSDW8842MP-H-A180-E5-D440 Dahua IP camera ONVIF Dome Morizzata WizMind with Starlight technology. Multi lens (1x PTZ 5,6-223mm Varifocal Motorized with 40x optical zoom + 4x Panoramic 180° 5mm Fixed) and Multi sensor (1x PTZ CMOS 1/1.8" 4MP and 4x Panoramic: 1/1.8" 2MP). It supports Smart H.265+/H.264+ . IR illuminator 7 LEDs 400M. Day/Night(ICR), 1x PTZ WDR 120dB, 1x Panoramic WDR true 120dB, 3D NR, AWB, AGC, BLC, HLC, ROI. IVS (Tripwire, Intrusion). Smart Search, Smart Tracking, Crowd map. 2 Audio inputs/2 Audio outputs, 7 Alarm inputs/3 Alarm outputs. microSD slot up to 512GB. IP66 protection. Dahua Technology



Reference: PSDW8842M-H-A180-E5-D440

Brand: Dahua

FIND INSTALLER

€7,221.15

€18,052.88 -60%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


MULTI-LENS AND MULTI-SENSOR MOTORIZED IP DOME CAMERA (4x PANORAMIC 2MP, 1X PTZ 4MP) - AUDIO/ALARM - IVS - DAHUA

Prodotto Dahua Onvif WizMind Dahua Motorized Multi-Sensor Dome Camera
4x Panoramic 2MP - 1x PTZ 4MP - Multi Lens (1x PTZ 5,6-223mm Varifocal Motorized with 40x optical zoom + 4x Panoramic 180° 5mm fixed) - Multi-sensor (1x 1/1.8" PTZ + 3x 1/1.8" Panoramic ) - IR 7 LED 400M Starlight - IVS - Smart search, Smart Traking, Crowd map - Audio 2 in/2 out - Alarm 7 in/3 out - 1x PTZ WDR 120dB - 1x Panoramic WDR true 120dB - ROI - BLC - AGC - AWB
MicroSD slot - Power supply (not included) - suitable for outdoor environments - 24 month warranty

Product details

Telecamera Multi-Sensor Dome motorizzata WizMind Dahua
  • WizMind Onvif Motorized Multi-Sensor Dome Camera - Dahua
  • Suitable for indoor environments
  • Panoramic Resolution 2 Megapixels, PTZ Resolution 4 Megapixels
  • Multi Lens: 1x motorized varifocal PTZ 5.6-223mm with 40x optical zoom + 4x panoramic 5mm fixed
  • It supports 180° panoramic view
  • Multi Sensor : 1x PTZ CMOS Sensor 1/1.8" + 4x Panoramic 1/1.8"
  • Video Compression up to H.265+/H.264+
  • Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC
  • 1x PTZ WDR 120dB, 1x Panoramic WDR true 120dB
  • Motion Detection, Region Of Interest (ROI), Privacy Mask
  • IR illuminator 7 LED 400MT Starlight
  • IVS (Tripwire, Intrusion)
  • Smart Search, Smart Tracking, Crowd map
  • Audio: 2 inputs + 2 outputs
  • Alarm: 7 inputs + 3 outputs
  • MicroSD slot (Max 512 GB - not included)
  • 36V DC power supply (not included)
  • Dimensions 383 mm × 389.8 mm
  • 24 months warranty

Data sheet

ROOM
model PSDW8842MP-H-A180-E5-D440
panoramic camera
Image Sensor

Panoramic camera: 1/1.8” 2Megapixel progressive CMOS

PTZ camera: 1/1.8”4Megapixel progressive CMOS

Max.Resolution

Panoramic Camera: 4096(H)×1800(V)

Camera PTZ: 2560(H)×1440(V)

ROM

Panoramic camera: 4GB

PTZ camera: 32GB

RAM

Panoramic camera: 8GB

PTZ camera: 4GB

Scan system

Progressives

Electronic Shutter Speed

Panoramic camera: Auto/Manual 1/3s–1/100,000s

PTZ camera: Auto/Manual 1/1s-1/300,000s

Minimum Illumination

Panoramic network camera: 0.001 Lux (Color); 0.0002Lux (B/W)

PTZ camera: 0.001 Lux (Color); 0.0001Lux (B/W); 0 Lux (IR on)

S/N Ratio

Panoramic camera: 56dB

Camera PTZ: 53.6dB

Illumination Distance PTZ camera: ≥ 400m (1312.3ft) (IR LED)
Illuminator On/Off Control Auto / Manual
Illuminator Number PTZ cameras: 7 (IR LEDs)
lens
LensType

Panoramic camera: Fixed-focal

PTZ camera: Motorized vari-focal

Mount Type

Panoramic camera: M12

PTZ camera: Module

Focal Length

Panoramic camera: 5mm

PTZ camera: 5.6mm-223mm, 40x optical zoom

Max. Openings

Panoramic camera: F2.0

PTZ camera: F1.3

Field of View

Panoramic room:

Horizontal: 180° - Vertical: 84°

PTZ Camera:

Horizontal: 2.27°–61.40° - Vertical: 1.30°–35.99° - Diagonal: 2.62°–68.18°

Iris type

Panoramic Camera: Fixed

Camera PTZ: Auto

Close Focus Distance

Panoramic camera: 1.2m (3.9ft)

PTZ camera: 0.5m (1.6ft)

Smart Events
IVS Intrusion, tripwire
Professional, intelligent
Crowd Distribution Map crowd distribution map; global people counting; peop
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub streams)
Smart Codecs Smart H.265+/ Smart H.264+
Video Frame Rate

Panoramic room:

Main stream: 4096 × 1800 @1–25/30 fps;

sub stream 1: 1920 × 832 @1–25/30 fps;

sub stream 2: 4800 × 1920 @1–25/30 fps

PTZ Camera:

Main stream: 2560 × 1440 @1–25/30 fps;

sub stream 1: 704 × 480 @1–25/30 fps;

sub stream 2: 1920 × 1080 @1–25/30 fps

Stream Capability 3 streams
Resolution

Panoramic Camera: 4096×1800; 4800×1920; 3840×1680; 3200×1280; 2880×1264; 2048×900; 1920×832; 1600×640; 1280×560; 1024×452

Camera PTZ: 2560×1440; 2048×1536; 1920×1080; 1280×960; 1280×720; 704×576; 704×480; 352×288; 352×240

Bit Rate Control

Panoramic camera: CBR/VBR

Camera PTZ: CBR/VBR

Video Bit Rate

Panoramic camera: H.264: 256Kbps–25599Kbps H.265: 196Kbps–15494Kbps

PTZ camera: H.264: 184kbps–15104kbps H.265: 110kbps–9216Kbps

Day/Night Auto(ICR)/Color/B/W
BLC extension

Yes

HLC extension Yes
wdr extension

Panoramic camera: True WDR:120dB

PTZ Camera: WDR (120dB)

Scene Self-adaptation (SSA)

Yes

White Balance

Panoramic camera: Auto/Natural/Street lamp/Outdoor/Manual/Regional custom

PTZ camera: Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp

Gain Control Auto/Manual
Noise reduction 3D NO
motion detection OFF/ON (4 areas)
Region of Interest (RoI)

Panoramic camera: Yes (4 areas)

Camera PTZ: Yes (4 areas)

Electronic Image Stabilization (EIS) Camera PTZ: Yes
Smart Lighting Camera PTZ: Yes
defog Camera PTZ: Yes
Privacy Masking

Panoramic room: 4 areas

PTZ camera: 8 areas

Audio
Audio Compression G.711A; G.711Mu; G.726
alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scenes changing; audio detection and external alarm.
Network
SDKs and APIs Yes
Network RJ-45 (10/100/1000Base-T)
protocol HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; smtp; FTP; DHCP; DNS; DDNS; PPPOE;IPv4/v6; SNMP; QoS; UPnP; NTP extension
Cyber Security video encryption; firmware encryption; configuration encryption; digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and import of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrades
Interoperability ONVIF® (Profile G/T/S); CGI
User/Host 20 (Total bandwidth: 600M)
Storage FTP; SFTP; Micro SD card (support max. 512G); NAS
Browsers

IE:IE7 and earlier

Chrome: 42 and earlier

Firefox: 52 and earlier

Safari: 11 and earlier

management software EVS; NVRs; M70; DSS; Milestone; Genetec
smart phones iOS; android
PTZ Dome
pan range

Pan: 0° to 360° endless

Tilt: –12° to 90°, auto flip 180

Manual Control Speed

Pan: 0.1°/s–240°/s

Tilt: 0.1°/s–100°/s

Remote Lens Reset Yes
Remote PTZ Reset Yes
Presets 300
Tours 8 (up to 32 presets per tour)
Patterns 5 patterns
Scan 5 autoscan
Power-off Memory Yes
Idle motion Presets/Patterns/Tours/Scan
Time Tasks Yes
3D Positioning Yes
PTZ Limit Yes
Position Display Yes
Information Display Yes
Time Display Yes
Others Yes
Certifications
Certification

CE-LVD:EN62368-1

CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU

FCC:47 CFR FCC Part 15, Subpart B

UL/CUL:UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port
Audio inputs 2 channels (terminal)
Audio Outputs 2 channels (terminal)
Alarm Inputs 7 channels in: 5mA 3V–5V DC
Alarm Output 3 channels out: 300mA 12V DC
Power
Power Supply 36V DC
power consumption Basic power consumption: 50.7WWW Max. power consumption (WDR + H.265 + IR LED intensity): 77.7W
environment
Operating Conditions –40°C to +70°C (-40°F to 158°F)
Operating Humidity ≤95%
Strorage Conditions 5°C –40°C (41°F–104°F) (The temperature difference of each day is within 15°C /59°F.)
Protection Grade IP66
structure
Casing Metal + plastic

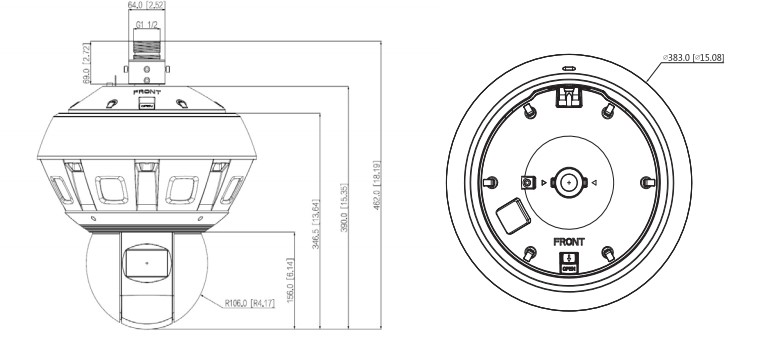

Dimensions Φ383mm × 389.8mm (Φ15.1" × 15.3")
Net Weight 14.30kg (31.5lb)
Gross Weight 19.50kg (43.0lb)

Further details

ONVIF®

Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera supports the ONVIF® standard

Multi-Lens Technology!
This camera is equipped with multi-lens:

1x PTZ: 5.6-223mm motorized varifocal with 40x optical zoom
4x Pan: 5mm fixed




Multi-Sensor Technology!

This camera is equipped with 5x 1/1.8" CMOS sensors with STARLIGHT technology.

Low brightness, color vision even in night mode

Normally, when entering night mode, the color vision becomes black/white.

With SENSOR present, night shots will be in color


Below are two examples of night vision both in the presence of total darkness and in the presence of artificial lights

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Illuminatore IR da 15mt

IR Illuminator 7 LEDs and range up to 400 meters!

This camera features VIDEO ANALYSIS functions:

- Line crossing
- Intrusion

Attraversamento linea Tripwire video analisi

This camera has advanced intelligent functions :

- Intelligent Search
- Crowd distribution map
- Smart Tracking

Interfaccia audio

2 Inputs + 2 Audio Outputs.

Questa telecamera presenta ingressi e uscite allarme This camera has 7 inputs + 3 alarm outputs
Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Icon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Example Day/Night function
ICR extension

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
Icon Function Automatic Gain Control Automatic Gain Control, with the possibility of autonomously adjusting the sensitivity in particular conditions of use
Example Automatic Gain Control function

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations

Funzione High Light Compensation HLC (High Light Compensation) allows greater light management, in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.
esempio funzione HLC High Light Compensation
3D-DNR 3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light.
MicroSD recording

Possibility to insert Micro SD up to a maximum of 512Gb - not included

12VDC_Supply A 36V DC power supply is required for camera operation (not included)
Protezione IP66 contro polvere e getti d'acqua IP66: Guarantees protection from dust and water jets (rain)
Italian Guarantee icon This product is covered by a 24 month guarantee.
