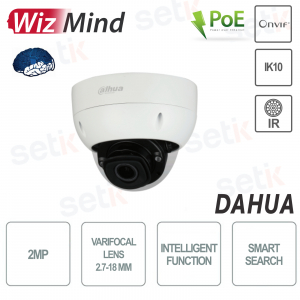

IPC-HDBW5242HP-ZE-MF Dahua Onvif PoE outdoor IP camera, with Artificial Intelligence , 2 Megapixel , 1 / 1.8 "CMOS sensor, 2.7-18mm motorized lens, compression up to H.265 + . Smart IR 3 LED 5 0MT illuminator , Day / Night (ICR), WDR 140dB , HLC, BLC, 3D DNR. Defog, EIS, Privacy Mask, Perimeter protection, Motion Detection, people counting, smart search, Face detection , Heat Map , ROI, MicroSD slot , IP67 / IK10 protection
FIND INSTALLER
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
ONVIF® POE OUTDOOR IP CAMERA - 2 MOTORIZED MEGAPIXELS - ARTIFICIAL INTELLIGENCE WIZMIND - DAHUA
|
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- Onvif PoE AI external IP camera - Dahua
- 2Megapixel resolution
- 2.7-18mm varifocal lens with motorized zoom
- 1 / 1.8 ”CMOS sensor
- Video compression up to H.265 +
- Triple Stream
- WDR 140dB - Day / Night (ICR) - 3DNR, AWB, AGC, BLC, ROI,
- Smart IR 3 LED 5 0MT illuminator
- Artificial Intelligence : Perimeter Protection, Intrusion (Vehicle / Human Detection), People Counting, Smart Search, Face Detection
- Micro SD memory slot (Up to 256GB - not included)
- IP67 / IK10 protection (indoor / outdoor)
- Material: Metal
- Power supply NOT included
- 24 months warranty
Data sheet
| Room | IPC-HDBW5242HP-ZE-MF |
| SYSTEM | |
| Image Sensor | 1 / 1.8 "CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM / RAM | 128MB / 1GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1/3 s – 1 / 100,000 s |
| Min. Illumination | 0.003 Lux@F1.8 (Color, 30IRE) 0.0003 Lux@F1.8 (B / W, 30IRE) 0 Lux (Illuminator on) |
| S / N Ratio | ? 56 dB |
| Illumination Distance | 50 m (164 ft) (IR LED) |
| Illuminator On / Off Control | Auto / manual |
| Illuminator Number | 3 IR LEDs |
| Pan / Tilt / Rotation Range | Pan: 0 ° -355 ° Tilt: 0 ° –80 ° Rotation: 0 ° –355 ° |
| Lens | |
| Lens Type | Motorized vari-focal |
| AI Mount Type | φ14 |
| Focal Length | 2.7 mm – 18 mm |
| Max. Aperture | F1.8 |
| Field of View | Horizontal: 107 ° –33.9 ° Vertical: 69 ° –19 ° Diagonal: 134 ° –38.8 ° |
| Iris Type | Car |
| Close Focus Distance | W / T: 1.2m (3.9ft) |
| Smart event | |
| IVS | Abandoned object; missing object |
| Heat Map | Yes |
| Professional, intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
| Face Detection | Face detection; track; optimization; snapshot; high quality picture report; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting |
| People Counting | Support the counting of enter number, leave number and pass number, and displaying and outputting yearly / monthly / daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm. |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265 + / H.264 + |
| Video Frame Rate | Main stream: 1920 × 1080 (1 fps – 50/60 fps) Sub stream: D1 (1 fps – 50/60 fps) Third stream: 1080p (1 fps – 25/30 fps) * The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 32 kbps – 8192 kbps H.265: 32 kbps – 8192 kbps |
| Day / Night | Auto (ICR) / Color / B / W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto / natural / street lamp / outdoor / manual / regional custom |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF / ON (4 areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Electronic Image Stabilization (EIS) | Yes |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0 ° / 90 ° / 180 ° / 270 ° |
| Mirror | Yes |
| Privacy mask | 4 areas |
| Audio | |
| Audio compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; Full SD card; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in the area; stay alarm; people No. exception detection; queue management |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP / MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF® (Profile S / Profile G / Profile T); CGI; Milestone; Genetec; P2P |
| User / Host | 20 (Total bandwidth: 80M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE8 and later Chrome Firefox Safari: Safari 12 and later |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | CE-LVD: EN62368-1, EN60950-22 (optional) CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU FCC: 47 CFR FCC Part 15, Subpart B UL / CUL: UL60950-1 CAN / CSA C22.2 No.60950-1-07, UL 50E NEMA Type 4X (optional) |
| Port | |
| Audio Input | 1 channel (terminal) |
| Audio Output | 1 channel (terminal) |
| Alarm Input | 3 channels in: 5mA 3V – 5V DC |
| Alarm Output | 2 channels out: 300mA 12V DC |
| Power | |
| Power Supply | 12V DC (± 25%) / 24V AC (± 30%) / PoE (802.3af) / ePoE |
| Power Consumption | Basic power consumption: 3.6W (12V DC); 3.1W (24V AC); 4.4W (PoE) Max. Power consumption (H.265 + max. Stream + intelligent function + IR LED + focus): 11.7W (12V DC); 11.3W (24V AC); 11.9W (PoE) |
| Environment | |
| Operating Conditions | –30 ° C to + 60 ° C (–22 ° F to + 140 ° F) / Less than 95% RH |
| Strorage Conditions | –40 ° C to + 60 ° C (–40 ° F to + 140 ° F) |
| Protection Grade | IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional) |
| Structure | |
| Casing | Metal |
| Dimension | 129.1 mm × Φ157.9mm (5.1 "× Φ6.2") |
| Net Weight | 1500.0 g (3.3 lb) |
| Gross Weight | 1600.0 g (3.5 lb) |
Further details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
|
|
AI | Artificial intelligence - Perimeter protection: Intrusion, Line crossing (classification of people & vehicles) - People counting - Smart search - Heat Map - Face detection
|
|
|
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
This camera features a 1 / 1.8 "CMOS sensor with a 2 Megapixel resolution! |
 |
2.7-18mm varifocal lens with motorized zoom Motorized zoom example: |
 |
Quality 3 LED IR illuminator for better night vision. |
 |
ULTRA WDR up to 140dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 |
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
This camera is equipped with the ROI function. The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 |
BLC (Back Light Compensation) It is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
 |
Protection level IP67 (Dust / Diving) |
 |
IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
|
 |
Possibility to insert Micro SD up to a maximum of 256Gb - not included |
 |
Power supply NOT included  |
 |
This product is covered by a 24 month warranty. |
