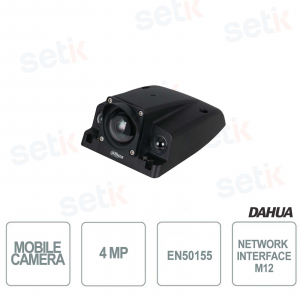

IPC-MBW4431-M12 Dahua IP camera for vehicles Onvif PoE, Resolution 2688x1520 4 Megapixel , 1/3" CMOS sensor, 2.8mm fixed lens, 16x digital zoom, video compression up to H.265+ . Triple stream , Smart IR 2 LED 30 meters ICR, OSD, AWB, AGC, BLC, HLC, WDR real 120dB, 3D-DNR, 4 ROI zones Mirror mode, Privacy Mask IVS (Line Crossing Detection, Intrusion, Abandoned/Lost Objects) Facial Recognition Interface M12 network connection, D-coding 1 Alarm input MicroSD slot up to 128 GB 3 Axis EN50155 shock and vibration proof IP67, IK10, IP6K9K protection Dahua Technology .
FIND INSTALLER
€273.11
€650.26 -58%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
OUTDOOR IP CAMERA FOR ONVIF® POE VEHICLES - 4 MEGAPIXELS - IVS - FACIAL RECOGNITION - DAHUA
Mobile IP Camera ONVIF® PoE - Dahua4 Megapixel resolution - 2.8mm lens - 1/3" CMOS - Compression up to H.265+ - M12 network interface, D-coding
Smart IR 2 LEDs 30M - Day/Night (ICR) - WDR 120dB - 1 Alarm input - 4 ROI zones - Privacy Mask - Shock and vibration proof EN50155
IVS and Facial Recognition - IP67, IK10, IP6K9K protection - Power supply NOT included
Product details
- Mobile IP camera for outdoor vehicles Onvif PoE - Dahua
- Resolution 2688x1520 4 Megapixels ,
- 2.8mm fixed lens
- 1/3" CMOS sensor
- Video compression up to H.265+
- Triple Stream
- 16X digital zoom
- ICR filter
- OSD, AWB, AGC, BLC, HLC, Real WDR (120dB), 3D-DNR
- 4 ROI zones, Mirror Mode, Privacy Mask
- IVS: Line Crossing Detection, Intrusion, Abandoned/Lost Object Detection
- Facial recognition
- M12 network interface, D-coding
- Alarm : 1 Entry
- Micro SD memory slot (Up to 128GB - not included)
- EN50155 shock and vibration proof
- IP67, IK10, IP6K9K protection
- Material: Metal
- Power supply NOT included
- 24 months warranty
Data sheet
| model | IPC-MBW4431-M12 | |
| Room | ||
| Image Sensor | 1/3” 4Megapixel progressive scan CMOS | |
| Effective Pixels | 2688(H) x 1520(V) | |
| RAM/ROM | 512MB/32MB | |
| Scanning System | Progressives | |
| Electronic shutter speed | Auto/Manual, 1/3~1/100000s | |
| Min Illumination | 0.08Lux/F2.0( Color,1/3s,30IRE) 0.3Lux/2.0(Color,1/30s,30IRE) 0Lux/F2.0(IR on) | |
| S/N Ratio | More than 50dB | |
| IR Distance | Distance up to 30m (98ft) | |
| IR On/Off Control | Auto/ Manual | |
| IR LEDs | 2 | |
| lens | ||
| LensType | Fixed | |
| Mount Type | Board-in | |
| Focal Length | 2.8mm | |
| Max. Openings | F2.0 | |
| angle of view | management software | SmartPSS, DSS, Easy4ip |
| Smartphones | iOS, Android | |
| Certifications | ||
| Certifications | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B E-mark(ECE-Regulation No.10) EN50155(Environment) | |
| interface | ||
| Video interface | N/A | |
| audio interface | 1 | |
| RS485 | N/A | |
| alarm | 1 channel In: 5mA 5VDC | |
| Electrical | ||
| Power Supply | PoE (802.3af)(Class 0) | |
| power consumption | <6.5W | |
| environmental | ||
| Operating Conditions | -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH | |
| Storage Conditions | -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH | |
| Ingress Protection | IP67,IP6K9K | |
| Vandal Resistance | IK10 | |
| Construction | ||
| Casing | Metal | |
| Dimensions | 140.6mm×112.9mm×69.4mm (5.53”×4.44”×2.73”) | |
| Net Weight | 0.59Kg (1.3lb) | |
| Gross Weight | 0.8Kg (1.76lb) | |
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible |
EN50155: EN50155 is a European standard for railway applications - electronic equipment used on rolling stock. The mobile camera meets the requirements of EN50155 standard , which enables the camera to withstand harsh conditions such as vibration, shock, to meet vehicle monitoring needs. | |
| SHOCKPROOF - EN50155 Vibration is unavoidable in mobile installations. In order to avoid image or connection errors, the hardware structure of the mobile camera is impact resistant with the certification of EN50155 . Besides, the mobile camera adopts M12 aviation connector for stable connection with MCVR.  |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | This camera has a resolution of 4Megapixel: Image sensor 1/3” CMOS |
 | This camera has a fixed 2.8mm lens |
 | Main Stream: 4M(1~25/30fps) Sub Stream: D1(1~25/30fps) Third Stream: 720P(1~25/30fps) |
| Smart IR Illuminator 2 LEDs 30 meters |
 | This camera features SMART DETECTION: - Line crossing - Intrusion
|
 | This camera has advanced intelligent functions : - Face detection |
 | This camera has 1 alarm input |
 | WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | Automatic Gain Control, with the possibility of autonomously adjusting the sensitivity in particular conditions of use  |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations  |
| The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: AWB, AGC, ATW, 3D-DNR, etc. |
 | HLC (High Light Compensation) allows greater light management, in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.  |
 | 3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.  |
 | Possibility to insert Micro SD up to a maximum of 128Gb - not included |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 | Protection level IP67 ( Dust / Immersion ) |
 |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 | Power supply NOT included  |
 | This product is covered by a 24 month guarantee. |
