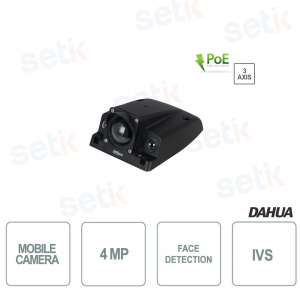

IPC-MBW4431-AS Dahua Onvif PoE Vehicle IP Camera , Resolution 2688x1520 4 Megapixel , 1/3 "CMOS sensor, 2.8mm fixed lens, compression up to H.265 + . Triple stream, ICR, AWB, AGC, BLC, HLC, WDR 120dB, 3D-DNR, 4 ROI zones. Mirror mode, Privacy Mask. IVS (Line Crossing Detection, intrusions, abandoned / lost objects). Smart IR 2 Led 30 meters . Face recognition. 1 entry / 1 exit Alarm, 1 entry / 1 Audio output. MicroSD slot up to 128 GB. IP67, IK10, IP6K9K protection. Dahua Technology .
FIND INSTALLER
€286.11
€650.26 -56%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
MOBILE IP CAMERA - 4 MEGAPIXELS - SMART IR 30M - IVS - FACIAL RECOGNITION - DAHUA
Onvif PoE Vehicle IP Camera - Dahua4Megapixel resolution - 2.8mm fixed lens - 1/3 "CMOS - Compression up to H.265 +
Smart IR 2 LED 30M - Day / Night (ICR) - WDR 120dB - Audio / Alarm - 4 ROI zones - mcroSD slot up to 128 GB
IVS - Face recognition - IP67 and IK10 protection - Power supply NOT included
Product details
- Onvif PoE Mobile IP Camera - Dahua
- Resolution 2688x1520 4 Megapixel @ 25 ips
- 2.8mm fixed lens (104 °)
- 4MP 1/3 ” CMOS sensor
- Triple Stream
- Video compression up to H.265 +
- ICR filter
- AWB, AGC, BLC, HLC, WDR 120dB, 3D-DNR, 4 ROI zones, mirror, video sensor and privacy masks
- Smart IR 2 LED 30MT illuminator
- IVS: Line Crossing Detection, intrusions, abandoned / lost objects
- Facial recognition
- Audio : 1 Input + 1 Output
- Alarm : 1 inputs + 1 output
- Micro SD memory slot (Up to 128GB - not included)
- IP67, IK10, IP6K9K protection
- Power supply NOT included
- 24 months warranty
Data sheet
| Model | IPC-MBW4431-AS |
| Room | |
| Image Sensor | 1/3 ”4Megapixel progressive scan CMOS |
| Effective Pixels | 2688 (H) x 1520 (V) |
| RAM / ROM | 512MB / 32MB |
| Scanning System | Progressive |
| Electronic Shutter speed | Auto / Manual, 1/3 ~ 1 / 100000s |
| Min. Illumination |
0.08Lux / F2.0 (Color, 1 / 3s, 30IRE) 0.3Lux / 2.0 (Color, 1 / 30s, 30IRE) 0Lux / F2.0 (IR on) |
| S / N Ratio | More than 50dB |
| IR Distance | Distance up to 30 m (98 ft) |
| IR On / Off Control | Auto / Manual |
| IR LEDs | 2 |
| Lens | |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8 mm |
| Max. Aperture | F2.0 (F2.0, F2.0) |
| Angle of View | Horizontal :: 104 °; vertical: 55 °; diagonal: 125 ° |
| Optical Zoom | N / A |
| Focus Control | Fixed |
| Close Focus Distance | N / A |
| Interface | |
| Video Interface | N / A |
| Audio Interface | 1/1 channel In / Out |
| RS485 | N / A |
| Alarm |
1 channel In: 5mA 5VDC 1 channel Out: 300mA 12VDC |
| Eletrical | |
| Power Supply | DC12V, PoE (802.3af) (Class 0) |
| Power Consumption | <6.5W |
| Environmental | |
| Operating Conditions | -40 ° C ~ + 70 ° C (-40 ° F ~ + 158 ° F) / Less than 95% RH |
| Storage Conditions | -40 ° C ~ + 70 ° C (-40 ° F ~ + 158 ° F) / Less than 95% RH |
| Ingress Protection | IP67, IP6K9K |
| Vandal Resistance | IK10 |
| Construction | |
| Casing | Metal |
| Dimensions | 140.6mm × 112.9mm × 69.4mm (5.53 "× 4.44" × 2.73 ") |
| Net Weight | 0.59Kg (1.3lb) |
| Gross Weight | 0.8Kg (1.76lb) |
Further details
|
EN50155: EN50155 is a European standard for railway applications - electronic equipment used on rolling stock. The mobile camera meets the requirements of EN50155 standard , which allows the camera to withstand harsh conditions such as vibration, shock, to meet vehicle monitoring needs.
|
|
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
|
|
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
This camera has a resolution of 4Megapixels: 1/3 ”CMOS image sensor |
 |
This camera features a 2.8mm fixed lens |
 |
Main Stream:: 4M (1 ~ 25 / 30fps) Sub Stream: D1 (1 ~ 25 / 30fps) Third Stream: 720P (1 ~ 25 / 30fps) |
 |
Infrared illuminator with approximate maximum range of 30Mt |
 |
This camera provides VIDEO ANALYSIS (IVS): - Line crossing recognition - Intrusion recognition - Recognition of lost and abandoned objects |
 |
This camera has advanced intelligent functions : - Face Detection
|
 |
This camera has 1 audio input + 1 audio output |
 |
This camera has 1 inputs + 1 alarm output |
 |
WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
Automatic Gain Control, with the possibility of independently adjusting the sensitivity in particular conditions of use  |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
 |
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
This camera is equipped with the ROI function. The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 |
Protection level IP67 (Dust / Diving) |
 |
IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
|
 |
Possibility to insert Micro SD up to maximum 128Gb - not included |
 |
Power supply NOT included  |
 |
This product is covered by a 24 month warranty. |
