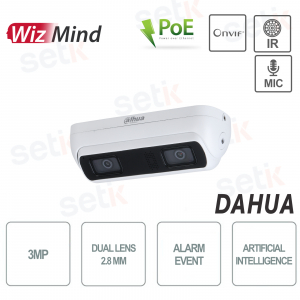

IPC-HDW8341X-BV-3D AI 3 Megapixel Onvif PoE Dual Lens IP Camera with Artificial Intelligence, face detection and people counting, 2.8mm dual lens and 1 / 2.8 "CMOS serore. H.265 +, BLC, HLC, DWDR , AGC, 3D NR, RS-485, Defog, motion detection , ROI, smart illumination up to 20m, built-in speaker and microphone , 2x audio input + 1x output , 2x alarm input + 2x output. IP67 and IK10, micro SD slot
FIND INSTALLER
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
OUTDOOR IP CAMERA ONVIF® POE 3MP ARTIFICIAL INTELLIGENCE - SPEAKER - DAHUA
|
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- Outdoor AI IP PoE Camera ONVIF® - Dahua
- Resolution 3 Megapixel 3MP
- Dual lens : Two 2.8mm fixed lenses
- Dual sensor : 2 1 / 2.8 " CMOS sensors
- Artificial Intelligence : People Counting (Line crossing - Perimeter - Face detection)
- Video Compression up to H.265 + (Smart Codec)
- Smart IR illuminator up to 20MT
- Day / Night (ICR), BLC, HLC, DWDR , AGC, Defog
- Motion Detection, ROI (Region of interest)
- ONVIF® standard
- Integrated speaker
- MicroSD slot (Max 128GB)
- Audio: 2 inputs + 1 output, integrated microphone
- Alarm: 2 inputs + 2 outputs
- IP67 protection (Dust / Immersion) - outdoor camera
- Material: metal
- Dimensions: 204.0mm × 78.0mm × 61.5mm (8.0 "× 3.1" × 2.4 ")
- 24 months warranty
Data sheet
| Model | IPC-HDW8341X-BV-3D | |
| Room | ||
| Image Sensor | 1 / 2.8 ”3Megapixel progressive CMOS | |
| Max resolution | 2048 (H) × 1536 (V) | |
| ROM / RAM | 4GB / 2GB | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto / Manual 1/3 s – 1 / 100,000 s | |
| Min. Illumination | 0.005 Lux@F1.6 (Color, 30IRE) 0.0005 Lux@F1.6 (B / W, 30IRE) 0 Lux (Illuminator on) |
|
| S / N Ratio | > 56 dB | |
| Illumination Distance | 20 m (IR) (65.6 ft) | |
| Illuminator On / Off Control | Auto / Manual | |
| Illuminator Number | 1 (IR LED) | |
| Pan / Tilt / Rotation Range | Tilt: 0 ° –70 ° | |
| Lens | ||
| Lens Type | Fixed-focal | |
| Mount Type | M12 | |
| Focal Length | 2.8mm | |
| Max. Aperture | F1.6 | |
| Field of View | Horizontal 96 ° × Vertical 70 ° × Diagonal 128 ° | |
| Iris Type | Fixed | |
| Close Focus Distance | 0.7 m (2.3 ft) | |
| Smart event | ||
| IVS | Abandoned object; missing object | |
| Professional, intelligent | ||
| IVS (Perimeter Protection) | Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), loitering detection, people gathering, parking detection | |
| Face Detection | Face detection; track; optimization; snapshot; high quality picture report; face enhancement; face exposure; face attribute extract, 6 attributes and 5 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, surprise), mask, beard; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting | |
| Stereo Analysis | Fall detection; people approaching detection; people No. error; stay detection; violence detection | |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. | |
| Video | ||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | |
| Smart Codec | Smart H.264 + Smart H.265 + |
|
| Video Frame Rate | Main stream: 3MP (1–25 / 30 fps) Sub stream: D1 (1–25 / 30 fps) Third stream: 2MP (1–25 / 30 fps) Fourth stream: 2MP (1–25 / 30 fps) Fifth stream: D1 (1–25 / 30 fps) |
|
| Stream Capability | 5 streams | |
| Resolution | 3M (2048 × 1536); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); 640 × 480 (VGA) | |
| Bit Rate Control | CBR / VBR | |
| Video Bit Rate | H.264: 3 kbps – 17664 kbps H.265: 3 kbps – 17664 kbps |
|
| Day / Night | Auto (ICR) / Color / B / W | |
| BLC | Yes | |
| HLC | Yes | |
| WDR | DWDR | |
| White Balance | Auto / natural / street lamp / outdoor / manual / regional custom | |
| Gain Control | Auto / Manual | |
| Noise Reduction | 3D NR | |
| Motion Detection | OFF / ON (4 areas, rectangular) | |
| Region of Interest (RoI) | Yes (4 areas) | |
| Smart Illumination | Yes | |
| Defog |
Yes |
|
| Privacy Masking | 4 areas | |
| Audio | ||
| Built-in MIC | Yes | |
| Audio Compression | G.711a; G.711Mu; G.726; G.723 | |
| Built-in Speaker | Yes | |
| Alarm | ||
| Alarm Event | No SD card; Full SD card; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; people counting exception detection; fall detection; people approaching detection; violence detection; stay detection; safety exception | |
| Network | ||
| Network | RJ-45 (10/100 Base-T) | |
| SDK and API | Yes | |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP / MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour | |
| Interoperability | ONVIF® (Profile S / Profile G / Profile T); CGI; Milestone; Genetec; P2P; RTMP | |
| User / Host | 20 | |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS | |
| Browser | IE9; IE11; FireFox; Chrome | |
| Management Software | Smart PSS; DSS; NVR; IVSS | |
| Mobile Phone | IOS; Android | |
| Certification | ||
| Certification | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU FCC: 47 CFR FCC Part 15, Subpart B UL / CUL: UL60950-1 CAN / CSA C22.2 No.60950-1-07 |
|
| Port | ||
| RS-485 | 1 (baud rate range: 1200 bps – 115200 bps) | |
| Audio Input | 2 channels (RCA port) | |
| Audio Output | 1 channel (RCA port) | |
| Alarm Input | 2 channels in: 5mA 3V – 5V DC | |
| Alarm Output | 2 channels out: 1,000mA 30V DC / 500mA 50V DC | |
| Power | ||
| Power Supply | 12V DC / PoE; ePoE | |
| Power Consumption | Basic power consumption: 3.5W (12V DC); 4.4W (PoE) Max. Power consumption (ICR switch + IR full intensity + WDR + Intelligent functions enabled): 9.1W (12V DC); 10.6W (PoE) |
|
| Environment | ||
| Operating Conditions | -40 ° C to + 60 ° C / Less than 95% RH | |
| Storage Temperature | –40 ° C to + 60 ° C (–40 ° F to + 140 ° F) | |
| Ingress Protection | IP67; IK10 | |
| Structure | ||
| Casing | Metal | |
| Dimensions | 204.0 mm × 78.0 mm × 61.5 mm (8.0 "× 3.1" × 2.4 ") (L × W × H) |
|
| Net Weight | 0.81 kg (1.8 lb) | |
| Gross Weight | 1.19 kg (2.6 lb) | |
Further details
 |
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
|
|
AI | Artificial intelligence In detail, it detects and counts the number of people passing through a specific area . ( COUNTERPERSON ). - Line crossing : The people count will start when a previously set line is crossed. - Perimeter crossing : The people count will start when they enter a previously set area. - Face detection |
|
|
Dual-Sensor Technology!
|
|
|
Dual-Lens and Dual Sensor technology |
 |
Resolution 3MP, means 8 times the resolution of a common D1 camera! |
|
|
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
Quality IR illuminator with white LEDs and maximum range up to 2 0 meters This camera is also equipped with SMART IR technology. |
 |
This Camera with 2 Alarm Inputs and 2 Outputs |
|
|
This camera has 2 inputs + 1 audio output Also incorporated a microphone and speaker! |
 |
This camera is equipped with the ROI function. The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 |
This camera features the Motion function by connecting it to a recording device having alarm inputs. |
 |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  |
 |
HLC (High Light Compensation) allows greater light management, in the presence of direct light (cars, torches, etc ...). It also prevents attempts to blur the image.  |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
Possibility to insert Micro SD up to a maximum of 128Gb |
 |
Protection level IP67 (Dust / Diving) |
 |
IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
|
 |
This product is covered by a 24 month warranty. |
