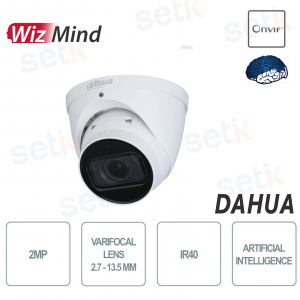

WizMind EyeBall Dome Camera Artificial Intelligence 2MP Sensor 2.7-13.5 mm Optical Onvif Poe IR40 IP67

WizMind EyeBall Dome Camera Artificial Intelligence 2MP Sensor 2.7-13.5 mm Optical Onvif Poe IR40 IP67
-58%

IPC-HDW5241T-ZE AI WizMind Onvif PoE outdoor camera with artificial intelligence, 2 Megapixel 1920x1080 (30fps), 1 / 2.8 "CMOS sensor, 2.7-13-5mm varifocal lens, IR LED maximum range 40Mt, ROI, H.265 + /H.264+, Day / Night (ICR), AWB, AGC, BLC, HLC, 3D-DNR, WDR, EIS, defog, privacy mask, heat map , video analytics , face detection, intrusion, people count, search smart, IVS, built-in microphone , IP67.



Reference: IPC-HDW5241T-ZE

Brand: Dahua

FIND INSTALLER

€263.89

€628.30 -58%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


EYEBALL WIZMIND IP NETWORK CAMERA - 2MP RESOLUTION - 2.7-13.5 MM OPTICS - ARTIFICIAL INTELLIGENCE - DAHUA

Made by Setik
IPC-HDW5241T-ZE - AI WizMind Onvif PoE outdoor camera with artificial intelligence
2 Megapixel 1920x1080 (30fps), 1 / 2.8 "CMOS sensor, 2.7-13-5mm varifocal lens
IR LED maximum range 40Mt, ROI, H.265 + / H.264 +
Day / Night (ICR), AWB, AGC, BLC, HLC, 3D-DNR, WDR, EIS, defog, privacy mask
Heat Map, Video Analysis, Face Detection, Intrusion, People Counting, Smart Search, IVS, Built-in Microphone, IP67.
24 month warranty - Power supply not included

Product details

- WizMind IP Camera - DAHUA
- Type: Eyeball camera.
- Onvif, PoE
- Resolution: 1920 (H) × 1080 (V)
- 2.7 mm-13.5 mm lens
- 1 / 2.8 ”2Megapixel progressive scan CMOS image sensor
- H.265 + / H.264 +
- Functions: DWDR, Day / Night (ICR), 3DNR, AWB, AGC, BLC, ROI
- Smart functions: intrusion, person count, smart search, heat map
- Built-in microphone
- Quality IR illuminator with a maximum range of 40 meters.
- IP67 protection (Dust / Diving)
- Material: Metal
- 12V DC power supply not included
- Suitable for outdoor and indoor environments
- 24 months warranty

Data sheet

Model IPC-HDW5241T-ZE
Room
Image Sensor 1 / 2.8 ”2Megapixel progressive CMOS
ROM / RAM 128MB / 512MB
Max. Resolution 1920 (H) × 1080 (V)
Scanning System Progressive
Electronic Shutter Speed Auto / Manual 1/3 s – 1 / 100,000 s
Min. Illumination 0.002 Lux @ F1.5
S / N Ratio > 56 dB
Illumination Distance 40 m (131.2 ft) (IR LED)
Illuminator On / Off Control Auto / Manual
Illuminator Number 2 (IR LED)
Pan / Tilt / Rotation Range Pan: 0 ° -360 °
Tilt: 0 ° -78 °
Rotation: 0 ° –360 °
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7mm-13.5mm
Max. Aperture F1.5
Field of View Horizontal: 109 ° –30 °
Vertical: 57 ° –17 °
Diagonal: 131 ° –35 °
Iris Type Car
Close Focus Distance 0.8 m (2.6 ft)
Professional, Intelligent
IVS (Perimeter Protection) Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face Detection Face detection; track; optimization; snapshot; high quality picture report; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo;
three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting
People Counting Support the counting of enter number, leave number, and pass number, and displaying and outputting yearly / monthly / weekly / daily reports.
Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.
Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm
Intelligent search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H265 + / H264 +
Video Frame Rate Main stream: 1080p (1 fps – 25/30 fps)
Sub stream: D1 (1 fps – 25/30 fps)
Third stream: 1080p (1 fps – 25/30 fps)
Streaming Capability 3 Streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)
Bit Rate Control CBR / VBR
Video Bit Rate H.264: 32 kbps – 8192 kbps
H.265: 19 kbps – 8192 kbps
Day / Night Auto (ICR) / Color / B / W
BLC Yes
HLC Yes
WDR 120dB
Scene Self-adaptation Yes
White Balance Auto / natural / street lamp / outdoor / manual / regional custom
Gain Control Auto / manual
Noise Reduction 3D DNR
Motion Detection OFF / ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Electronic Image Stabilization (EIS) Yes
Smart Illumination Yes

Defog

Yes
Image Rotation 0 ° / 90 ° / 180 ° / 270 ° (Support with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G.726; AAC; G.723
Alarm
Alarm Event No SD card; Full SD card; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; tripwire; intrusion; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; audio detection; people counting; face detection; voltage detection; people counting in the area; stay alarm; people No. exception detection, queue management
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Interoperability ONVIF® (Profile S / Profile G / Profile T); CGI; Milestone; Genetec; P2P
User / Host 20 (Total bandwidth: 80M)
Storage FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Browser IE: IE8 and later
Chrome
Firefox
Safari: Safari 12 and later
Management Software Smart PSS, DSS, DMSS
Mobile Phone IOS; Android
Certification
Power Supply CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU
FCC: 47 CFR FCC Part 15, Subpart B
UL / CUL: UL60950-1 CAN / CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC (± 30%) / PoE (802.3af)
Power Consumption <6.9W
Environment
Operating Conditions –30 ° C to + 60 ° C (–22 ° F to + 140 ° F) / Less than 95% RH
Strorage Conditions –40 ° C to + 60 ° C (–40 ° F to + 140 ° F)
Protection Grade

IP67

Structure
Casing Inner core: Metal
Cover: Metal
Decoration ring: Plastic Decoration ring
Dimension Φ122.0 mm × 108.3 mm (Φ4.8 "× 4.3")
Net weight 740 g (1.6 lb)
Gross Weight 910 g (2.0 lb)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera is ONVIF® compatible

protocollo epoe

protocollo epoe Dahua's ePoE technology, designed in-house, adopts advanced 2D-PAM3 modulation from the physical layer and realizes full duplex transmissions over 800 meters at the speed of 10 Mbps, or 300 meters at the speed of 100 Mbps via Cat 5 or coaxial cable.

Dahua ePoE technology offers a new way to realize long distance transmission between IP camera and network switch. It allows for more flexible surveillance system design, improves reliability, and saves construction and wiring costs.

AI | Artificial intelligence
This camera features Artificial Intelligence on board

- Face detection

- Intrusion / line crossing alarm

- People counting

- Smart search

AI Camera - Cattura del volto

Codifica video Smart H.265+

Smart H.265 +

Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network.

Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Questa telecamera ha una risoluzione FULL HD di 1920x1080

This camera features a resolution of 2Megapixel 1080P FULL HD

Ottica varifocale

This camera features 2.7 - 13.5 mm varifocal lens

Illuminatore IR LED

Quality IR illuminator for better night vision.
Maximum range 4 0 meters

This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the framed object.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Funzione ROI This camera is equipped with the ROI function.

The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
DEFOG Function Icon It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Ingresso Audio This camera has a built-in microphone
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256Gb - not included

12V 3A power supply Power supply NOT included
12V DC power supply
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English brochure




All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
