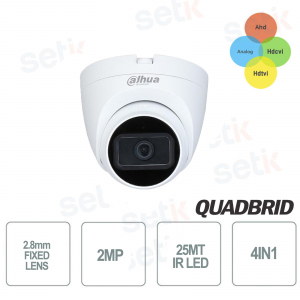

Dahua Outdoor surveillance camera HAC-HDW1231TRQ-A with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG switchable Dome 2Megapixel 2 MP , 3.6mm fixed lens and 1 / 2.8 "CMOS sensor. 25M IR LED illuminator, Audio, Day / Night (ICR), BLC, HLC, WDR 130dB, plastic
https://www.setik.biz/en/cameras/6867-dahua-hac-hdw1231trq-a-dahua-2-mp-hybrid-4in1-video-surveillance-camera-1-ir-led-36-mm.html
€40.50
€101.26 -60%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
VIDEO SURVEILLANCE CAMERA 2 MEGAPIXEL 3.6MM 4IN1- DAHUA TECHNOLOGY
HD camera - Dahua4in1: HDCVI / HDTVI / AHD / ANALOG - 2Megapixel 2 MP - Fixed Lens 3.6mm - CMOS 1 / 2.8 "
25M IR LED Illuminator - Day / Night (ICR) - Audio - BLC / HLC / WDR 130 dB
Power supply NOT included - 24 months warranty
Product details
- Dahua dome video surveillance camera
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG switchable
- 2Megapixel 2 MP resolution
- 3.6mm fixed lens
- 1 / 2.8 " CMOS image sensor
- 3.6mm fixed lens
- 1 / 2.8 " CMOS image sensor
- Smart IR 1 LED 25M illuminator
- Day / Night (ICR), BLC / HLC / WDR 130dB / AGC
- Video Output: 1 Channel BNC High Definition / CVBS video output (interchangeable)
- Material: Plastic
- Material: Plastic
- Dimensions Φ97.1 mm × 93.0 mm
- 12V ± 30% DC power supply not included
- Suitable for indoor and outdoor environments
- 24 months warranty
- 12V ± 30% DC power supply not included
- Suitable for indoor and outdoor environments
- 24 months warranty
Data sheet
| Model | HAC-HDW1231TRQ-A |
| Room | |
| Image Sensor | 1 / 2.8 "CMOS |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Pixel | 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed |
PAL: 1/25 s – 1 / 100,000 s |
| Min. Illumination | 0.005 Lux / F1.6 30IRE, 0 Lux IR on |
| S / N Ratio |
> 65 dB |
| Min. Illumination |
0.002 Lux / F1.6, 30 IRE, 0 Lux IR on |
| IR Distance | 25 m （82.0 ft) |
| IR On / Off Control | Car; manual |
| IR Leds | 1 (IR Light) |
| Pan / Tilt / Rotation Range | Pan: 0 ° -360 ° Tilt: 0 ° -78 ° Rotation: 0 ° –360 ° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 3.6 mm |
| Max openings | F1.6 |
| Field of view | H: 86 °; V: 46 °; D: 101 ° |
| Close Focus Distance |
1.1 m |
| Video | |
| Frame Rate | CVI: PAL: 1080P @ 25fps; NTSC: 1080P @ 30fps; AHD: PAL: 1080P @ 25fps; NTSC: 1080P @ 30fps; TVI: PAL: 1080P @ 25 fps; NTSC: 1080P @ 30fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H |
| Resolution | 1080P (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day / Night | Auto switch by ICR |
| BLC | BLC / WDR / HLC |
| WDR | 130 dB |
| White Balance | Car; manual |
| Gain Control | Car; manual |
| Noise Reduction | 3D NR |
| Smart IR | Yes |
| Mirror | Off / On |
| Privacy Masking | Off / On (8 area, rectangle) |
| Certifications | |
| Certifications |
CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 + CAN / CSA C22.2 No.60950-1) |
| Port | |
| Video Output |
Video output choices of CVI / TVI / AHD / CVBS by one BNC port |
| Audio Input |
One channel built-in mic |
| Electrical | |
| Power Supply |
12V ± 30% DC |
| Power Consumption |
Max 2.8 W (12V DC, IR on) |
| Environmental | |
| Operating Conditions |
–40 ° C to + 50 ° C (–40 ° F to 122 ° F); <95% (non-condensation) |
| Storage Conditions |
–40 ° C to + 50 ° C (–40 ° F to 122 ° F); <95% (non-condensation) |
| Construction | |
| Casing |
Plastic throughout the whole casing |
| Dimensions |
Φ97.1 mm × 93.0 mm (Φ3.82 "× 3.66") |
| Net Weight |
0.17 kg (0.37 lb) |
| Gross Weight |
0.23 kg (0.51 lb) |
Further details
 |
This camera is a QUADRIBRID (4 Integrated Technologies) These cameras are at the same time Analogue , Ahd , Hdcvi and Hdtvi .    |
 |
This camera features 2 Megapixel 1080P FULL HD resolution |
 |
This camera features a fixed 3.6mm lens |
 |
IR illuminator with 2 LEDs and approximate range of 25 meters
|
 |
Allows you to adapt the lens to Night / Day vision
|
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations |
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
ULTRA WDR up to 130dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 |
DC12V power supply NOT included in the package.  |
 |
This camera was made of plastic |
 |
This product is covered by a 24 month warranty. |
