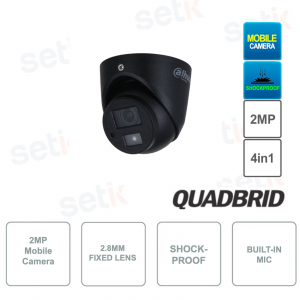

HAC-HDW3200G-M-S5 - Mobile dome camera for vehicles - 4in1 - 2MP - 2.8mm lens - Smart IR 20m - Microphone - Shockproof

HAC-HDW3200G-M-S5 - Mobile dome camera for vehicles - 4in1 - 2MP - 2.8mm lens - Smart IR 20m - Microphone - Shockproof
-56%

Dahua HAC-HDW3200G-M-S5 Mobile dome camera for vehicles - 4in1 (CVI / CVBS / AHD / TVI Switchable) - Resolution 2MP - 2.8mm fixed lens and 2MP 1 / 2.7 "CMOS sensor - Smart IR illuminator 1 LED 20M - Day / Night (ICR) - OSD menu, BLC, HLC, D-WDR, 2D-NR, Mirror Mode - Privacy Mask 8 zones - Integrated microphone - Black color - IP67 protection and shockproof.



Reference: HAC-HDW3200G-M-S5

Brand: Dahua

EAN: 6939554994203

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DAHUA CAMERA - 4IN1 - MOBILE DOME FOR VEHICLES - 2MP - 2.8MM LENS - CMOS SENSOR - SMART IR 20M - IP67 - S5 VERSION - SHOCKPROOF

Prodotto Dahua
Mobile dome camera for vehicles - S5 version - Dahua - HAC-HDW3200G-M-S5
4in1 (CVI / CVBS / AHD / TVI) - 2MP FULL HD resolution - 2.8mm fixed lens. - 1 / 2.7 "2MP CMOS sensor - 1 LED 20M IR illuminator - Day / Night (removable ICR) - BLC, HLC, Digital WDR, 2D-NR, Mirror Mode - Privacy Masks on 8 zones - AGC - AWB - Multi OSD menu -Language - Built-in microphone - IP67 - - Shockproof protection - Power supply NOT included - Dimensions : Ø62 x 61.7 (Al) mm - Weight: 170g - Metal case - 24 months warranty

Product details

DAHUA-2748 | Mobile dome (vehicles) PRO series 4 in 1 with Smart IR of 20 m for outdoors. CMOS 1 / 2.7
- Mobile Dome Camera (vehicles) - Dahua - HAC-HDW3200G-M-S5
- S5 version
- 4in1 (CVI / CVBS / AHD / TVI) switchable with aviation connector
- FULL HD 1080P 2MP resolution
- 2.8mm fixed lens
- 2MP 1 / 2.7 "CMOS image sensor
- Multi Language OSD Menu
- Smart IR 1 LED 20m illuminator
- Day / Night, BLC / HLC / DWDR / AGC
- Viewing angle: 101 ° (H), 54 ° (V), 119 ° (D)
- Built-in microphone
- Material: Metal
- Operating temperature: -40 ° C ~ + 60 ° C
- Dimensions: Ø62 x 61.7 (Al) mm
- Weight: 170g
- IP67 protection
- Shockproof protection (according to EN50155 standard)
- Color: black
- 12V DC power supply not included
- 24 months warranty

Data sheet

Vibration resistancecertifies en50155Aviation connector

SHOCKPROOF - EN50155

Vibration is unavoidable in mobile installations.

In order to avoid image or connection errors, the hardware structure of the mobile camera is impact resistant with the certification of EN50155 .

In addition, the mobile camera adopts M12 aviation connector for stable connection with MCVR.

Dettaglio Connettore aviation
HAC-HDW3200G-M-S5

Technical Speci? Cation

Room

Image Sensor

1 / 2.7 inch CMOS

Max. Resolution

1920 (H) x 1080 (V)

Pixel

2MP

Scanning System

Progressive

Electronic Shutter
Speed

PAL: 1/25 s – 1/100000 s NTSC: 1/30 s – 1/100000 s

S / N Ratio

> 65 dB

Min. Illumination

0.02 Lux / F2.0, 30IRE, 0 Lux IR on

Quadruple hybrid technology This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time Analogue , Ahd , HDCVI and HDVI .

1080P HDCVI Bullet Camera HAC-HDW3200G-S5

This camera features a resolution of 2Megapixel 1080P

2MP 1 / 2.7 "CMOS sensor.

Ottica fissa 3.6mm

This camera features a 2.8mm fixed lens

Illuminatore IR fino a 30mt

Infrared illuminator with 1 LED and approximate maximum range of 20MT

This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the framed object. SmartIR.jpg

OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day / Night sensitivity, Shutter speed, White balance, light compensation and much more ...

The OSD menu is multi-language and can be managed both via the DVR and the UTC Controller (not included)

This camera has a built-in microphone

This camera has a built-in microphone.

Allows you to adapt the lens to Night / Day vision

BLC (Back Light Compensation) is one of the 3 possible Steps in managing images with Contrast, typical situations are (Entering or exiting car parks, Plaques, Particular lights, Entrances with shots from inside to outside, etc.) the compensation of light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations


Click to enlarge

AGC_Camera AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.
2D-DNR 2D-NR manages NOISE REDUCTION. Allows still images in low light and in motion. It is currently the most powerful solution for obtaining maximum results in low light conditions.

D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

12VDC_Aliment DC12V power supply NOT included in the package.
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Download

Download the English brochure
