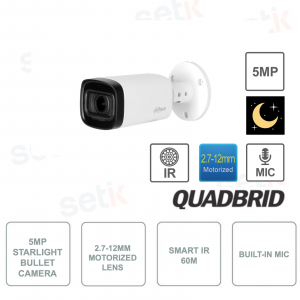

HAC-HFW1500R-Z-IRE6-A-POC-S2 - Dahua - 5MP Starlight Bullet Camera - 4in1 - 2.7–12 mm Lens - Smart IR
HAC-HFW1500R-Z-IRE6-A-POC-S2 - Dahua - Video surveillance camera with Starlight technology - 5MP - 4in1 CVI / CVBS / AHD / TVI switchable - 2.7-12mm motorized lens - Built-in microphone - IP67 protection - PoC (CVI only) - Metal case.
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
STARLIGHT 5 MEGAPIXEL BULLET CAMERA - 2.7-12MM MOTORIZED LENS - 4IN1 - IR 60MT - S2 VERSION - DAHUA - HAC-HFW1500R-Z-IRE6-A-POC-S2
Bullet camera with Starlight technology - Dahua HFW1500R-Z-IRE6-A-POC-S2
5Megapixel resolution 2880 × 1620 (@ 25fps max) - 4in1: CVI / CVBS / AHD / TVI switchable - 2.7-12mm motorized Varifocal lens - 1 / 2.7 "5MP CMOS sensor - 60 Meters IR illuminator - 4 illuminators - Smart IR - Day / Night (ICR) - BLC - DWDR - Auto / manual white control - AGC - 2D DNR - Integrated microphone - Mirror Mode - Privacy Masking - PoC (CVI only) - Power supply not included - IP67 protection (Dust / Immersion) - Warranty 24 months
Product details
- Dahua HAC-HFW1500R-Z-IRE6-A-POC-S2 Starlight Bullet Camera
- S2 version
- Resolution 5 Megapixel (Max 25fps)
- Motorized 2.7-12mm Varifocal lens
- 1 / 2.7 "CMOS image sensor
- It supports long distance transmissions
- Day / Night (ICR), BLC, AWB, DWDR, AGC
- Multilanguage OSD menu
- Quality Smart IR illuminator, with maximum range up to 60m (4 illuminators)
- Built-in microphone
- IP67 protection (Dust / Immersion)
- Material: Metal Case
- 12V DC power supply (not included)
- PoC (CVI only)
- Dimensions: 209.9mm × 90.4mm × 90.4mm
- Net weight of the product: 0.55 Kg
- 24 months warranty
Data sheet
| Model | HAC-HFW1500R-Z-IRE6-A-POC-S2 | ||||
|
Technical Specification |
|||||
|
Room |
|||||
|
Image Sensor |
1 / 2.7 inch CMOS |
||||
|
Max. Resolution |
2880 (H) × 1620 (V) |
||||
|
Pixel |
5MP |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
PAL: 1/25 s – 1 / 100,000 s NTSC: 1/30 s – 1 / 100,000 s |
||||
|
S / N Ratio |
> 65 dB |
||||
|
Min. Illumination |
0.005 Lux / F1.6, 30IRE, 0 Lux IR on |
||||
|
Illumination Distance |
60 m (196.9 ft) |
||||
|
Illuminator On / Off Control |
Car; manual |
||||
|
Illuminator Number |
4 |
||||
|
Pan / Tilt / Rotation Range |
Pan: 0 ° –360 ° Tilt: 0 ° –90 ° Rotation: 0 ° –360 ° |
||||
| Lens | |||||
|
Lens Type |
Motorized vari-focal |
||||
|
Auto Focus |
N / A |
||||
|
Mount Type |
φ14 |
||||
|
Focal Length |
2.7 mm – 12 mm |
||||
|
Max. Aperture |
This camera has a resolution of 5Megapixels : Image sensor 1 / 2.7 ”5Megapixel progressive scan CMOS |
||||
 |
CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode With this CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color
|
||||
 |
This camera features 2.7-12mm varifocal lens with motorized zoom Video Example: |
||||
 |
Infrared illuminator with DOT LEDs (larger) with an approximate range of about 60 meters
|
||||
 |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  |
||||
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
||||
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
||||
 |
AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. | ||||
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
||||
 |
ATW (Auto Tracing White Balance) refers to a modern technology that automatically and continuously adjusts the color balance of the camera according to the color temperature. ATW is a more advanced feature than AWB (Auto White Balance), and is very important as without it, images could be completely unusable. Possibility to adjust the color balance also manually (MWB) |
||||
 |
|
||||
 |
Protection level IP67 (Dust / Diving) |
||||
 |
This camera needs 12V DC power supply for operation. Power supply NOT included!  |
||||
 |
This product is covered by a 24 month warranty. | ||||
